3-66

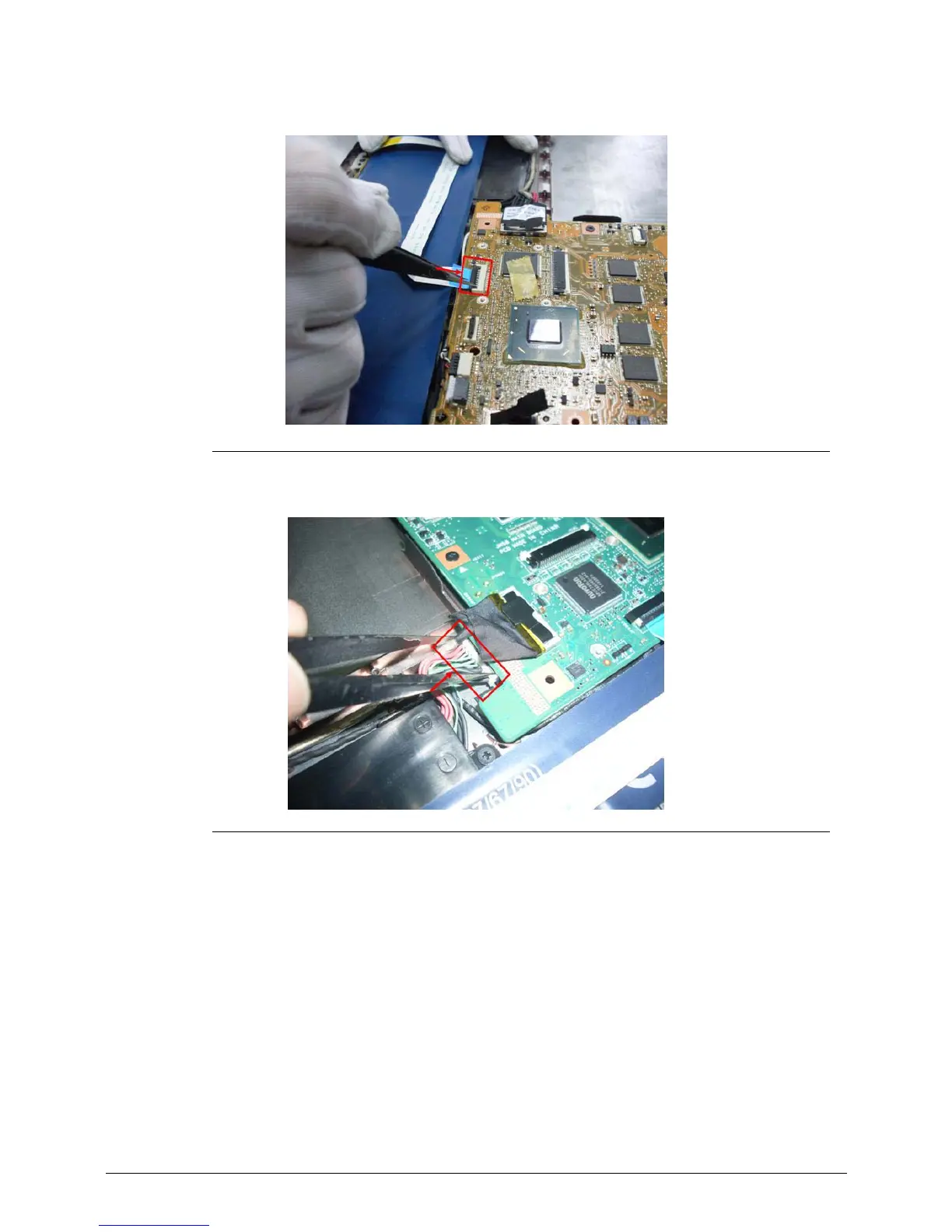

6. Connect the power switch cable on the main board.
Figure 3-106. Power switch cable
7. Connect the Battery cable to the main board.
Figure 3-107. Battery cable
