Removing the LCD Bezel
1. See “Removing the Battery Pack” on page 60.
2. See “Removing the Lower Cover” on page 62.
3. See “Removing the DIMM” on page 63.
4. See “Removing the WLAN Board Modules” on page 64.
5. See “Removing the Middle Cover and the Power Board” on page 74.
6. See “Removing the Keyboard” on page 76.
7. See “Removing the LCD Module” on page 78.

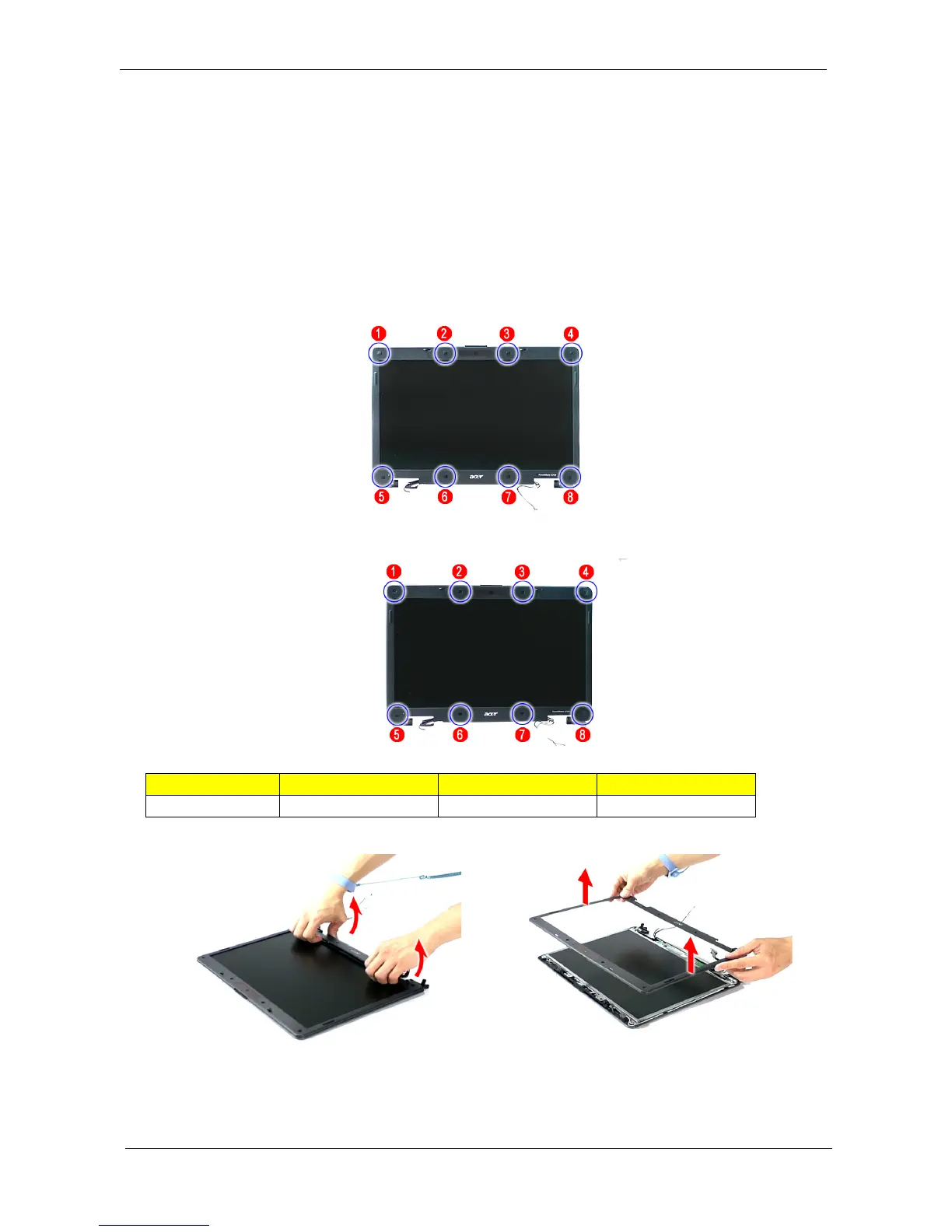

8. Remove the four upper bezel screw caps and the four lower bezel caps.
9. Remove the eight screws (A) on the LCD module in the order as shown.
10. Carefully pry open the LCD bezel and remove the bezel from the LCD module.
Step Size (Quantity) Color Torque
1~8 M2.5 x L6 (8) Black 3.0 kgf-cm
