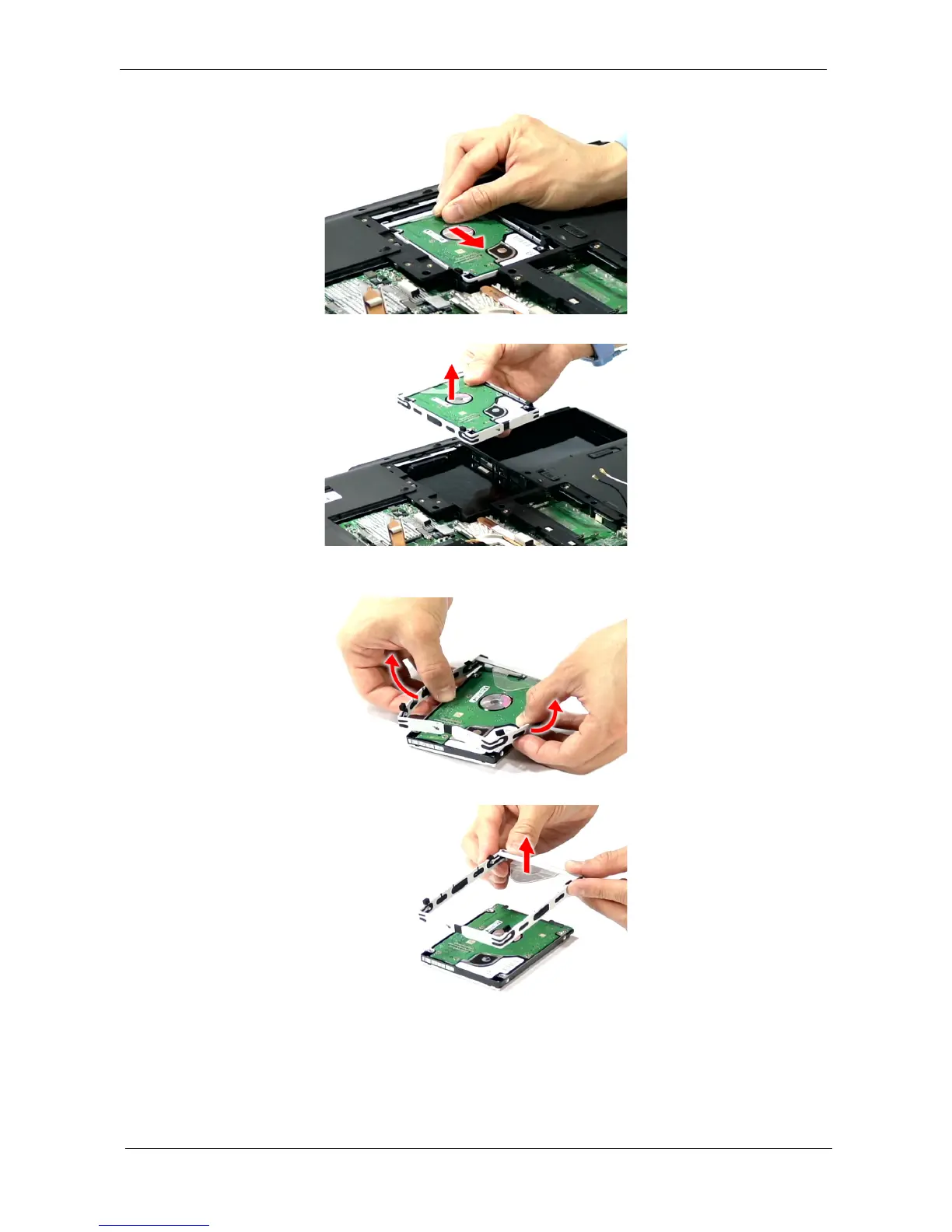

6. Disconnect the hard disk module from the connector by pulling on the mylar tab on the hard disk module.
7. Remove the hard disk module.
NOTE: To prevent damage to device, avoid pressing down on it or placing heavy objects on top of it.
8. Remove the hard disk from the hard disk rubber enclosure as shown.
Removing the Optical Drive Module
1. See “Removing the Battery Pack” on page 60..

Acer Extensa 5220 Series Specifications

General

Display	15.4" WXGA (1280 x 800) TFT LCD
Optical Drive	DVD-Super Multi double-layer drive
Operating System	Windows Vista Home Basic
Processor	Intel Celeron M 530
RAM	512 MB DDR2
Storage	80 GB HDD
Graphics	Intel Graphics Media Accelerator (GMA) X3100
Battery	6-cell Li-ion
Weight	2.8 kg
Wireless	802.11b/g
LAN	10/100 Mbps Ethernet
Ports	3x USB 2.0, VGA, headphone/speaker/line-out jack, microphone-in jack
