Acer Extensa 5220 Series Service Guide

58 Chapter 3
General Information

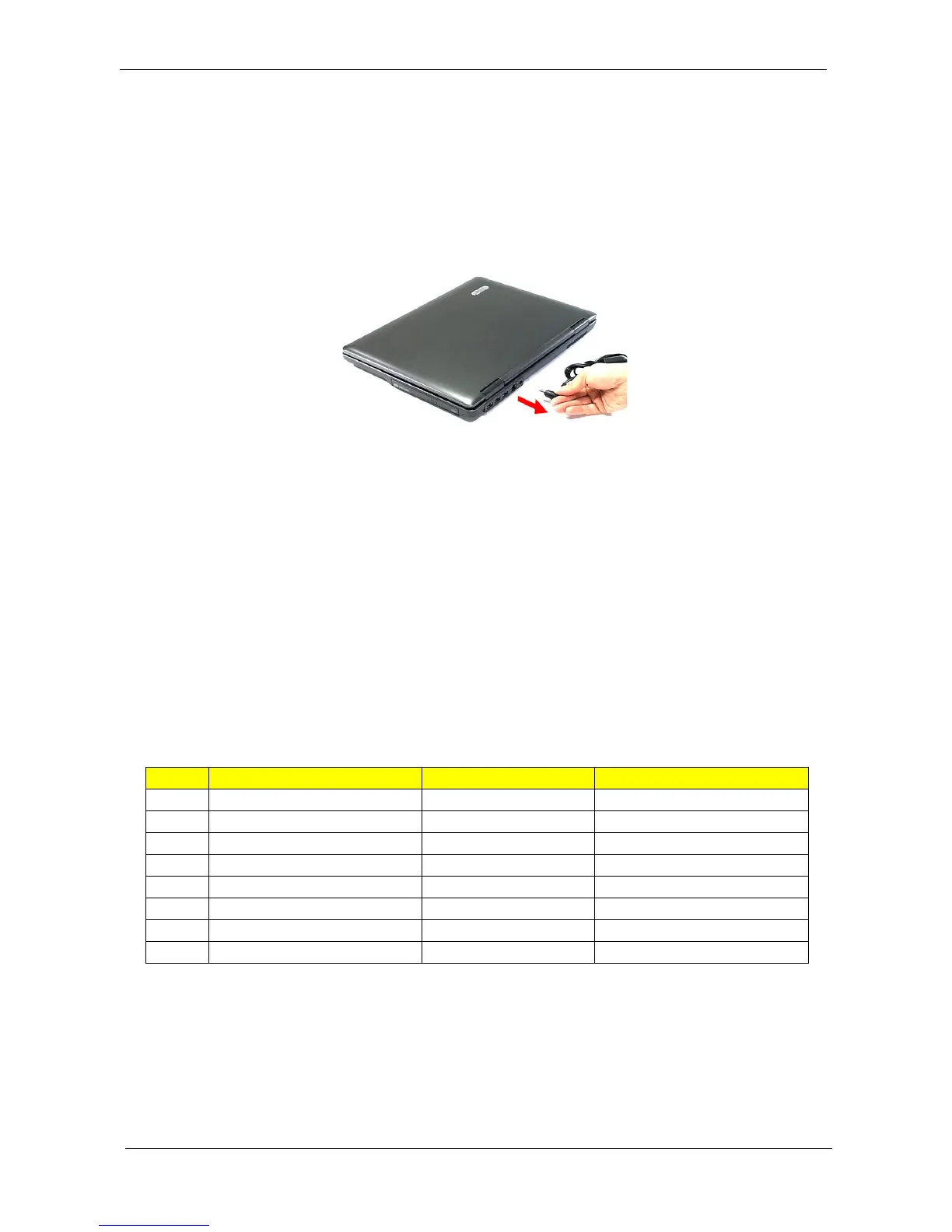

Pre-disassembly Instructions
Before proceeding with the disassembly procedure, make sure that you do the following:
1. Turn off the power to the system and all peripherals.
2. Unplug the AC adapter and all power and signal cables from the system.
3. Place the system on a flat, stable surface.
4. Remove the battery pack.
Disassembly Process
The disassembly process is divided into the following stages:
• External module disassembly
• Main unit disassembly
• LCD module disassembly
The flowcharts provided in the succeeding disassembly sections illustrate the entire disassembly sequence.
Observe the order of the sequence to avoid damage to any of the hardware components. For example, if you
want to remove the main board, you must first remove the keyboard, then disassemble the inside assembly
frame in that order.
Main Screw List
Item Screw Color Part No.
A M2.5 x L6 Black 86.00E33.736
B M2 x L4 Black 86.00A02.140
C M2 x L4 Silver 86.9A552.4R0
D M2.5 x L5 Silver 86.00E74.335
E M2.5 x L5 Black 86.00F87.735
F M2 x L3 Silver 86.00C07.220
G M2.5 x L6 Silver 86.9A544.4R0
H M2.5 x L8 Black 86.00E34.738

Acer Extensa 5220 Series Specifications

General

Display	15.4" WXGA (1280 x 800) TFT LCD
Optical Drive	DVD-Super Multi double-layer drive
Operating System	Windows Vista Home Basic
Processor	Intel Celeron M 530
RAM	512 MB DDR2
Storage	80 GB HDD
Graphics	Intel Graphics Media Accelerator (GMA) X3100
Battery	6-cell Li-ion
Weight	2.8 kg
Wireless	802.11b/g
LAN	10/100 Mbps Ethernet
Ports	3x USB 2.0, VGA, headphone/speaker/line-out jack, microphone-in jack
