Chapter 5 121

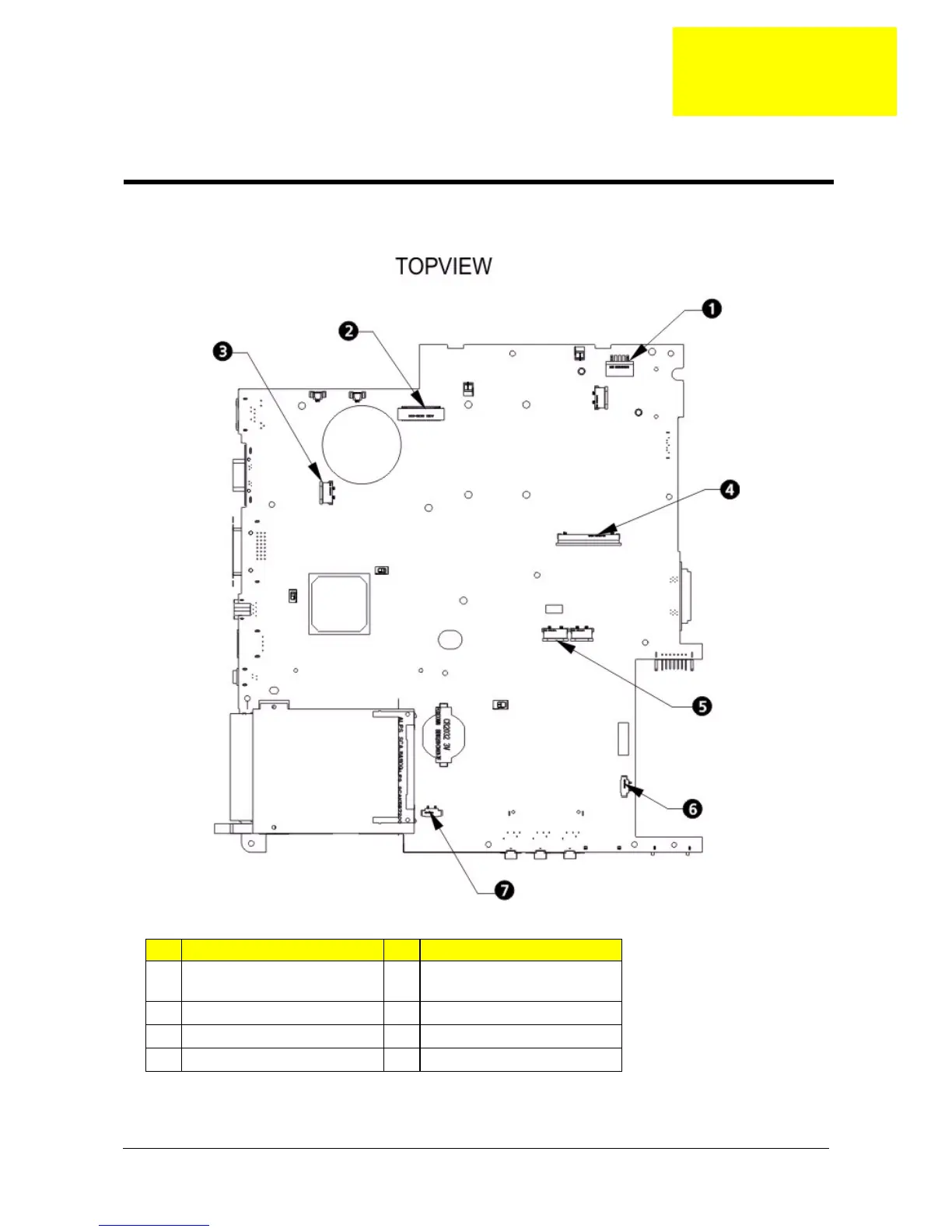

Top View
No. Description No. Description
1 Power Cable Connector 5 Fingerprint/Touchpad
Connector
2 LCD Cable Connector 6 Bluetooth Connector
3 Touchpad Board Connector 7 Speaker Connector
4 Keyboard Connector
Jumper and Connector Locations
Chapter 5
