Acer Extensa 5220 Series Service Guide

Chapter 1 7

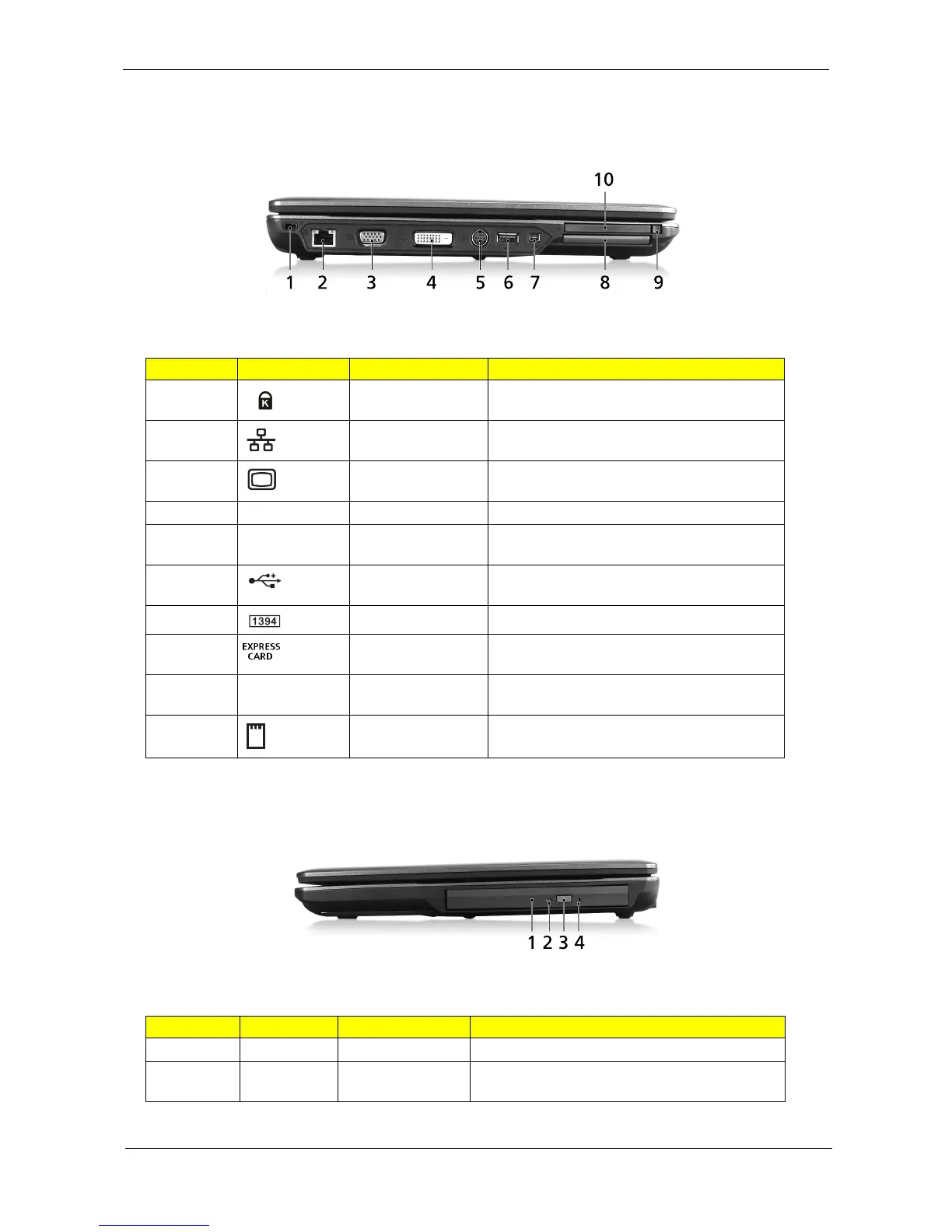

Left View
Right View
# Icon Item Description
1 Kensington lock slot Connects to a Kensington-compatible
computer security lock.
2 Ethernet (RJ-45)
port
Connects to an Ethernet 10/100/1000-based
network.
3 External display
(VGA) port
Connects to a display device (e.g., external
monitor, LCD projector).
4 DVI-D DVI-D port Supports digital video connections.
5 S-Video/TV-out
(NTSC/PAL) port
Connects to a television or display device with
S-video input.
6 USB 2.0 port Connects to USB 2.0 devices (e.g., USB
mouse, USB camera).
7 IEEE 1394 port Connects to IEEE 1394 devices.
8 ExpressCard/54
slot
Accepts one ExpressCard/54 module.
9 PC Card slot eject
button
Ejects the PC Card from the slot.
10 PC Card slot Accepts one Type II PC Card.
Icon Item Description
1 Optical drive Internal optical drive; accepts CDs or DVDs
2 Optical disk
access indicator
Lights up when the optical drive is active.

Acer Extensa 5220 Series Specifications

General

Display	15.4" WXGA (1280 x 800) TFT LCD
Optical Drive	DVD-Super Multi double-layer drive
Operating System	Windows Vista Home Basic
Processor	Intel Celeron M 530
RAM	512 MB DDR2
Storage	80 GB HDD
Graphics	Intel Graphics Media Accelerator (GMA) X3100
Battery	6-cell Li-ion
Weight	2.8 kg
Wireless	802.11b/g
LAN	10/100 Mbps Ethernet
Ports	3x USB 2.0, VGA, headphone/speaker/line-out jack, microphone-in jack
