64 Chapter 3

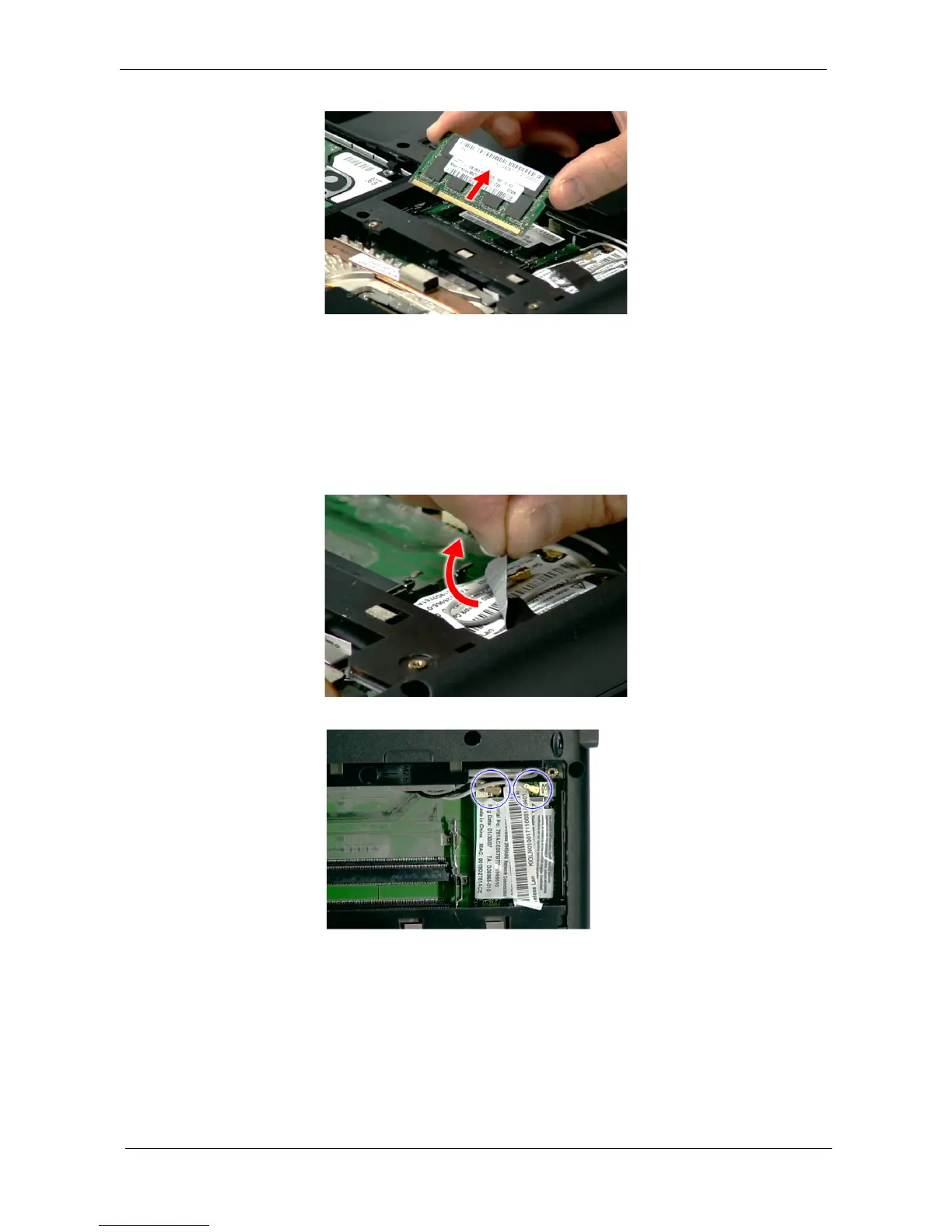

6. Remove the DIMM module.
Removing the WLAN Board Modules
1. See “Removing the Battery Pack” on page 60.
2. See “Removing the SD dummy card” on page 60.
3. See “Removing the PC and ExpressCard dummy cards” on page 61.
4. See “Removing the Lower Cover” on page 62.
5. Remove the tape holding the gray antenna.
6. Disconnect the antenna cables from the WLAN board.
