Acer Extensa 5220 Series Service Guide

8 Chapter 1

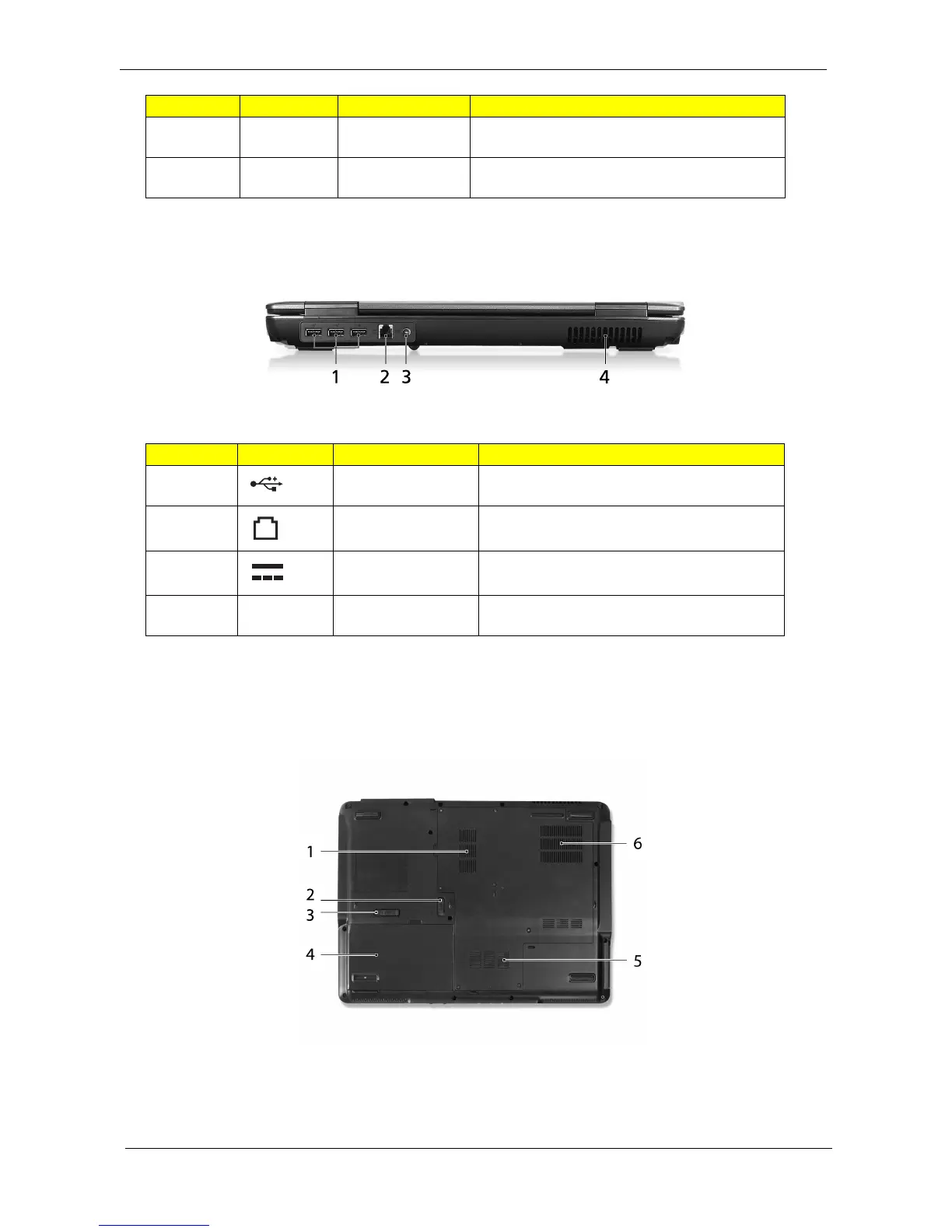

Rear Panel
Bottom Panel
3 Optical drive eject
button
Ejects the optical disk from the drive.
4 Emergency eject
hole
Ejects the optical drive tray when the computer is
turned off.
# Icon Item Description
1 Three USB 2.0
ports
Connect to USB 2.0 devices (e.g., USB
mouse, USB camera).
2 Modem (RJ-11)
port
Connects to a phone line.
3 DC-in jack Connects to an AC adapter.
4 Ventilation slots Enable the computer to stay cool, even after
prolonged use.
Icon Item Description

Acer Extensa 5220 Series Specifications

General

Display	15.4" WXGA (1280 x 800) TFT LCD
Optical Drive	DVD-Super Multi double-layer drive
Operating System	Windows Vista Home Basic
Processor	Intel Celeron M 530
RAM	512 MB DDR2
Storage	80 GB HDD
Graphics	Intel Graphics Media Accelerator (GMA) X3100
Battery	6-cell Li-ion
Weight	2.8 kg
Wireless	802.11b/g
LAN	10/100 Mbps Ethernet
Ports	3x USB 2.0, VGA, headphone/speaker/line-out jack, microphone-in jack
