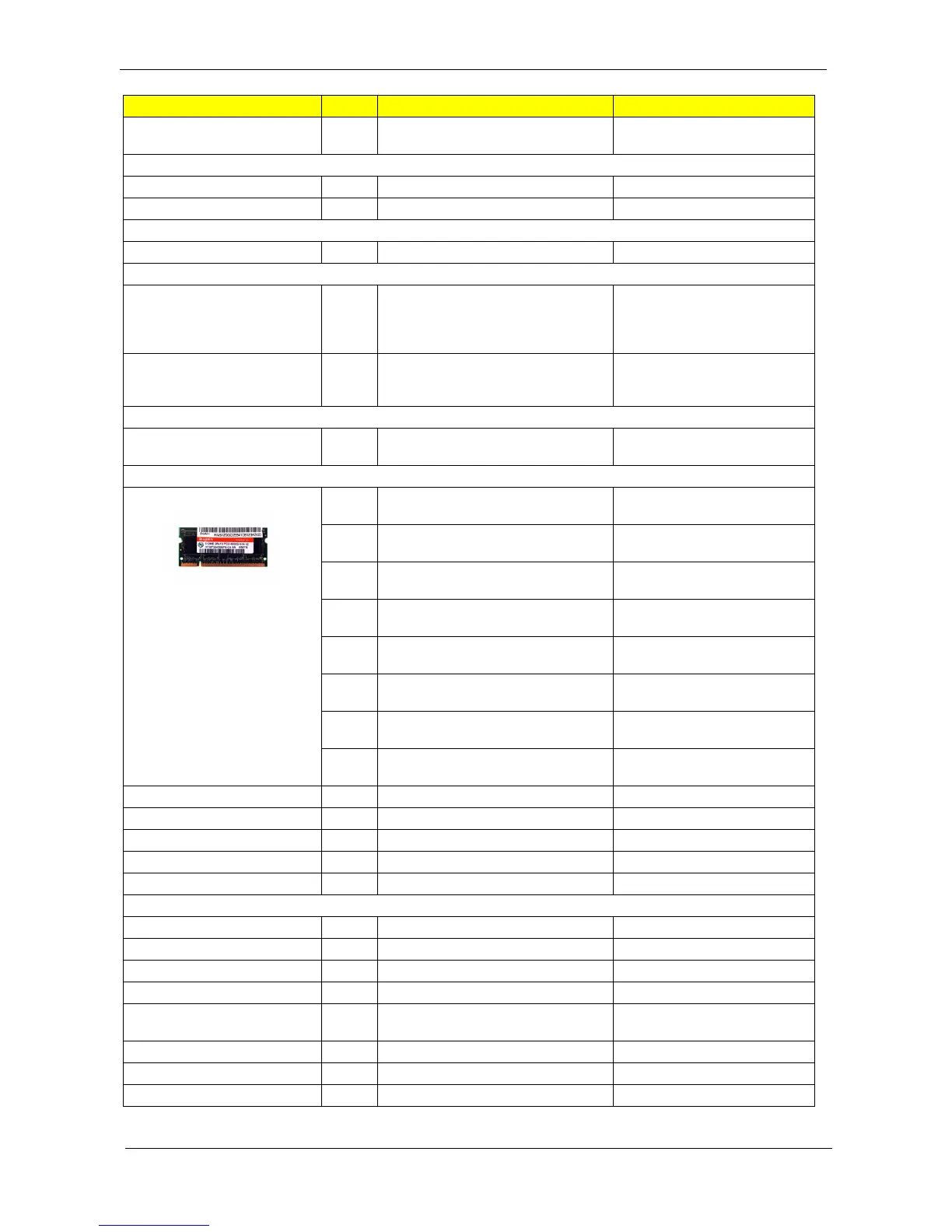

Acer Extensa 5220 Series Service Guide

134 Chapter 6
CAMERA CMOS 0.3M SUYIN
CN0314-OV03 UVC
57.TK901.001
Communication Module
WIRELESS ANTENNA RIGHT 25.TK901.001
WIRELESS ANTENNA LEFT 25.TK901.002
Microphone
MICROPHONE CABLE 23.TK901.003
Main Board
MAINBOARD TM5720 INTEL PM965
ICH8M 256M-GD2 BCM578MKMLG
LF W/ 1394 & FIR & DVI W/ MODEM
& RTC BATTERY
MB.TK301.001
MAINBOARD TM5720 UMA ICH8M
BCM5787MKMLG LF W/ 1394 & RTC
BATTERY & MODEM
MB.TK201.001
PCMCIA Slot/PC Card Slot
PCMCIA 4PIN SLOT CONN CARD
BUS PX10AFR02PH-1
22.TK901.001
Memory
SDIMM 1GB DDRII667 SAMSUNG
M470T2953EZ3-CE6
KN.1GB0B.011
SDIMM 512MB DDRII667 NANYA
NT512T64UH8B0FN-3C LF
KN.51203.032
SDIMM 512MB DDRII667 SAMSUNG
M470T6554EZ3-CE6 LF
KN.5120B.023
SDIMM 512MB DDRII667 HYNIX
HYMP564S64CP6-Y5AB LF
KN.5120G.019
SDIMM 512MB DDRII667 PROMOS
V916764B24QBFW-F5 LF
KN.5120M.004
SDIMM 1GB DDRII667 NANYA
NT1GT64U8HB0BN-3C LF
KN.1GB03.014
SDIMM 1GB DDRII667 HYNIX
HYMP512S64CP8-Y5 LF
KN.1GB0G.006
SDIMM 1GB DDRII667 PROMOS
V916765G24QBFW-F5
KN.1GB0M.001
Miscellaneous
LOGO PLATE FOR PANEL 31.A30V1.001
LOGO PLATE FOR BEZEL 31.A46V1.001
NAME PLATE TM5720 40.TKA01.001
LCD SCREW RUBBER 47.TK501.001
Screws
SCREW M2 x L3 (WHITE) 86.00C07.220
SCREW M2.5 x L6 NYLOK CR3+ 86.00E33.736
SCREW M2.5 x L8 NYLOK CR3+ 86.00E34.738
SCREW M2.5 x 5 NI 86.TK901.001
SCREW M2.5 x L5 BLACK
ZN+NYLOK
86.TK501.001
SCREW DIMM COVER STEEL 86.00A02.140
SCREW M2 x 4 WAFER NI 86.9A552.4R0
SCREW NI M2 x L6 86.9A552.6R0
Category No. Part Name and Description Acer Part No.

Acer Extensa 5220 Series Specifications

General

Display	15.4" WXGA (1280 x 800) TFT LCD
Optical Drive	DVD-Super Multi double-layer drive
Operating System	Windows Vista Home Basic
Processor	Intel Celeron M 530
RAM	512 MB DDR2
Storage	80 GB HDD
Graphics	Intel Graphics Media Accelerator (GMA) X3100
Battery	6-cell Li-ion
Weight	2.8 kg
Wireless	802.11b/g
LAN	10/100 Mbps Ethernet
Ports	3x USB 2.0, VGA, headphone/speaker/line-out jack, microphone-in jack
