2-2
PH530Condential
No Procedure Photo
1 Unscrew 2 screws to remove
Lamp Cover.
(as red circle)
2 Unscrew 2 screws to
remove Lamp Module.
(as red circle)

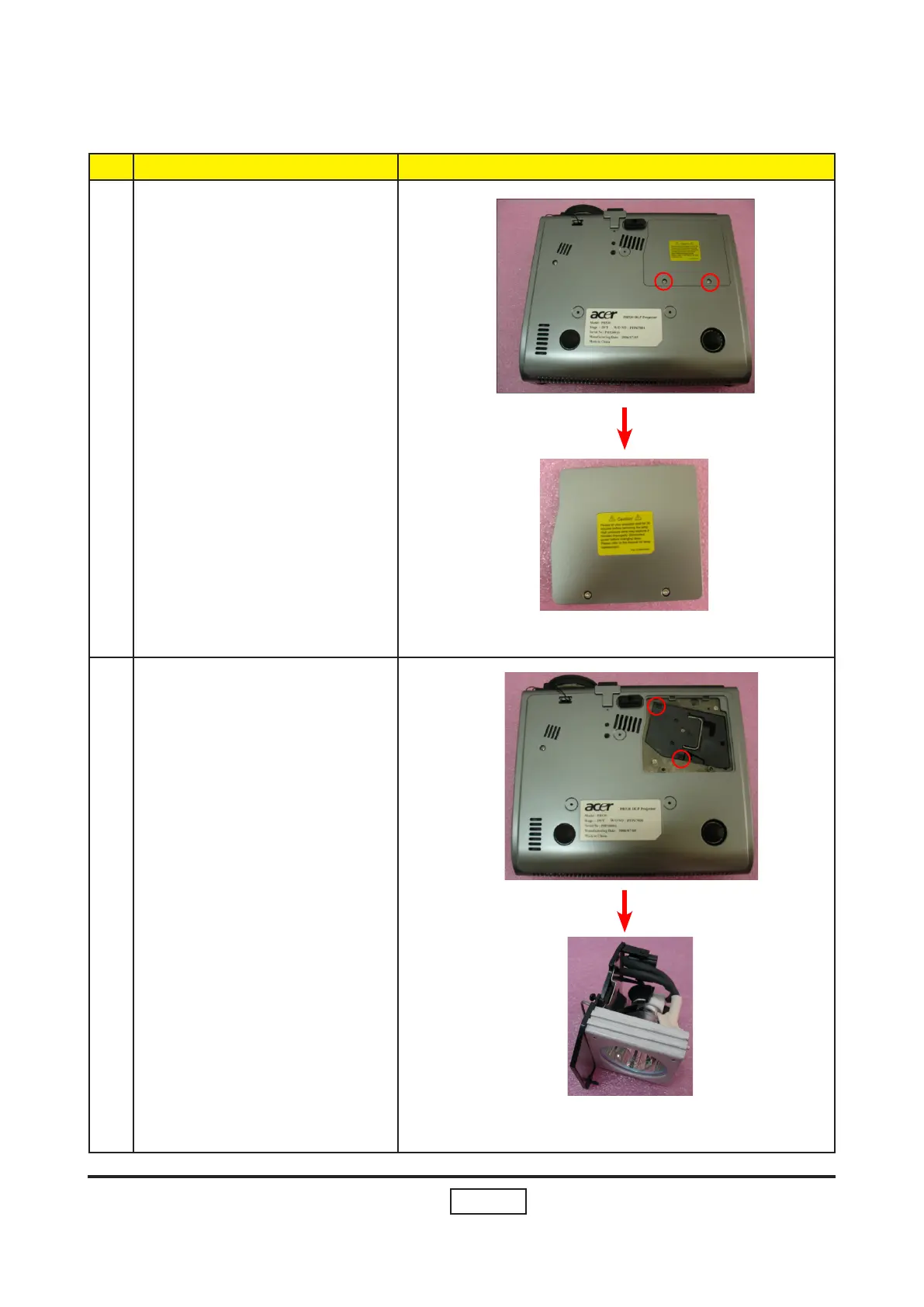

2-2 Remove Lamp Module
Lamp
Lamp Cover
