2-14
PH530Condential

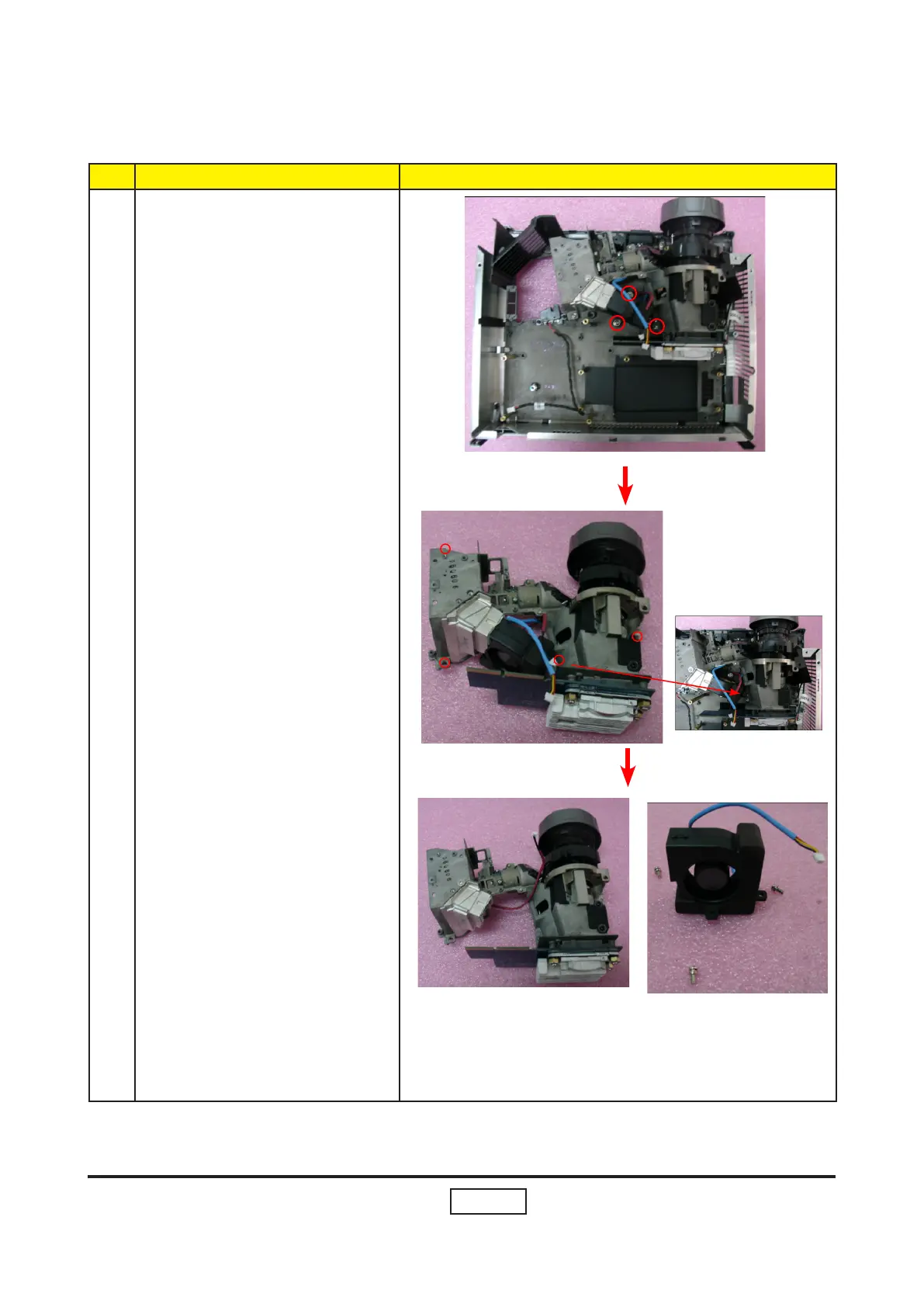

2-12 Remove Engine Module and Fan ModuleFan Module
No Procedure Photo
1 (1) Unscrew 4 screws.
(as red circle)
(2) Unscrew 3 screws.
(as red circle)
(3) Remove Engine Module.
(4) Remove Fan Module.
Engine Module
Fan Module
