2-8
PH530Condential

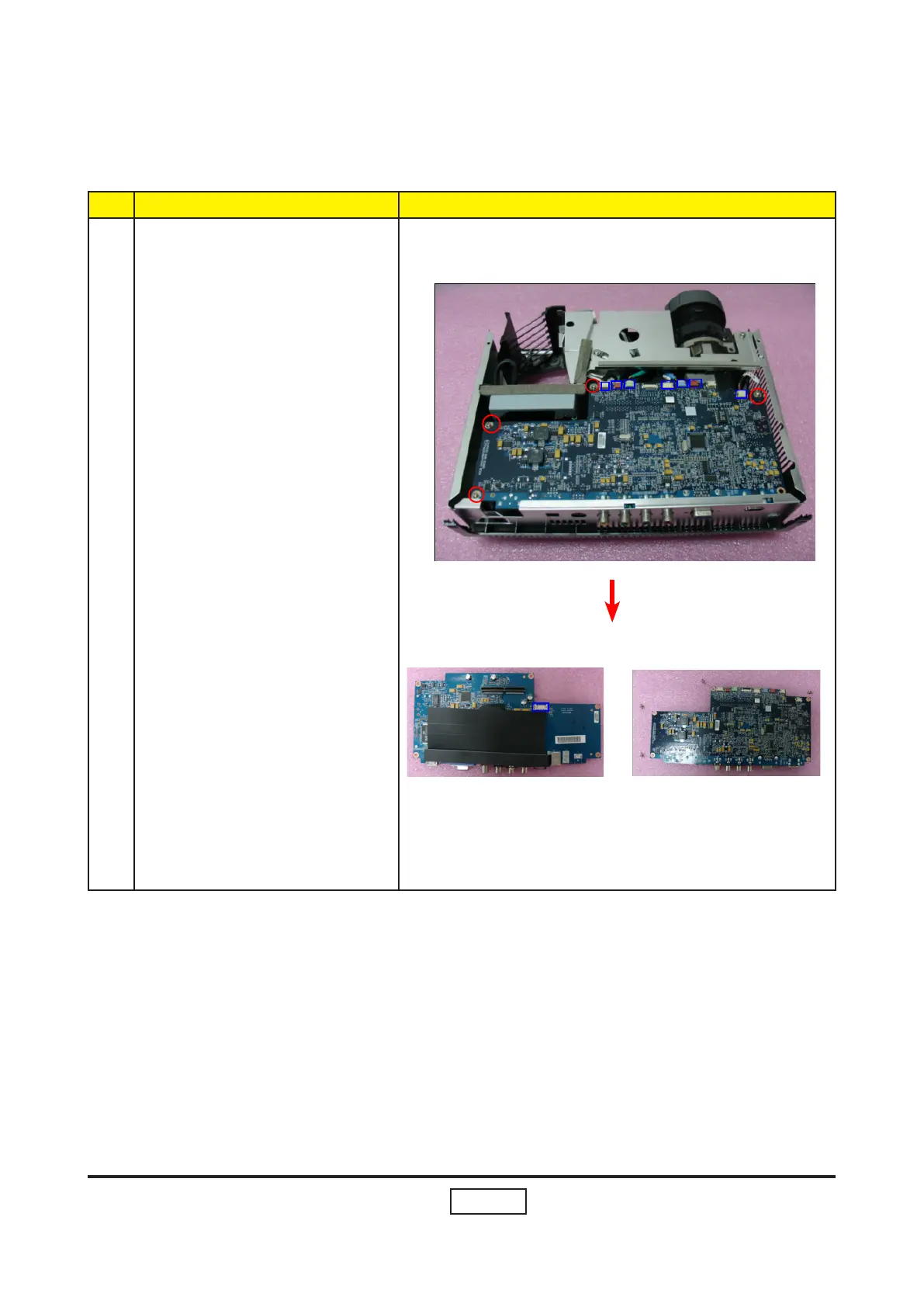

No Procedure Photo
1 (1) Unscrew 4 screws.
(as red circle)
(2) Unplug 8 connectors.
(as blue square)
(3) Remove Main BD.
Main BD
2-6 Remove Main Board
