2-11
PH530Condential

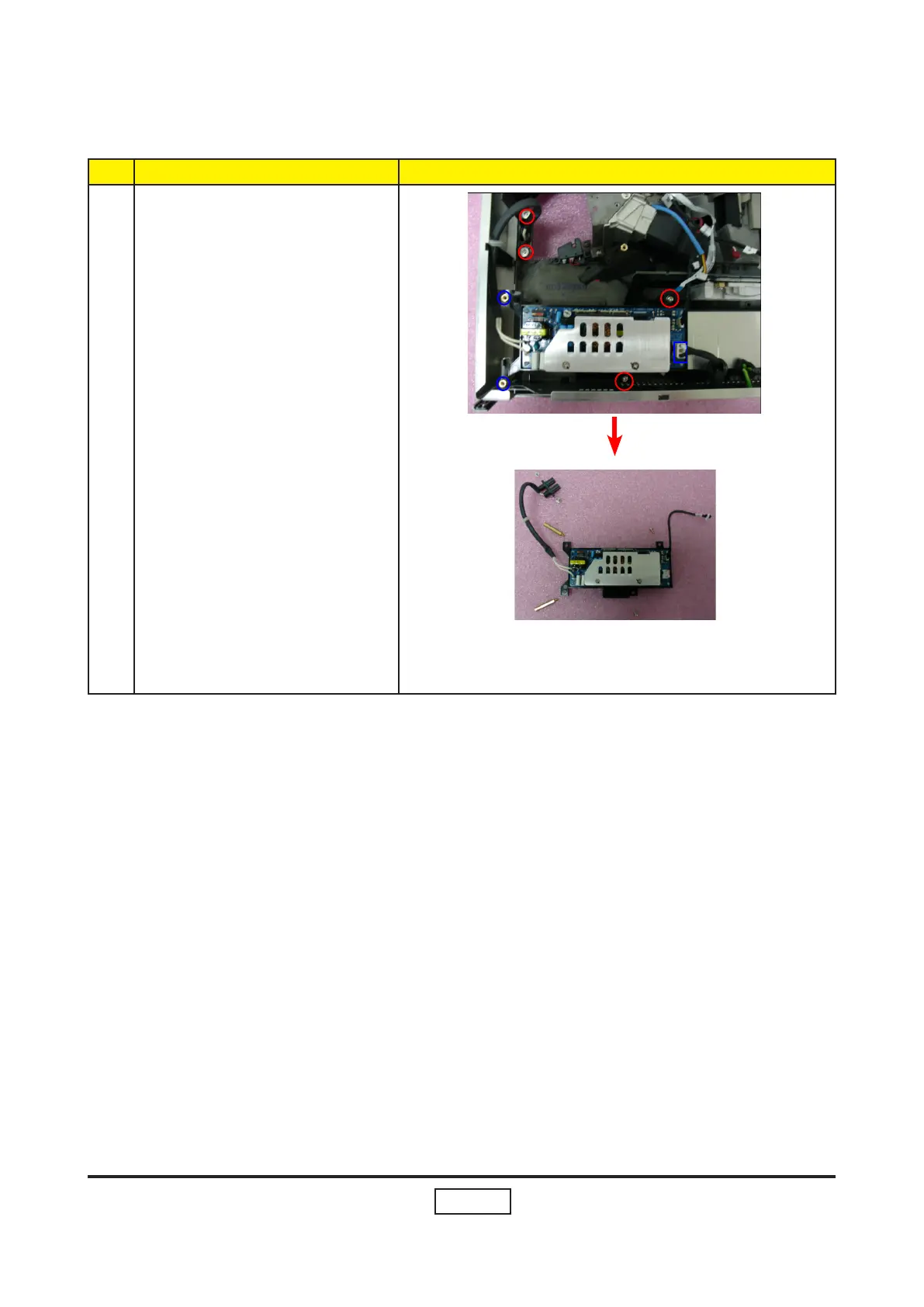

2-9 Disassemble Lamp Driver Module
No Procedure Photo
1 (1) Unscrew 4 screws.
(as red circle)
(2) Unscrew 2 cupreous hex
spacers.
(as blue circle)
(3) Unplug 1 connector.
(as blue square)
(4) Remove Lamp Driver
Module.
Lamp Driver Module
