Vertu Series VPM3000 Process Meters & Temperature Transmitters
Instruction Manual
17
Setup and Programming
This section describes how to program the Vertu me-
ter using the front panel buttons. The Vertu meter can
also be programmed using DisplayWizard
Software as
described on page 32, or by copying the programing
from meter to the next as described on page 31.
• There is no need to recalibrate the meter when
f
irst received from the factory.
• The meter is factory calibrated prior to shipment,
for all input types, in milliamps, volts, and degrees.
The calibration equipment is certified to NIST
standards.
Overview
There are no jumpers involved in the setup process of
the meter. The RTD/TC selector switch, located
between the SIGNAL and SERIAL connectors, must
be set accordingly for the meter to accept RTD or
thermocouple inputs. See Figures under Connector
Labeling on page 11.
Setup and programming is done through the front
panel buttons.
After power and signal connections have been
completed and verified, apply power to the meter.
For Quick Interface Reference Guide
go to page 43.

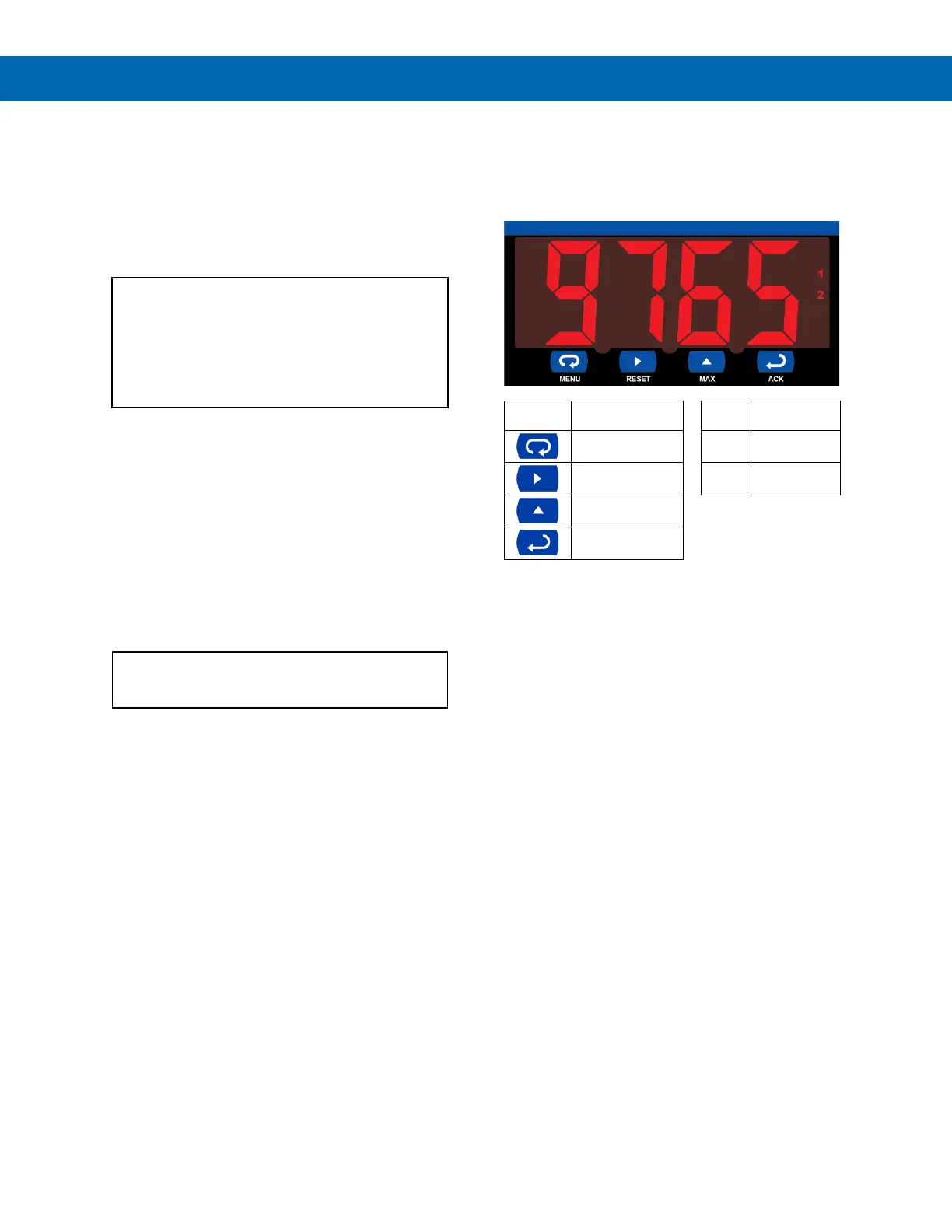

Front Panel Buttons and Status
LED Indicators
VPM3000 Large Display
Temperature Transmitter
Menu
1 Alarm 1
2 Alarm 2
Up arrow / Max
Enter / Ack
• Press the Menu button to enter or exit the
Programming Mode at any time.
• Press the Right arrow button to move to the next
digit during digit programming.
• Press the Up arrow button to scroll through the
menus, decimal point, or to increment the value
of a digit.
• Press the Enter/Ack button to access a menu or
to accept a setting.
• Press the Right arrow and Menu button
simultaneously or hold the Menu button for
approximately 3 seconds to access the Advanced
Features Menu of the meter.
