Vertu Series VPM3000 Process Meters & Temperature Transmitters
Instruction Manual
33
DisplayWizard Main Window

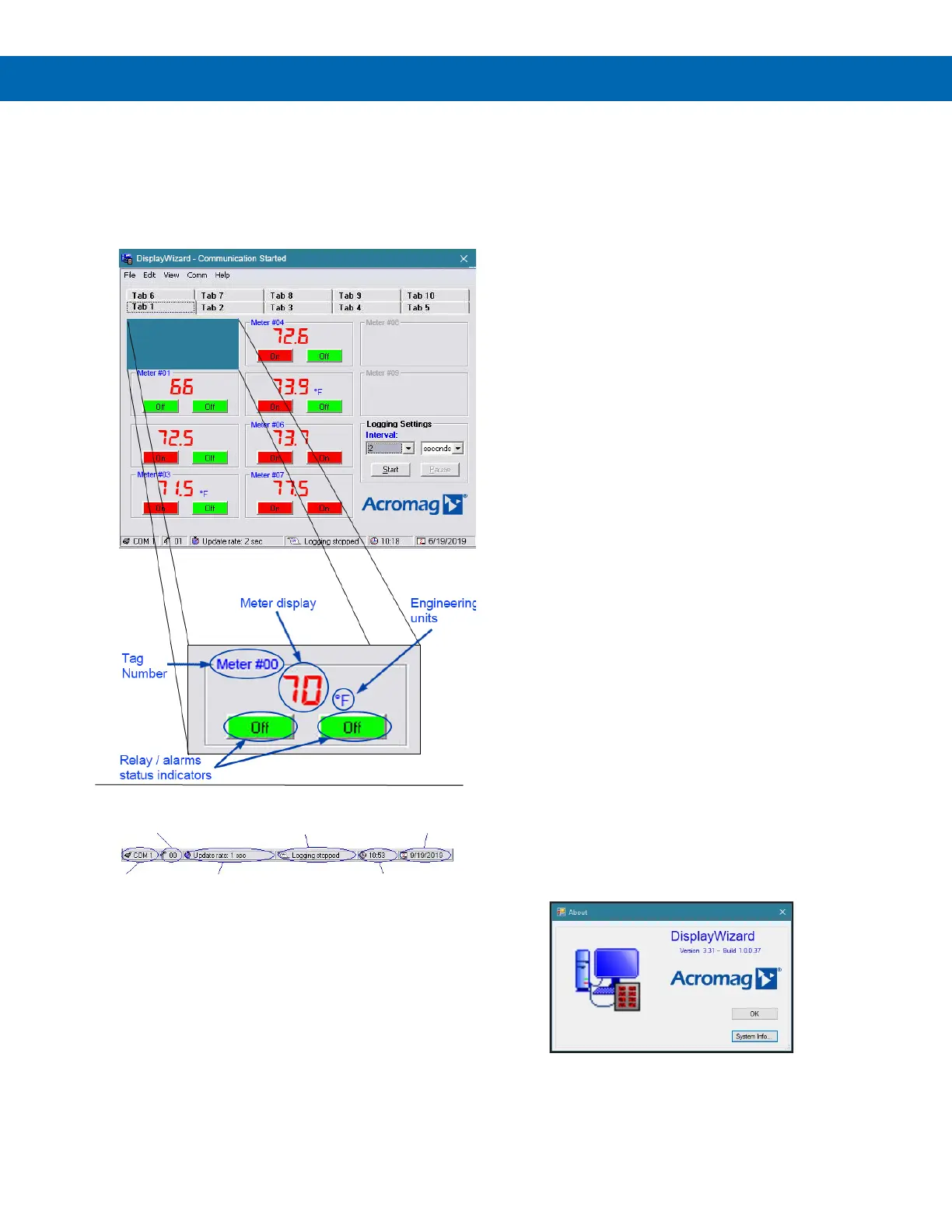

The main DisplayWizard window shows the present
reading(s), relays/alarm status, tag number(s) and se-
lected engineering units, along with other information
for each meter. The graphic below indicates the differ-
ent parts of the main DisplayWizard window.
Main Window Menus
The DisplayWizard main window contains the follow-
ing menus:
• File menu
• Edit menu
• View menu
• Comm Menu
• Help Menu
File Menu
The following options are available from this menu:
1. Exit to close the DisplayWizard program.
Edit Menu
The following options are available from this menu:
1. Serial Settings to edit the serial
communication settings.
2. Number of Meters to automatically populate
the Main Window with a single meter, 10
meters, or 100 meters.
View Menu
The following options are available from this menu:
1. Event Log to view the DisplayWizard event
log window where all internal program events
and errors are logged.
2. Show Relay Alerts select whether or not
DisplayWizard should alert the user of a
change in the relay status (ON OFF or vice
versa) with a pop-up message.
Comm Menu
The following options are available from this menu:
1. Stop to halt the automatic meter scanning.
This allows quicker access to menu items,
functions, and windows.
2. Start to resume the automatic meter
scanning.
Help Menu
The following options are available from this menu:
1. Online Resources links to acromag.com for
help and product documentation.
2. About DisplayWizard 3.3 for version number
and build information.
