Vertu Series VPM3000 Process Meters & Temperature Transmitters
Instruction Manual
36

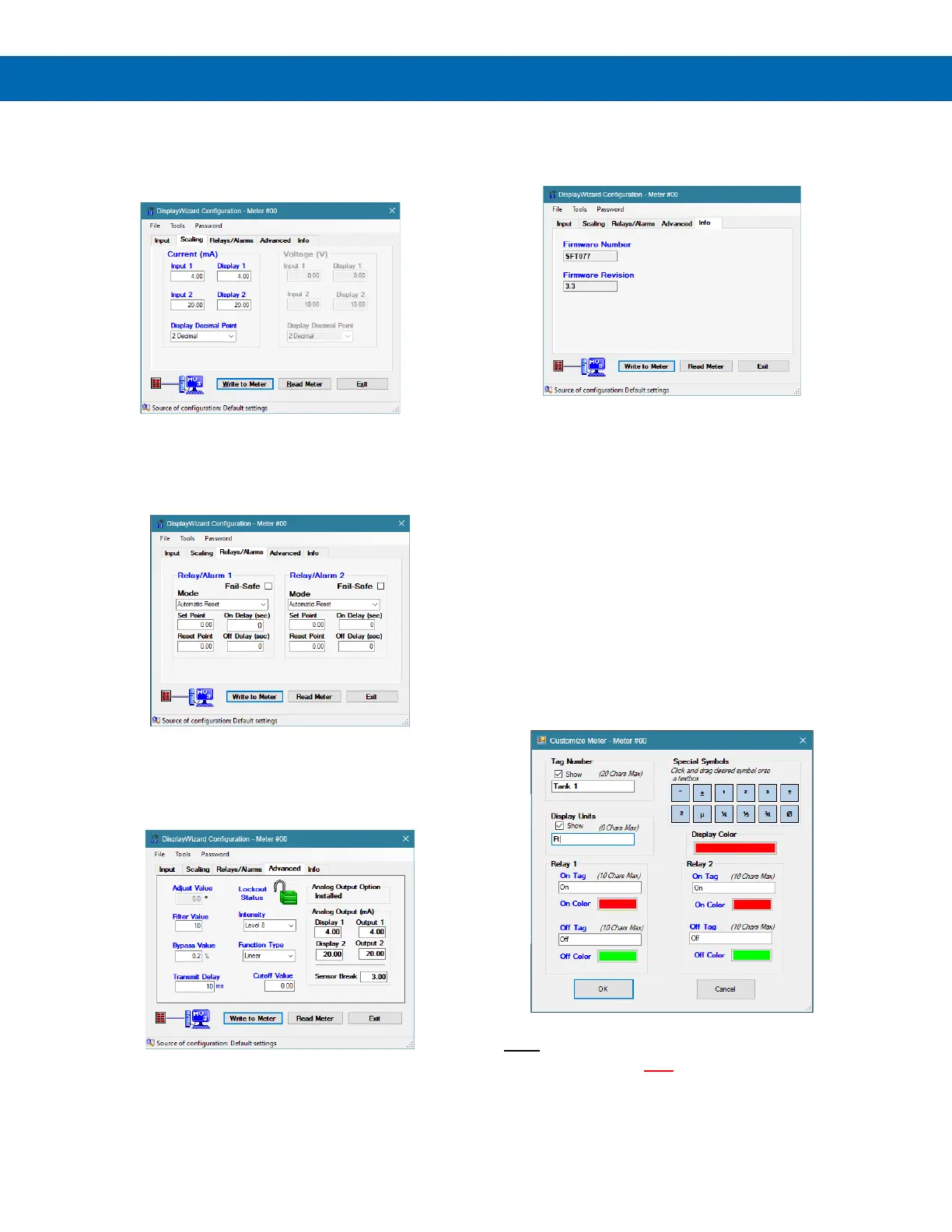

Scaling Tab
In the configuration window, click on the Scaling tab
to view the scaling settings for process inputs (current
and voltage).
bh
Relays/Alarms Tab
In the configuration window, click on the Re-
lays/Alarms tab to view the settings for the re-
lays/alarms.
Advanced Tab
In the configuration window, click on the Advanced
tab to view the advanced settings. Consult the meter
manual for further details.
Info Tab
In the configuration window, click on the info tab to
view the firmware number and version.
Customize Window
Click on Customize in the right click menu to open a
meter’s customize window. The following settings can
be programmed from this window:
1. Tag Number to identify a meter and optionally display it
on the meter. Pre-selected special characters may be
used in this field by simply dragging the desired symbol
into it.
2. Display Units to identify the engineering units of the
value being read and optionally display it on the meter.
Pre-selected special characters may be used in this
field by simply dragging the desired symbol into it.
3. Display Color to change the color of the meter display
on the screen.
4. Relay Tag to change the text label of the Relay Status
indicator(s).
5. Relay Color to change the color of the Relay Status
indicator(s).
Note:
• These settings are NOT saved to the meter.
