Vertu Series VPM3000 Process Meters & Temperature Transmitters
Instruction Manual
35
It is recommended to save a configuration
file before changing any setting and before
any calibration operation.
Password Menu
The following options are available from the Password
menu:
1. Lock Meter to lock the meter and prevent
unauthorized changes.
2. Unlock Meter to unlock the meter and allow
changes to be made.
3. Change Password to change the unlock
password of the meter.
The password must be a four-digit
number; “0000” is the unlocked
password setting.

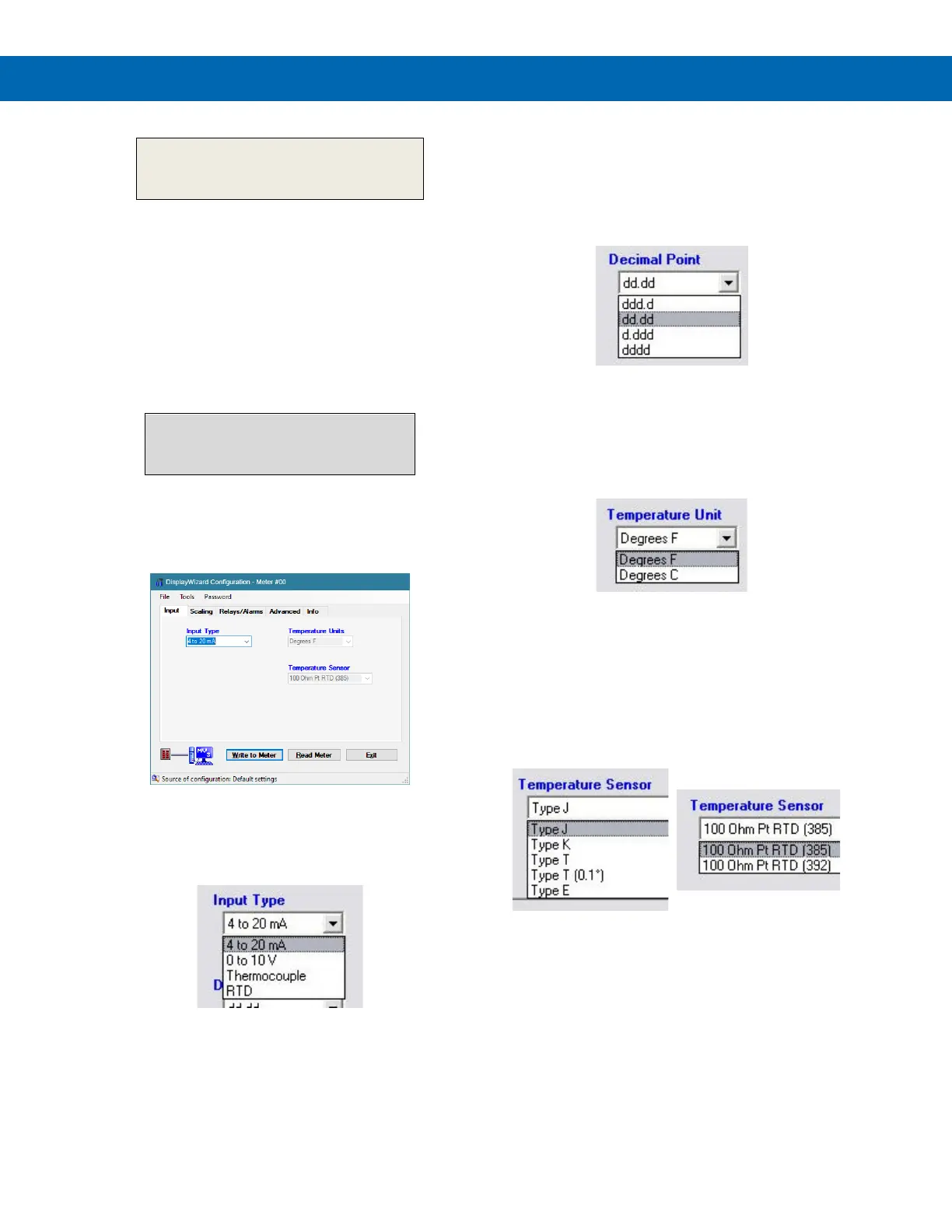

Input Tab
In the configuration window, click on the Input tab to
view the input options.
Set Up Input Type
Click on the arrow next to the 4 to 20 mA box and
then click on the desired input type.
Set Up Decimal Point
Click on the arrow next to the dd.dd box and then
click on the desired decimal point position. Decimal
point selection is available for 4-20 mA and 0-10 V in-
puts only. The display scale and relay set/reset points
are adjusted according to the decimal point selection.
Set Up Temperature Unit
Click on the arrow next to the Degrees F box and then
click on the desired temperature unit. Temperature
unit selection is available for Thermocouple and RTD
inputs only.
Set Up Temperature Sensor
Click on the arrow next to the Type J box and then
click on the desired temperature sensor. Temperature
sensor selection is available for Thermocouple and
RTD inputs only.
Thermocouple
Sensors
RTD Sensors
