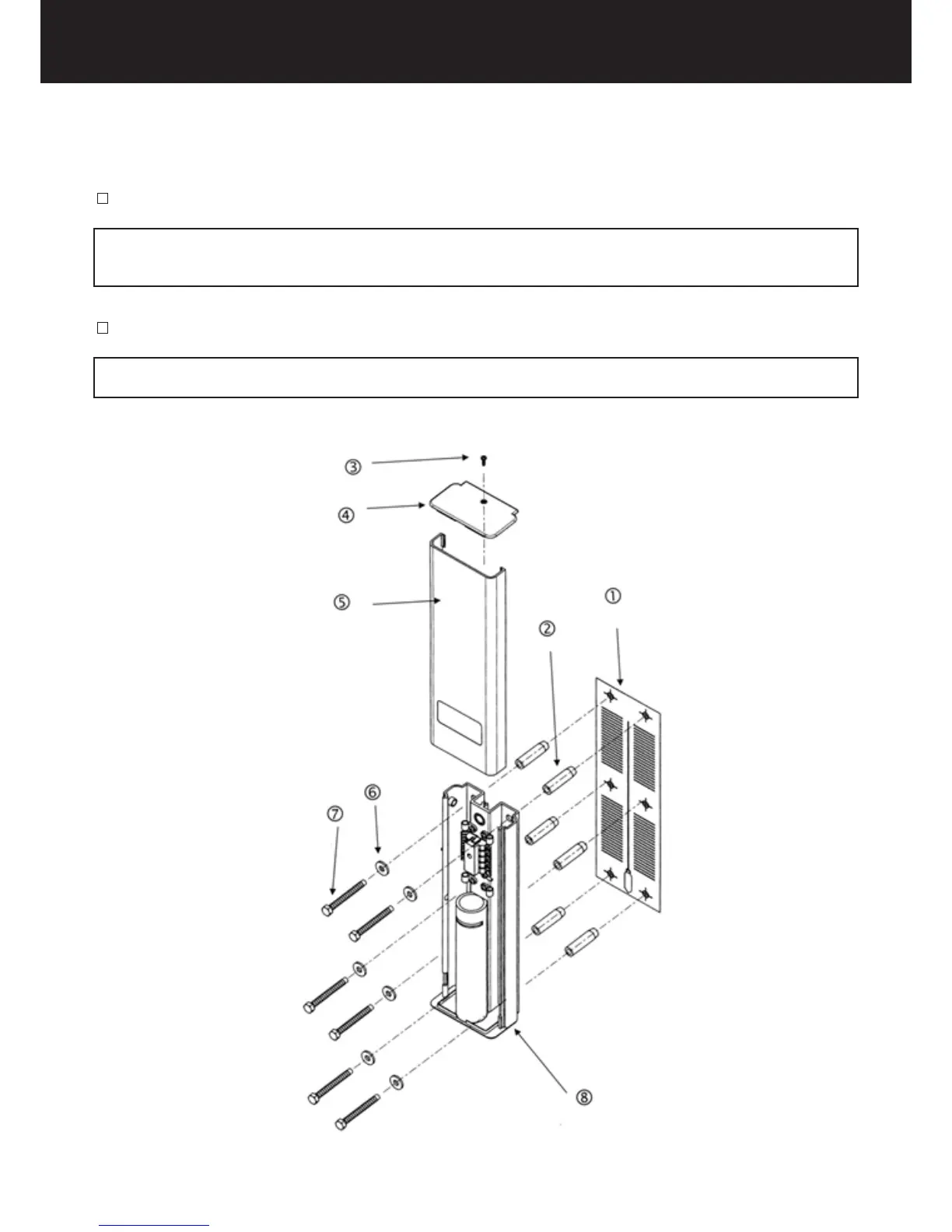

4.3. ASSEMBLING THE WALL PLATE
!
WARNING
When the timer is installed aside the wall plate, please consider what follows:
} the timer must be mounted on the left side of the wall plate;
} the distance between timer and wall plate must be 2,5mm.
!
WARNING
To x the wall plate DO NOT use plastic or rubber anchor screws.
For cement walls, or built with solid or hollow bricks, use metal anchor screws Ø12 (NOT included in the supply).
