INSTALLATION & MAINTENANCE MANUAL • X-MIND AC • V2 • (06) • 08/2016 • NXACEN020B
ENGLISH
CHAPTER 6
6.1. CONFIGURATION
The “x-mind ac®” radiographic system is provided in the “standard mode” conguration.

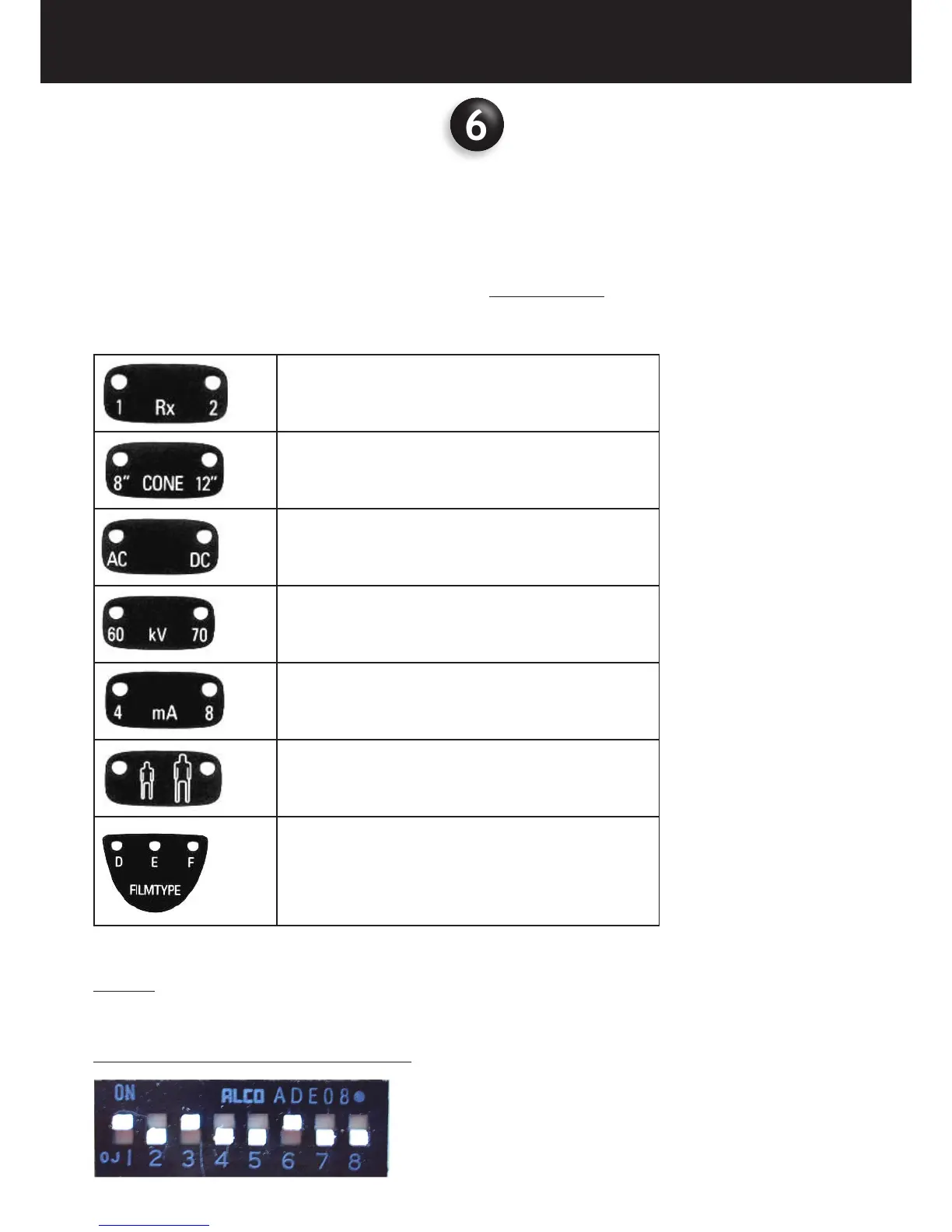

On the control panel the LED relevant to the following exposure parameters will light up:
No. of the selected tubehead
LED 1
supplied cone
LED 8” = SHORT CONE
LED 12” = LONG CONE
Type of tubehead
LED AC = ALTERNATE CURRENT
radiographic voltage
LED 70kV
radiographic current
LED 8mA
type of patient
LED ADULT
radiographic technique
CONVENTIONAL LED D
The above conguration depends on the position of dip-switch on the timer electronic card:
LEGEND
ON = INSTALLED
OFF = NOT INSTALLED
IF THE LONG CONE IS USED 31cm = 12” (SSD)
