Acteon x-mind ac - Changing the Configuration; Possible Modifications of the Exposure Values

37
ENGLISH
INSTALLATION & MAINTENANCE MANUAL • X-MIND AC • V2 • (06) • 08/2016 • NXACEN020B
ON OFF
1 ■ TUBEHEAD 1
2 ■ TUBEHEAD AC
3 ■ TUBEHEAD 2
4 ■ TUBEHEAD AC
5 ■ II° CONTROL BUTTON
6 ■ LONG CONE 12’’ (31cm)
7 ■ NOT AVAILABLE
8 ■ NOT AVAILABLE
IF THE SHORT CONE IS USED 20cm = 8” (SSD)
ON OFF
1 ■ TUBEHEAD 1
2 ■ TUBEHEAD AC
3 ■ TUBEHEAD 2
4 ■ TUBEHEAD AC
5 ■ II° CONTROL BUTTON
6 ■ SHORT CONE 8’’ (20cm)
7 ■ NOT AVAILABLE
8 ■ NOT AVAILABLE

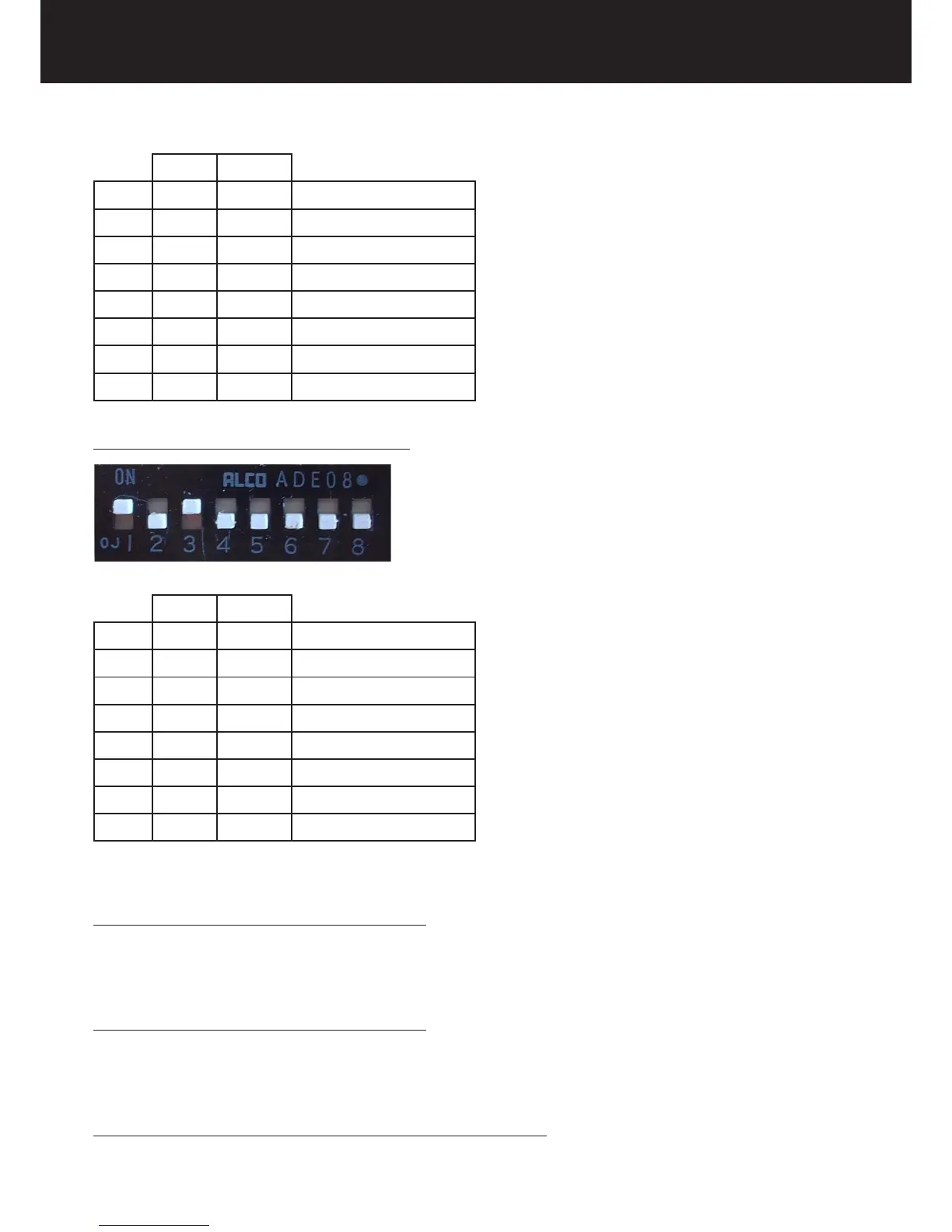

6.2. CHANGING THE CONFIGURATION
Possible modications of the exposure values
►Type of patient (ADULT/CHILD)
►Radiographic technique
(refer to “User’s Manual” Chapter 4)
Possible modications of the exposure values
►N° of tubehead (1/2)
►N° control button
►Type of cone (8” /12”)
inside the timer, by changing the dip-switch position
THIS OPERATION MUST BE CARRIED OUT BY THE INSTALLER ONLY
