2. Proceed with the electric connection as shown below:

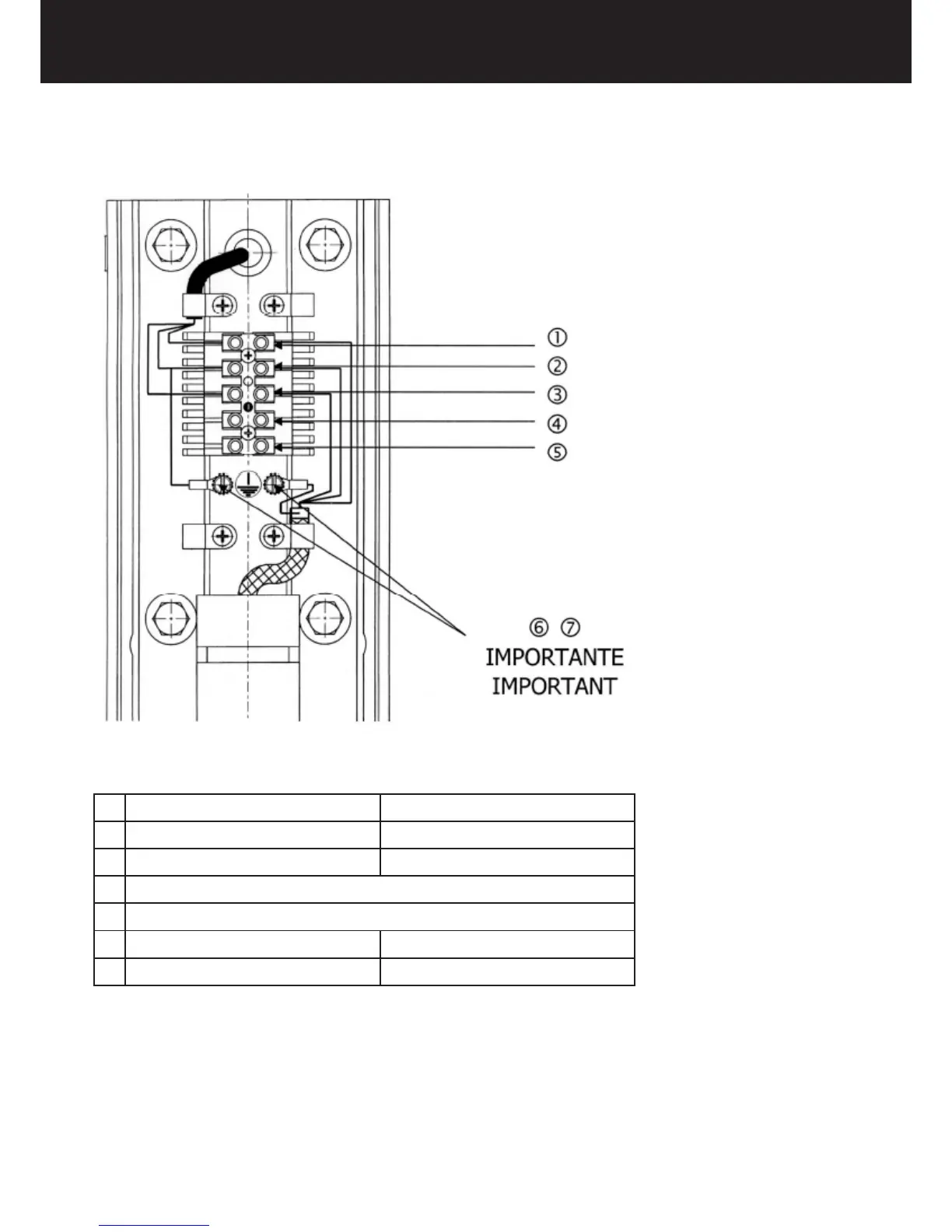

TERMINAL BOARD CONNECTION DIAGRAM
1 BROWN L = PHASE
2 YELLOW GREEN T = GROUND
3 BLUE N - NEUTRAL
4 Not connected
5 Not connected
6 YELLOW GREEN T = GROUND
7 YELLOW GREEN T = GROUND
3. Connect the pantograph cable shield to the grounding potential 6.
4. Connect the wall plate to the grounding potential 7.
5. Clamp the cables with the cable clamps provided.
6. Reassemble the terminal board cover.
