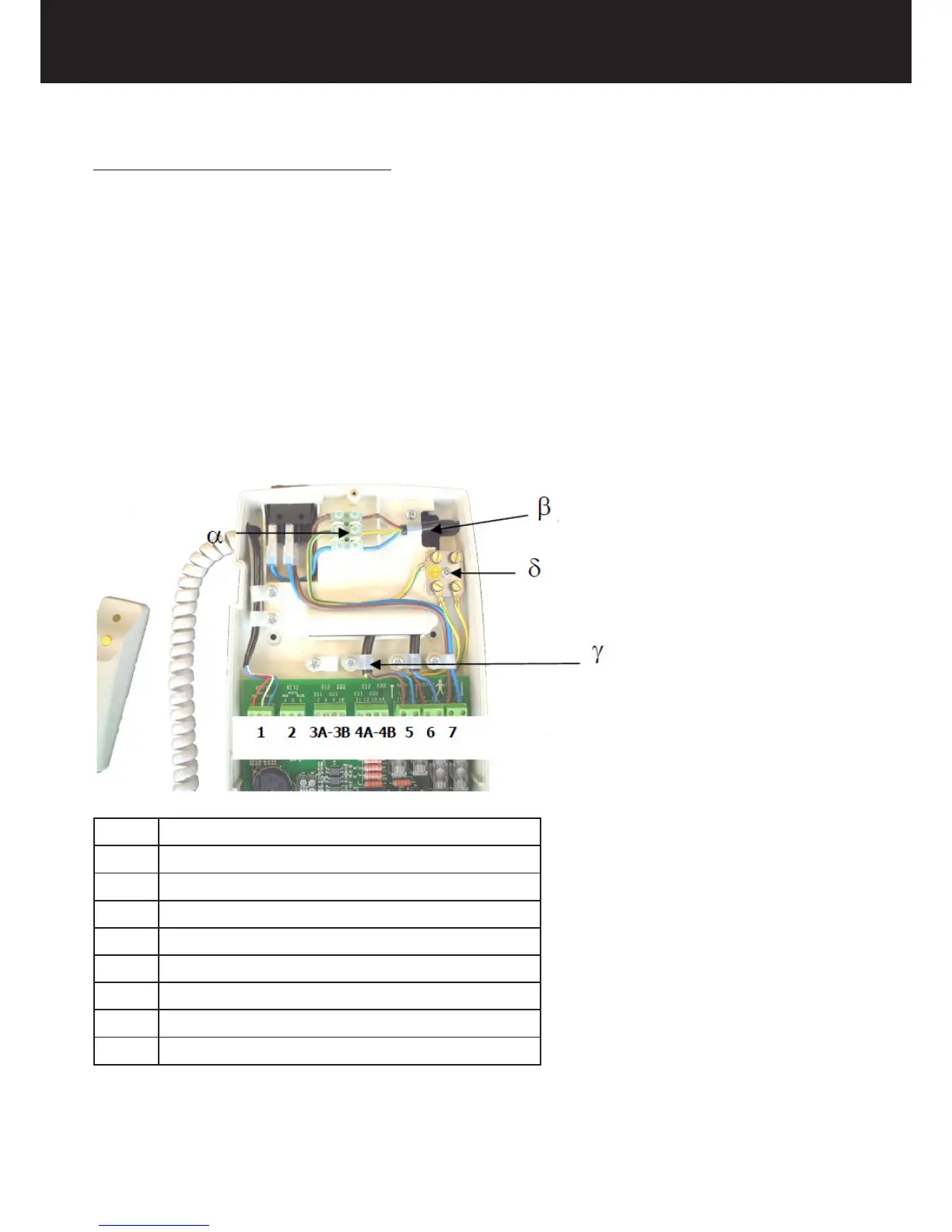

CONNECTION TO THE TIMER INSTRUCTION
1. Connect the power supply cable to the terminal board α.
2. Insert the three mains cables into the rack.
3. Fix them with the cable clamp β.
4. Connect the cables coming from the tubehead 1 to the terminals XRAY1.
5. Connect the yellow-green grounding cable to the equipotential metal plate δ.
6. Connect the cables coming from the tubehead 2 to the terminals XRAY2.
7. Connect the yellow-green grounding cable to the equipotential metal plate δ.
8. Clamp the cables in the cable clamp γ.
9. Connect the X-ray signalling lamps for external use (OPTIONAL).
10. Connect the remote control buttons (OPTIONAL).
11. Check the conguration on the dipswitches.
12. Reconnect the 26-pole connector.
13. Close the timer with the three screws.
14. Mount the sliding cover and the plug of the wall plate.
15. Reconnect the power supply.
1 TUBEHEAD 1 CONTROL BUTTON
2 TUBEHEAD 2 CONTROL BUTTON - OPTIONAL
3A TUBEHEAD 1 X-ray SIGNALLING LAMP - OPTIONAL
3B TUBEHEAD 2 X-ray SIGNALLING LAMP - OPTIONAL
4A NOT AVAILABLE
4B NOT AVAILABLE
5 TUBEHEAD 1 POWER SUPPLY
6 TUBEHEAD 2 POWER SUPPLY
7 TIMER POWER SUPPLY
