9. Couple the pantograph and tubehead connections and t the into their seats.
4.8. BALANCING THE PANTOGRAPH ARM
CAUTION

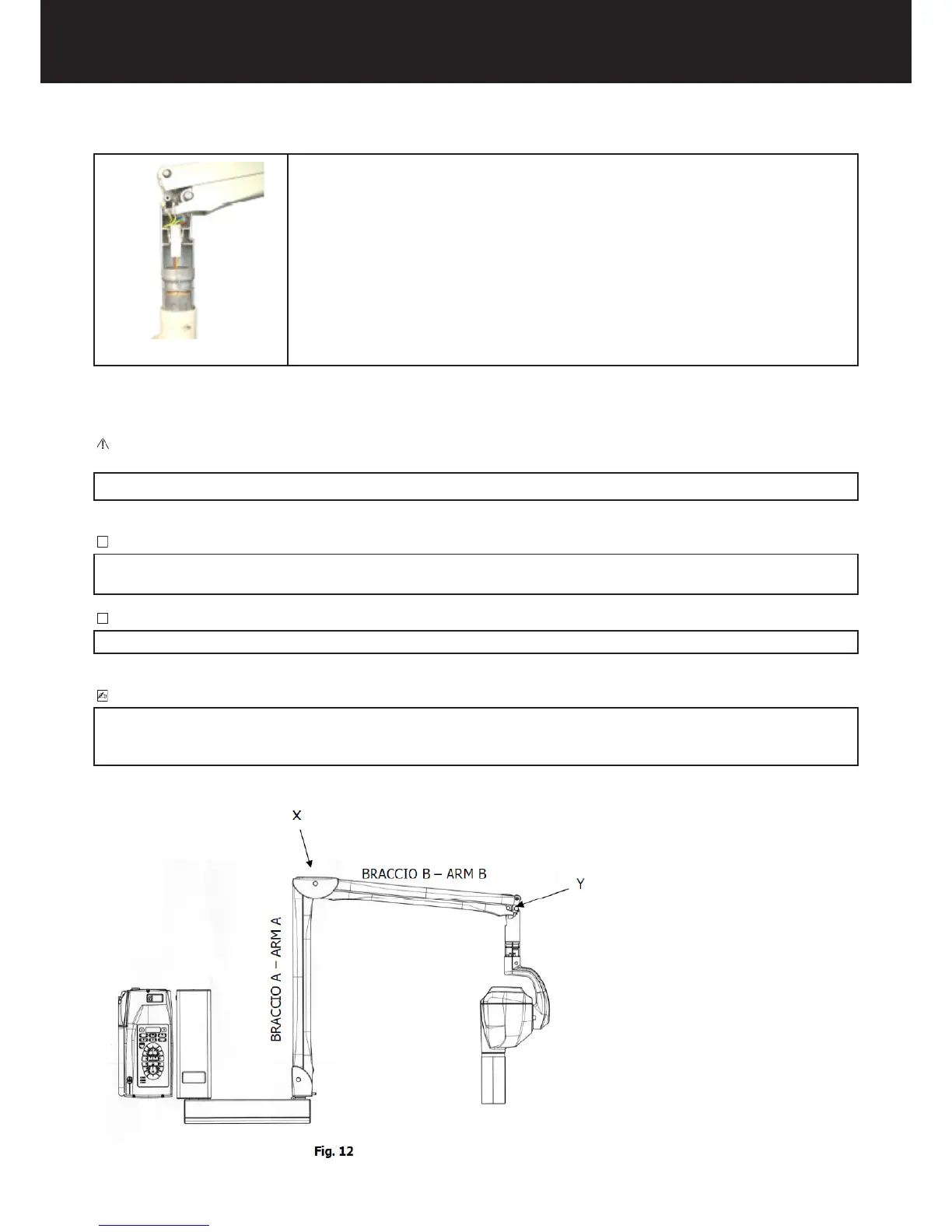

The pantograph arm must be adjusted only when the tubehead is assembled (g. 12).
!
WARNING
To prevent damages to the internal mechanism while performing adjustment and balancing tests, the adjustment key must not be left in
place.
!
WARNING
The adjustment key provided must be carefully kept.
PLEASE NOTE
To reach the adjustment screw X, the arm A must be put in vertical position.
To reach the adjustment screw Y, the arm B must be put in horizontal position.
The adjustment key provided can be inserted only under the above conditions.
