ACV 2004 User Manual

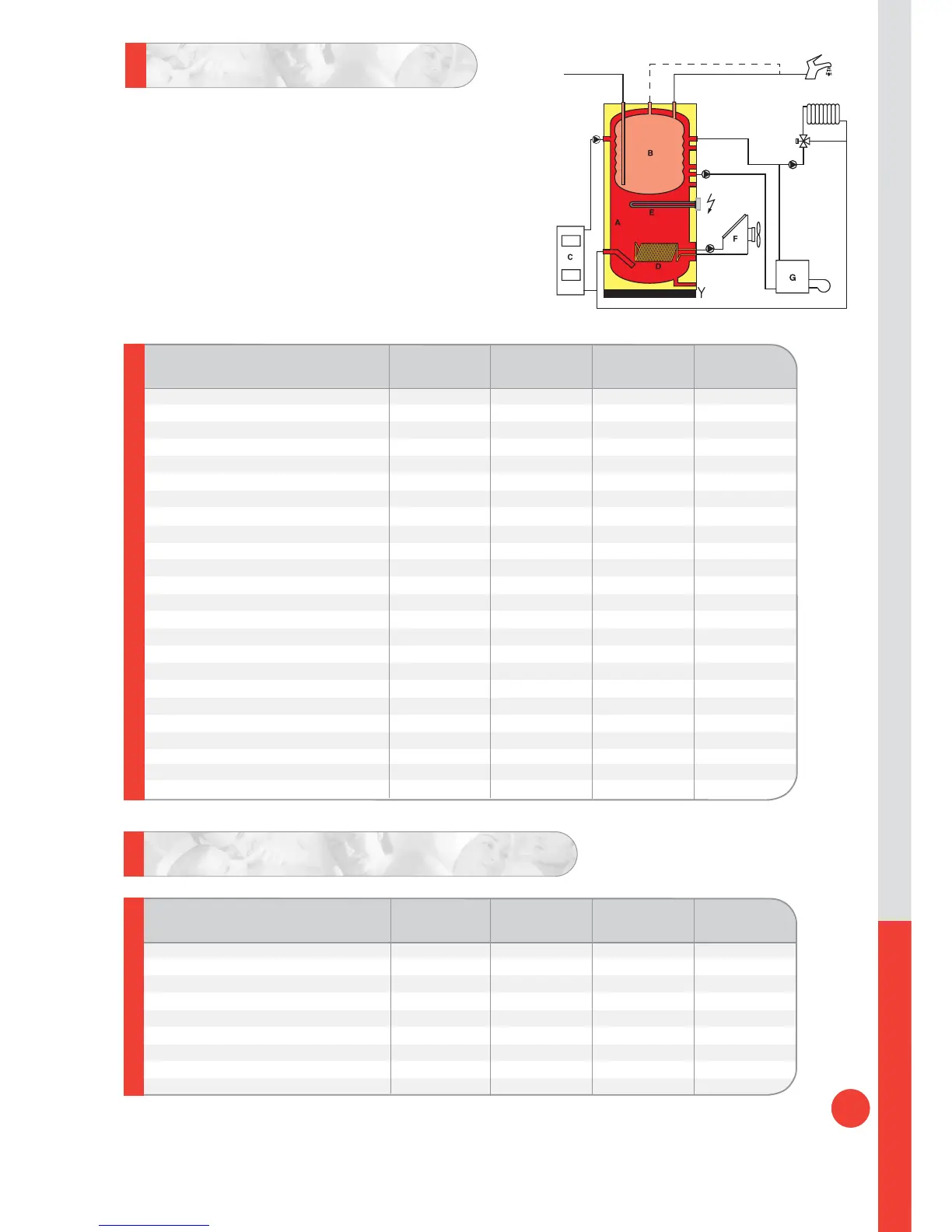

Multi-Energy Options
A Primary thermal store
B Stainless steel DHW tank
C Heat source from solid
fuel boilers or heat pumps
D Coil heat exchanger
E Immersion heater
F Heat source from solar
panels or heat recovery
from refrigerator
G Heat source from boiler
14
12
Technical Specifications
Note: The above performances are based on a primary flow temperature of 85°C and a domestic cold water inlet of
10°C,without the use of a thermostatic mixing valve on the domestic hot water outlet.If the boiler is heated using
the immersion heater,domestic hot water output depends on the heating element fitted.
Maximum Operating Pressure
Primary: 3 bar
Secondary: 10 bar
Coil: 13 bar
Factory Test Pressure
Primary: 4.5 bar
Secondary: 13 bar
Coil: 20 bar
Maximum Operating Temperature
90°C
HR FB HR FB ACCU B ACCU B
300 450 600 800
Code 06254201 06603202 06240201 06240401
Tan k
Total capacity L 360 450 618 809
Primary capacity L 189 261 434 625
Heating surface area
m
2
1.99 2.58 2.16 2.16
Primary pressure drop mbar 90 75 60 60
Primary flow rate L/h 5400 5700 n/a n/a
Maximum usable input from boiler kW 63 63 38 38
Primary connections (female BSP)
Ø 1” 2” 1
1
/
4
”1
1
/
4
”
DHW connections (male BSP)
Ø 1” 1
1
/
2
”1” 1”
Immersion heater connection
Ø 1
1
/
2
”1
1
/
2
”1
1
/
2
”1
1
/
2
”
Dimensions height mm 1900 1860 1730 2030
width mm 680 750 1020 1020
depth mm 680 750 1020 1020
Weight empty Kg 190 212 251 280
Weight full Kg 550 662 869 1089
Coil
Surface area
m
2
2.6 2.6 2.6 2.6
Primary connection (male BSP)
Ø
3
/
4
”
3
/
4
”
3
/
4
”
3
/
4
”
Flange diameter mm 190 190 190 190
Length mm 610 610 610 610
Pressure drop mbar 160 160 160 160
Primary flow rate L/h 700 700 700 700
Rated output kW 13.12 13.12 13.12 13.12
HR FB HR FB ACCU B ACCU B
300 450 600 800
Peak flow 40°C L/10’ 427 455 280 303
Peak flow 45°C L/10’ 366 390 240 260
Peak flow 60°C L/10’ 220 270 144 182
Peak flow 1st hour 40°C L/60’ 1930 2474 1094 1211
Peak flow 1st hour 45°C L/60’ 1654 2120 938 1034
Peak flow 1st hour 60°C L/60’ 562 726
Continuous flow 40°C L/h 1804 1940 1089 1089
Continuous flow 45°C L/h 1546 1662 933 933
Continuous flow 60°C L/h 653 653
Domestic Hot Water Performances
HR FB/ACCU
