Oil/Gas Boilers
45

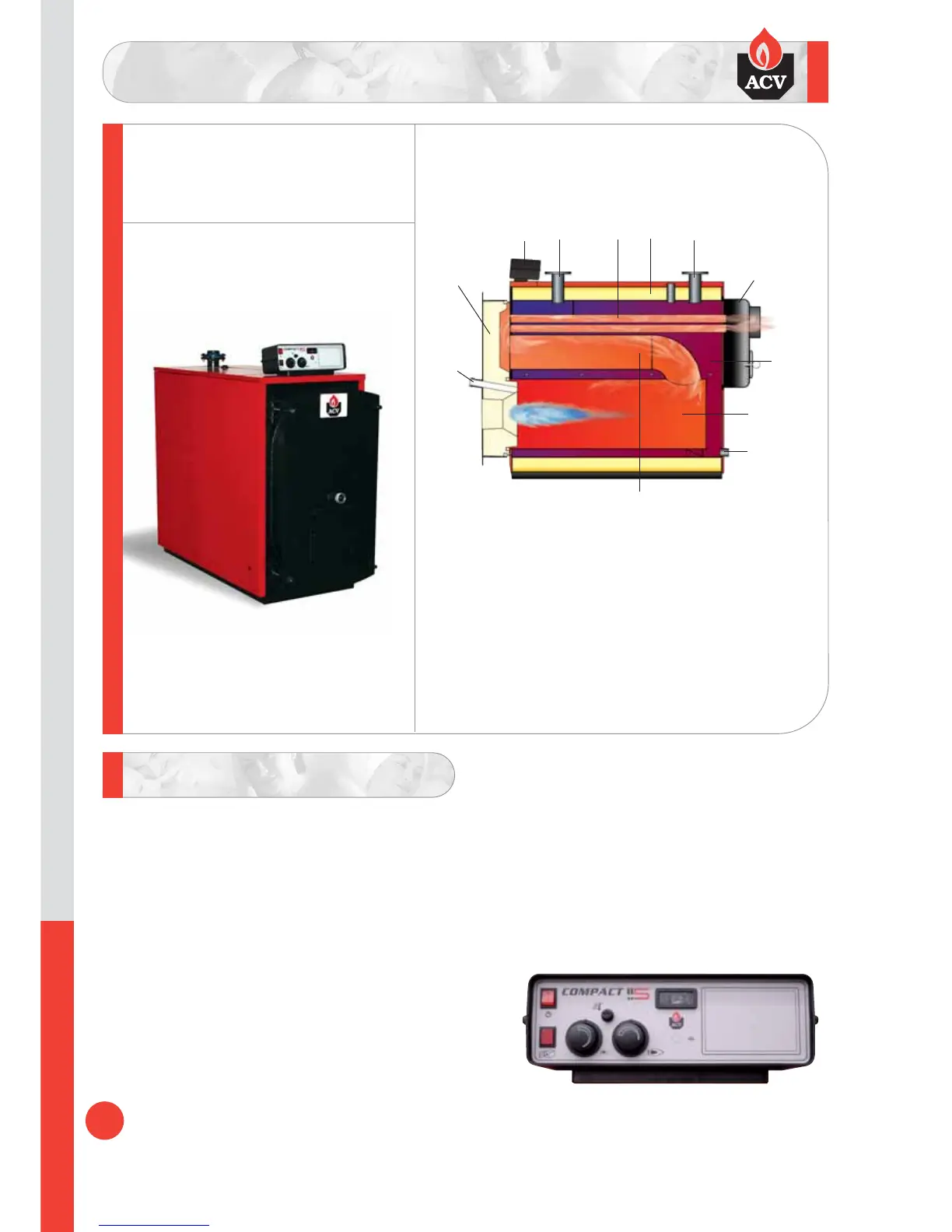

Product Description
Compact S
• Floor standing 3 pass high efficiency boiler
• Ideal low-cost choice for both replacement
and new installations
• Robust and reliable steel construction
• Choice of pressure jet oil or gas burner,high/low
and fully modulating versions available
• 9 models in 3 sizes offering outputs from 176 to 648 kW
• Ceramic fibre door insulation and glass wool insulation
to the boiler body
• Combustion chamber door equipped with facility for
left or right hand opening
• Control panel including thermostats,thermometer,
indicators,power socket and on/off switch
• Delivered to site as a bare shell
- Allows easy off-loading and positioning
- Insulation and casing are packed separately,for
assembly after installation thus avoiding damage
• Suitable for low return temperature installations
Control Panel
2
11
9
8
1
7
4
5
6
10
3
1. Flame inspection port
2. Combustion chamber
plate insulation
3. Control panel
4. Primary water return
connection
5. Flue tubes and
turbulators (3rd pass)
6. Mineral wool insulation
7. Primary water flow
connection
8. Flue connection
9. Primary circuit
10. Combustion chamber
(1st pass)
11. Primary drain connection
12. Heat exchanger (2nd pass)
The control panel includes :
- On/off switch
- Thermometer
- High/Low thermostats
- High limit thermostat
- Door open warning lamp
- Control fuse
12
Compact S
