Combined Boilers & Water Heaters
29
Product Description
Very high performance fully modulating combined boiler and water heater
Stainless steel Tank-in-Tank design
Low-NOx premix natural gas/LPG modulating burner,from 56 to 214 kW
Can also be used as a stand-alone water heater
Anti-Legionellae :hot water stored at a consistently high temperature
Built-in primary circuit shunt pump
Fully insulated with 50mm rigid polyurethane foam
Stove enamelled casing
Control panel including digital MCBA controller complete with self diagnostic system
and combined temperature and pressure gauge
Up to 3534 litres of hot water at 60
o
C in one hour
Vented or unvented use,with mains pressure SystemPaks available

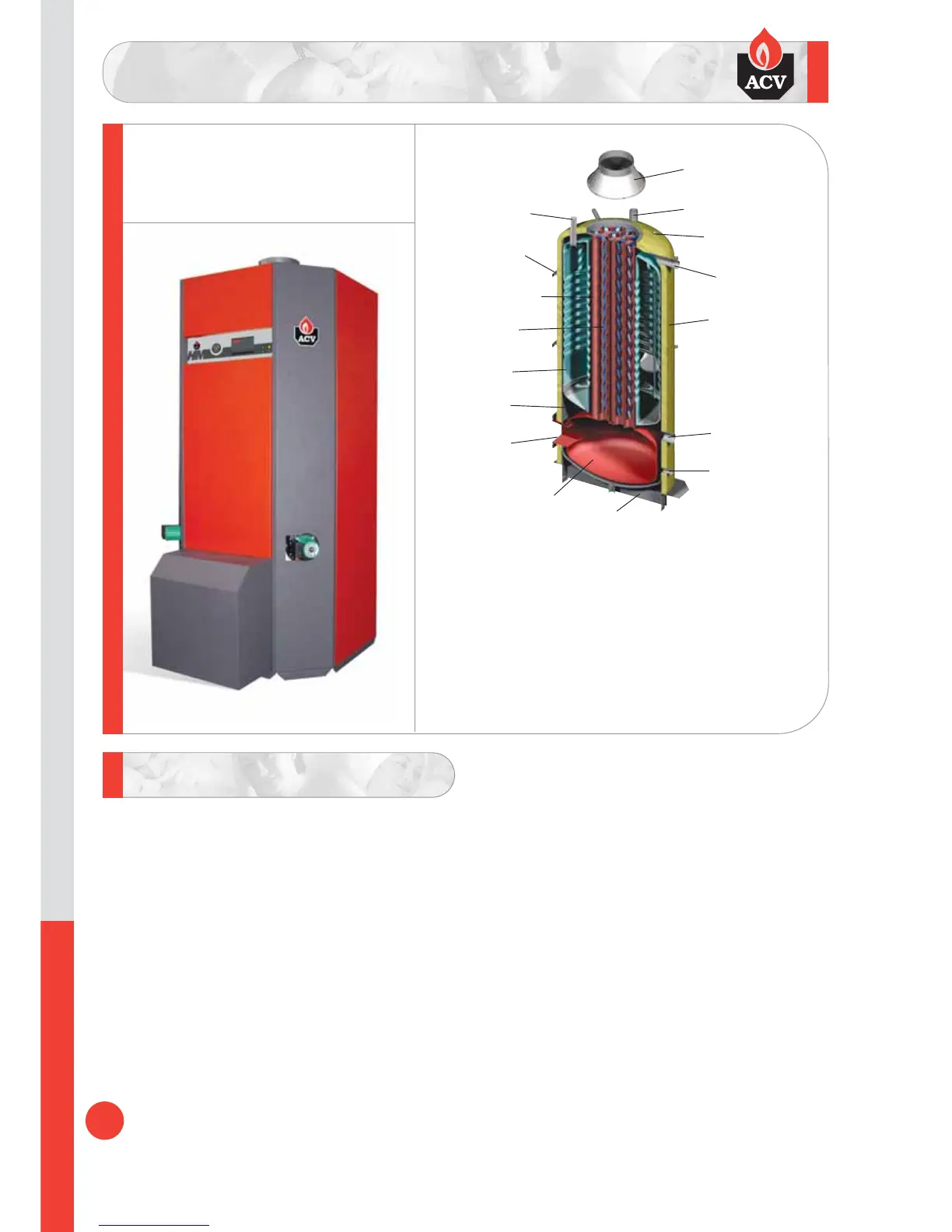

HeatMaster® 201
HeatMaster®
201
4
1. Primary NTC sensors 1 and
2 pocket
2. Domestic cold water inlet
3. Primary drain connection
4. Flue connection
5. Domestic hot water outlet and
hot water NTC3 pocket
6. Control panel mounting bracket
7. Primary water flow connection
8. Stainless steel flue turbulators
9. Flue pipes
10. Rigid polyurethane foam
insulation
11. Stainless steel inner tank
12. Primary heating circuit
13. Primary water return
connection
14. Combustion chamber
15. Steel base
16. Combustion chamber plate
2
1
7
10
13
3
15
14
16
12
11
8
9
6
5
