Domestic Hot Water Performances
The MCBA electronic controller regulates the boiler
(start-up,safety,modulation),the shunt pump and the
heating pump in response to hot water and heating
demand.The MCBA offers numerous advanced features :
- A large burner modulation range - down to less
than 30%
- Extremely accurate hot water priority :even very small
draw-offs are immediately detected
- The hot water tank is always kept at an optimum
temperature
- Excellent hot water performance
- Energy efficiency is optimised in both hot water and
heating modes.
The HeatMaster 201 is fitted with the BG2000-M
modulating burner,which has a metal fibre (NIT) flame
tube and smooth and near-silent ignition and operation -
ideal for use in applications where burner noise must be
kept to a minimum.
Exceptional Performance
Peak flow 40°C L/10' 1745
Peak flow 45°C L/10' 1489
Peak flow 60°C L/10' 971
Peak flow 40°C L/60' 6690
Peak flow 45°C L/60' 5667
Peak flow 60°C L/60' 3534
Continuous flow 40°C L/h 6117
Continuous flow 45°C L/h 5039
Continuous flow 60°C L/h 2914
Reheat time to 60°C min 10.5
HM201
Code 02607401
Fuel Natural gas/LPG
Burner options type BG2000-M
Input - heating kW 60 to 220
Input – hot water kW 60 to 240
Output - heating kW 55 to 198
Output – hot water kW 55 to 213
Primary capacity L 241
Total capacity L 641
Heating surface area
m
2
5.3
Primary circuit pressure drop mbar 240
DHW tank pressure drop mbar 190
Flue circuit pressure drop mbar 2.9
DHW connection (male BSP) Ø 2"
Primary connection (female BSP) Ø 2"
Flue connection (G) Ø mm 250
Flue connection options type B23/C13/C33/C53
Dimensions A mm 2085
B mm 2252
C mm 1020
D mm 1320
E mm 1020
F mm 600
H mm 1383
J mm 590
Weight empty Kg 550
Weight full Kg 1191
Minimum working gas pressure mbar 20
(Nat Gas)/37(LPG)
Gas flow rate – heating m
3
/h 6.35 to 23.28 (Nat Gas)
2.45 to 9 (LPG)
Gas flow rate – hot water m
3
/h 6.35 to 25.4 (Nat Gas)
2.45 to 9.81 (LPG)
Note : The above performances are based on the hot
water being blended at point of use,with a boiler
temperature of 90°C and a domestic cold water
inlet of 10°C.
HM201
Maximum Operating Pressure
Primary: 3 bar
Secondary: 10 bar
Factory Test Pressure
Primary: 4.5 bar
Secondary: 13 bar
Maximum Operating
Tem pe ratur e
90°C
Power Supply
230v 50Hz

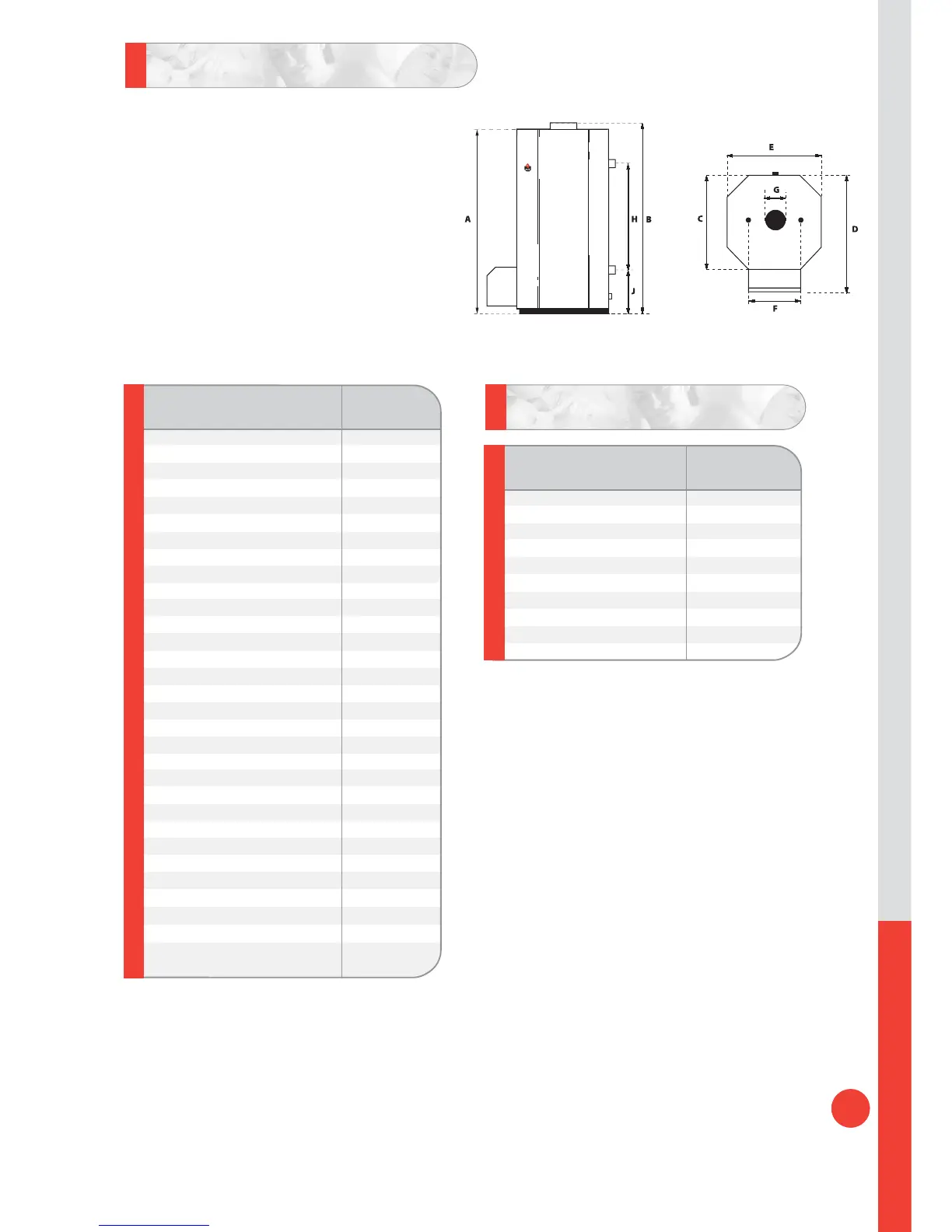

Technical Specifications
HeatMaster® 201
