ACV 2004 User Manual

Combined Boilers & Water Heaters
27

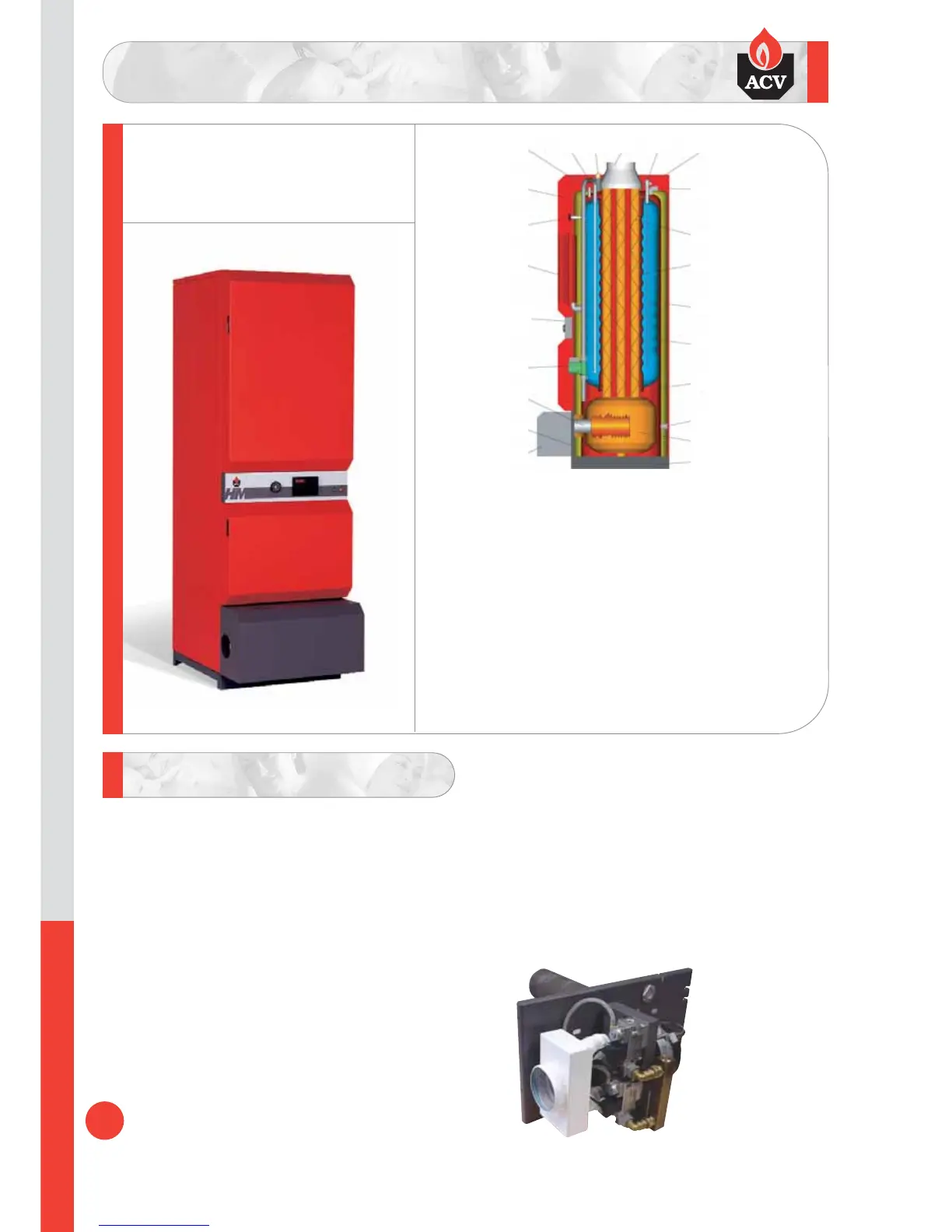

Product Description
1. Primary NTC sensors 1 and 2
pocket
2. Domestic cold water inlet
3. Automatic primary air vent
4. Flue connection
5. Domestic hot water outlet and
hot water NTC3 pocket
6. Stove enamelled metal casing
7. Primary water flow connection
8. Stainless steel flue turbulators
9. Flue pipes
10. Rigid polyurethane foam
insulation
11. Stainless steel inner tank
12. Primary heating circuit
13. Primary water return
connection
14. Combustion chamber
15. Steel base
16. Gas burner
17. Combustion chamber plate
18. NIT coated flame tube
19. Primary shunt pump
20. Control panel
21. Primary expansion vessels
22. Primary filling loop with
detachable hose and
non-return valve
23.Removable front panel
• High performance fully modulating combined boiler
and water heater
• Stainless steel Tank-in-Tank design
• Low-NOx premix natural gas/LPG modulating burners
- from 18.4 to 63 kW for HM71
- from 23 to 96.8 kW for HM101
• Can also be used as a stand-alone water heater
• Anti-Legionellae :hot water stored at a consistently
high temperature
• Built-in primary circuit shunt pump
• Fully insulated with rigid polyurethane foam
• Stove enamelled casing
• Control panel including digital MCBA controller complete
with self diagnostic system and combined temperature
and pressure gauge
• Available with balanced flue
• Up to 1219 litres of hot water at 60
o
C in one hour (HM71)
• Up to 1813 litres of hot water at 60
o
C in one hour (HM101)
• Vented or unvented use,with mains pressure
SystemPaks available
The MCBA electronic controller regulates the boiler (start-up,safety,
modulation),the shunt pump and the heating pump in response to
hot water and heating demand.The MCBA offers numerous advanced
features :
- A large burner modulation range - down to less than 30%
- Extremely accurate hot water priority :even very small draw-offs
are immediately detected
- The hot water tank is always kept at an optimum temperature
- Excellent hot water performance
- Energy efficiency is optimised in both hot water and heating modes.
The HeatMaster 71 and 101
are fitted with the BG2000-M
modulating burner,which
has a metal fibre (NIT) flame
tube and smooth and near-
silent ignition and operation
- ideal for use in applications
where burner noise must be
kept to a minimum.
1
23
22
21
20
2 3 4 5 6
7
8
9
10
11
12
13
14
15
19
18
17
16
Exceptional Performance
HeatMaster® 71 -101
HeatMaster®
71 - 101
