ACV 2004 User Manual

6
4
SLE SLE SLE SLE SL SL
130 160 210 240 320 420
Code 06604801 06604901 06605001 06605101 06604001 06606801
Total capacity L 130 161 203 242 318 413
Primary capacity L556277785555
Heating surface area m
2
1.03 1.26 1.54 1.94 2.65 3.24
Primary pressure drop mbar 17 22 37 45 90 95
Primary flow rate L/h 2100 2600 3500 4200 6200 6400
Maximum useable input from boiler kW 23 31 39 53 73 88.5
Primary connections (female BSP) Ø 1" 1" 1" 1" 1
1
/
2
"1
1
/
2
"
Hot water connections (male BSP) Ø1"1"1"1"1
1
/
2
"1
1
/
2
"
Immersion heater connection (female BSP) Ø 1
1
/
2
"1
1
/
2
"1
1
/
2
"1
1
/
2
"n/a n/a
Dimensions A mm 960 1160 1435 1680 1550 1975
B mm 555 555 555 555 660 660
C mm 525 725 997 1244 1030 1455
Weight empty Kg55657587141167
Weight full Kg 185 226 278 329 459 580
SLE SLE SLE SLE SL SL
130 160 210 240 320 420
Peak flow 40°C L/10’ 236 321 406 547 922 1195
Peak flow 45°C L/10’ 202 275 348 469 790 1012
Peak flow 60°C L/10’ 117 161 209 272 504 620
Peak flow 1st hour 40°C L/60’ 784 1063 1349 1820 2666 3151
Peak flow 1st hour 45°C L/60’ 672 911 1156 1560 2285 2608
Peak flow 1st hour 60°C L/60’ 384 549 689 913 1368 1513
Continuous flow 40°C L/h 658 890 1132 1527 2093 2536
Continuous flow 45°C L/h 564 763 970 1309 1794 2058
Continuous flow 60°C L/h 320 465 576 769 1037 1153
Initial heat up time from 10 to 85°C min222220202324

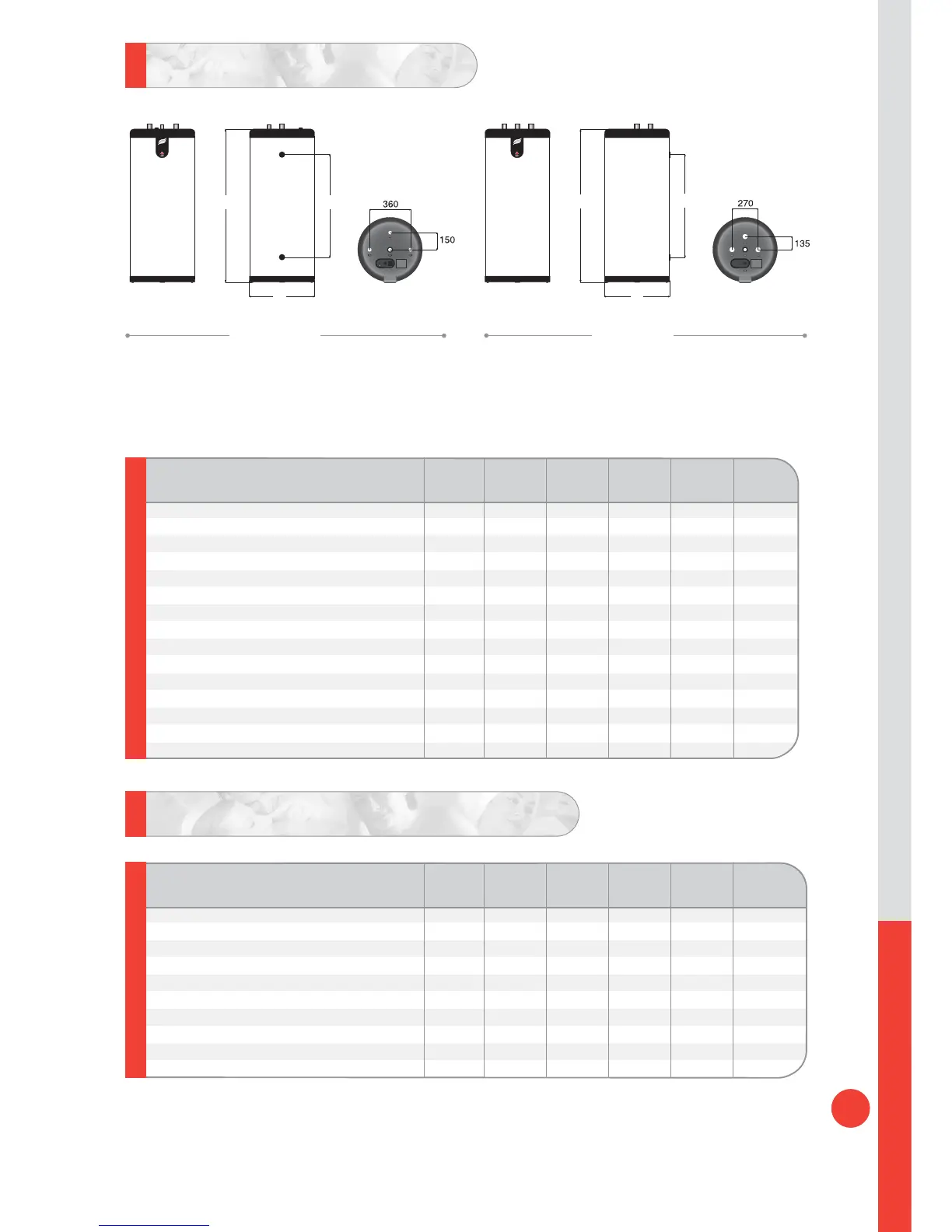

Technical Specifications
Domestic Hot Water Performances
SLE 130 - 240
Left Side
Maximum Operating Pressure
Primary: 3 bar - SLE
4 bar - SL
Secondary: 10 bar
Factory Test Pressure
Primary: 4.5 bar - SLE
6.0 bar - SL
Secondary: 13 bar
Maximum Operating
Tem pe ratur e
90°C
SL 320 - 420
Right Side
A
C
B
Front
Front
Note: The above performances are based on a primary flow temperature of 85°C and a domestic cold water inlet of
10°C,without the use of a thermostatic mixing valve on the domestic hot water outlet.
A
B
C
SmartLine
