ACV 2004 User Manual

Combined Boilers & Water Heaters
23

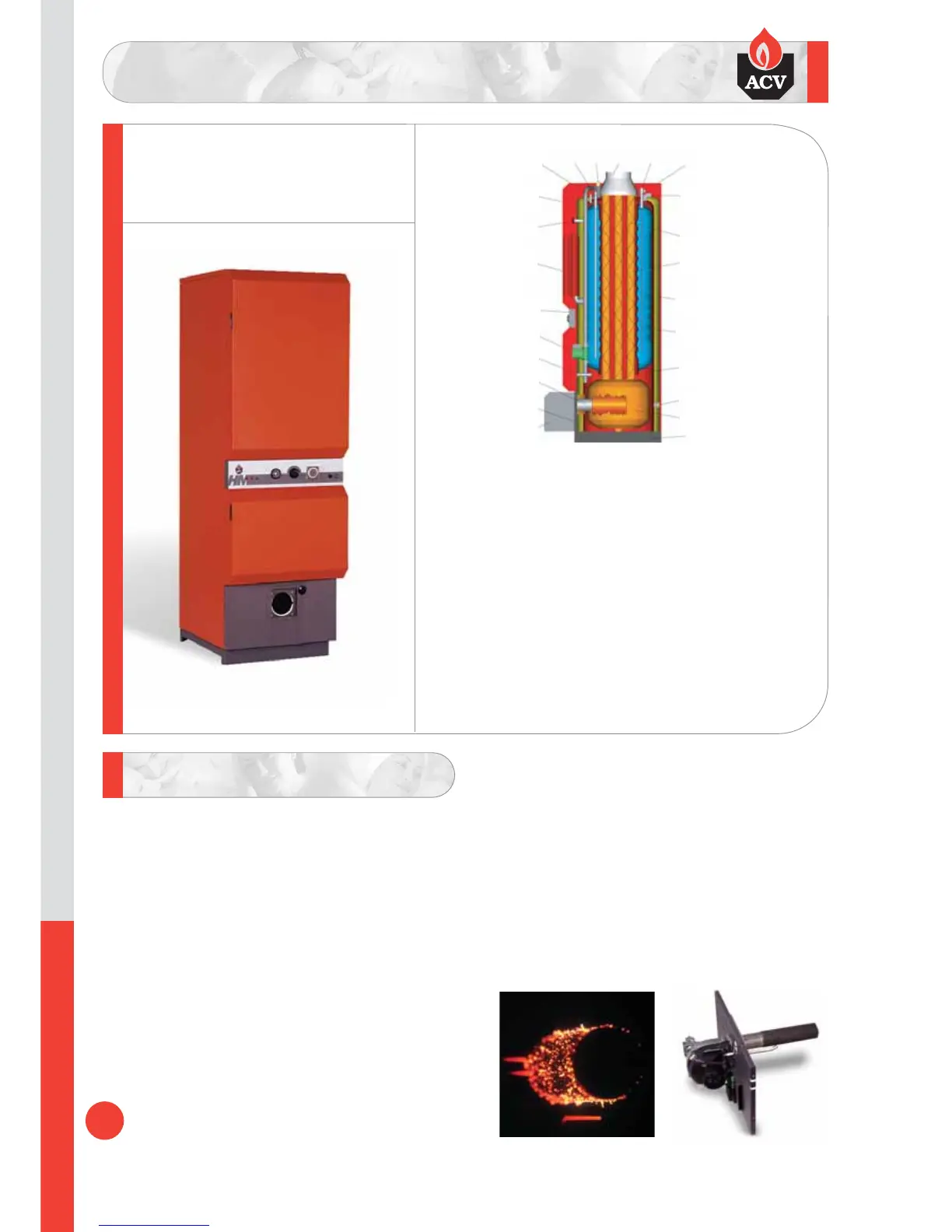

Product Description
HeatMaster®
70 - 100
1. High limit thermostats pocket
2. Domestic cold water inlet
3. Automatic primary air vent
4. Flue connection
5. Domestic hot water outlet
and temperature and pressure
relief valve connection
6. Stove enamelled metal casing
7. Primary water flow
connection
8. Stainless steel flue turbulators
9. Flue pipes
10. Rigid polyurethane foam
insulation
11. Stainless steel inner tank
12. Primary heating circuit
13. Primary water return
connection
14. Combustion chamber
15. Steel base
16. Oil or gas burner
17. Combustion chamber plate
18. NIT coated flame tube
(BG2000-S only)
19. Control thermostat pocket
20. Primary shunt pump
21. Control panel
22. Primary expansion vessels
23. Primary filling loop with
detachable hose and
non-return valve
24. Removable front panel
2
3
45 6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
24
BG2000-S/70 and BG2000-S/100 burner
• High performance combined boiler and water heater
• Stainless steel Tank-in-Tank design
• Choice of burner :
- Low-NOx premix gas or LPG (BG2000-S),
- Pressure jet natural gas or LPG (Riello)
- Pressure jet 28 sec or 35 sec oil (Riello)
• Can also be used as a stand-alone water heater
• Anti-Legionellae :hot water stored at a consistently
high temperature
• Built-in primary circuit shunt pump
• Fully insulated with rigid polyurethane foam
• Stove enamelled casing
• Control panel including thermostats,combined
temperature and pressure gauge,indicators
and on/off switch
• Available with balanced flue (BG2000-S burner only)
• 63 kW output and up to 1219 litres of hot water at
60
o
C in one hour (HM70)
• 96.3 kW output and up to 1813 litres of hot water at
60
o
C in one hour (HM100)
• Vented or unvented use,with mains pressure
SystemPaks available
ACV has developed these burners specially for the
HeatMaster 70 and 100 models.Part of the BG 2000-S air/gas
premix burner range,they have a metal fibre (NIT) flame tube
and smooth and near-silent ignition and operation.They are
ideal for use in applications where burner noise must be kept
to a minimum.
1
24
23
22
HeatMaster® 70 -100
