ACV 2004 User Manual

24
22

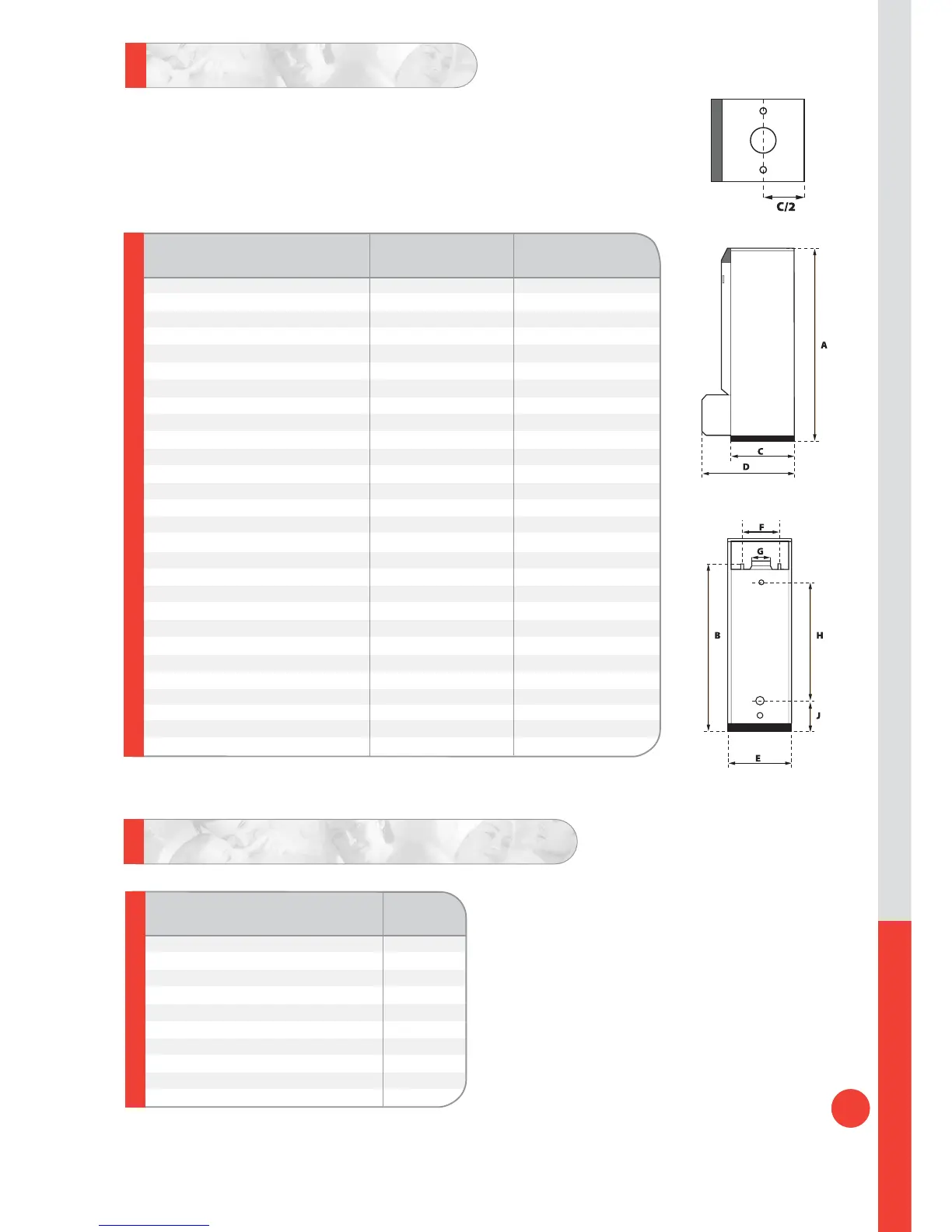

Technical Specifications
HM60 HM60
Oil Gas/LPG
Code 04124101 04124101
Fuel Oil (28 sec or 35 sec) Natural gas/LPG
Burner options type Riello BG2000-S or Riello
Input kW 69.9 69.9
Maximum output kW 62.5 63.0
Primary capacity L 82 82
Total capacity L 162 162
Heating surface area
m
2
2.46 2.46
Primary circuit pressure drop mbar 54 54
DHW tank pressure drop mbar 45 45
Flue circuit pressure drop mbar 0.6 0.6
DHW connection (male BSP) Ø
3
/
4
”
3
/
4
”
Primary connection (female BSP) Ø 1
1
/
2
” 1
1
/
2
”
Flue connection (G) Ø mm 150 150
Flue connection options type B23 B23/C13/C33/C53
Dimensions A mm 1698 1698
B mm 1583 1583
C mm 538 538
D mm 791 801(BG 2000)/838(Riello)
E mm 540 540
F mm 390 390
H mm 1098 1098
J mm 281 281
BG2000 air intake connection Ø mm n/a 80
Weight empty Kg 229 229
Weight full Kg 391 391
Minimum working gas pressure mbar n/a 20(Nat Gas)/37(LPG)
Gas flow rate m
3
/h n/a 7.40(Nat Gas/2.86(LPG)
HM60
Peak flow 40°C L/10' 474
Peak flow 45°C L/10' 378
Peak flow 60°C L/10' 245
Peak flow 40°C L/60' 1942
Peak flow 45°C L/60' 1656
Peak flow 60°C L/60' 1106
Continuous flow 40°C L/h 1835
Continuous flow 45°C L/h 1573
Continuous flow 60°C L/h 1101
Reheat time to 60°C min 9
(all burners)
Maximum Operating Pressure
Primary: 3 bar
Secondary: 10 bar
Factory Test Pressure
Primary: 4.5 bar
Secondary: 13 bar
Maximum Operating Temperature
90°C
Power Supply
230v 50Hz
Domestic Hot Water Performances
Note : These performances are based on the hot water being
blended at point of use,with a boiler temperature of
90
°C and a domestic cold water inlet of 10°C.
HeatMaster® 60
