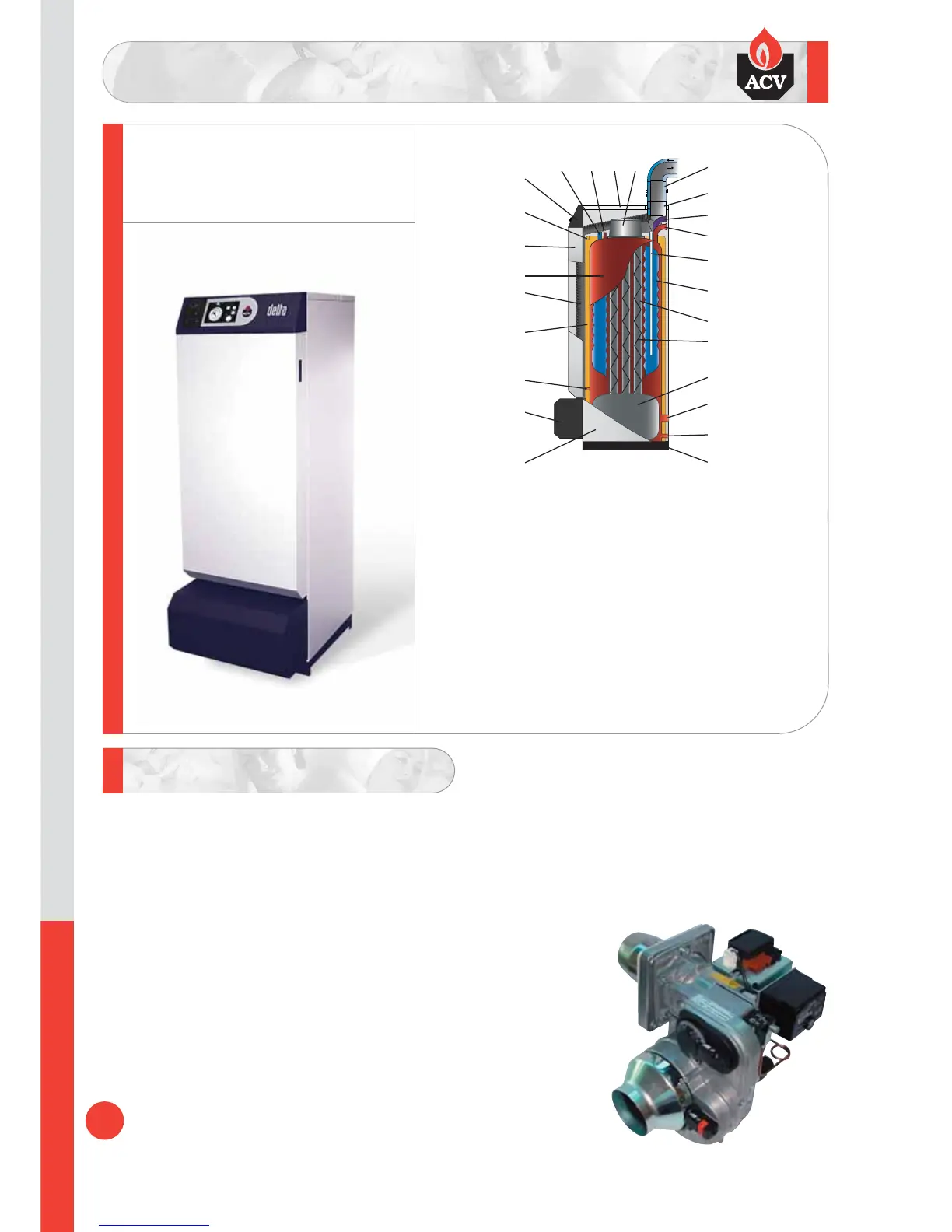

Product Description
Delta Performance
FV/MV
1. Domestic hot water outlet
2. Removable top panel
3. Flue collector with removable
top
4. Flue gas analysis section
5. Flue outlet / air intake
6. Top primary water return
connection
7. Primary water flow connection
8. Domestic cold water inlet
9. Stainless steel inner tank
10. Flue pipes
11. Stainless steel flue turbulators
12. Combustion chamber
13. Alternative primary water
return connection
14. Primary drain connection
15. Steel base
16. Side panel
17. Oil or gas burner
18. Control thermostat (FV) or
control potentiometer
(MV) pocket
19. Rigid polyurethane foam
insulation
20. Air intake hose
21. Primary heating circuit
22. Removable front panel
23. Manual reset high limit
thermostat
24. Control panel
25. Lower limit thermostat and
thermometer pocket
• Balanced flue combined boiler and water heater
• High efficiency
• Stainless steel Tank-in-Tank design
• Choice of burner :
- BG2000-M Low-NOx premix modulating gas or LPG
- BMV pressure jet 28 sec oil (kerosene)
• Choice of 3 flue options (see flue section on page 47):
- vertical or horizontal (all models)
- twin-tube parallel (gas/LPG only)
• Easy to maintain,with no requirement for flue removal
during servicing
• Anti-Legionellae :hot water stored at consistently
high temperature
• Fully insulated with rigid polyurethane foam
• Stove enamelled casing
• Control panel including thermostats,thermometer,
indicators and on/off switch
• 32 to 46 kW output,with modulation down to 9.5 or 14.3 kW
for gas models
• Can be used in battery formation for high output installations
• Vented or unvented use,with mains pressure
SystemPaks available
• Primary heating sealed system kits also available
24
23
22
21
20
19
18
17
16
1 25 2 3
4
5
6
7
8
9
10
11
12
13
14
15
BMV1 and BMV2 Oil Burners
These burners set new standards in oil burner
technology.Operating with a transparent flame and a
NOx output less than 120 mg/kWh and with low noise
levels,they allow easy commissioning and maintenance
and offer exceptional efficiency.
Delta Performance FV/MV
