Hot Water Storage Tanks
3
• Utilises ACV Tank-in-Tank technology for fast heat up and rapid recovery
• Two different models available :SLE and SL
• SLE includes 3kW immersion heater,located in the bottom of tank in the
primary water
• 6 models of 130,160,210,and 240 litres (SLE),320 and 420 litres (SL)
• High quality 50mm polyurethane insulation
• Low heat loss (only 8.6°C over 24 hours for the SLE240)
• Hard-wearing polypropylene finish
• Stainless steel construction - no need for sacrifical anodes
• Vented or unvented use,with mains pressure SystemPak available
• Large heating surface area means reduced boiler cycling
• Domestic or commercial use
Product Description
SmartLine
Range
Unvented Hot Water
All SmartLine tanks can be used as unvented hot
water tanks by the addition of a Mains Pressure
SystemPak,containing the following
components :
• Combined pressure
reducing valve and strainer
• Cold water inlet check
valve
• Cold water expansion relief
valve
• Expansion vessel
• Temperature and pressure
relief valve
• Tundish

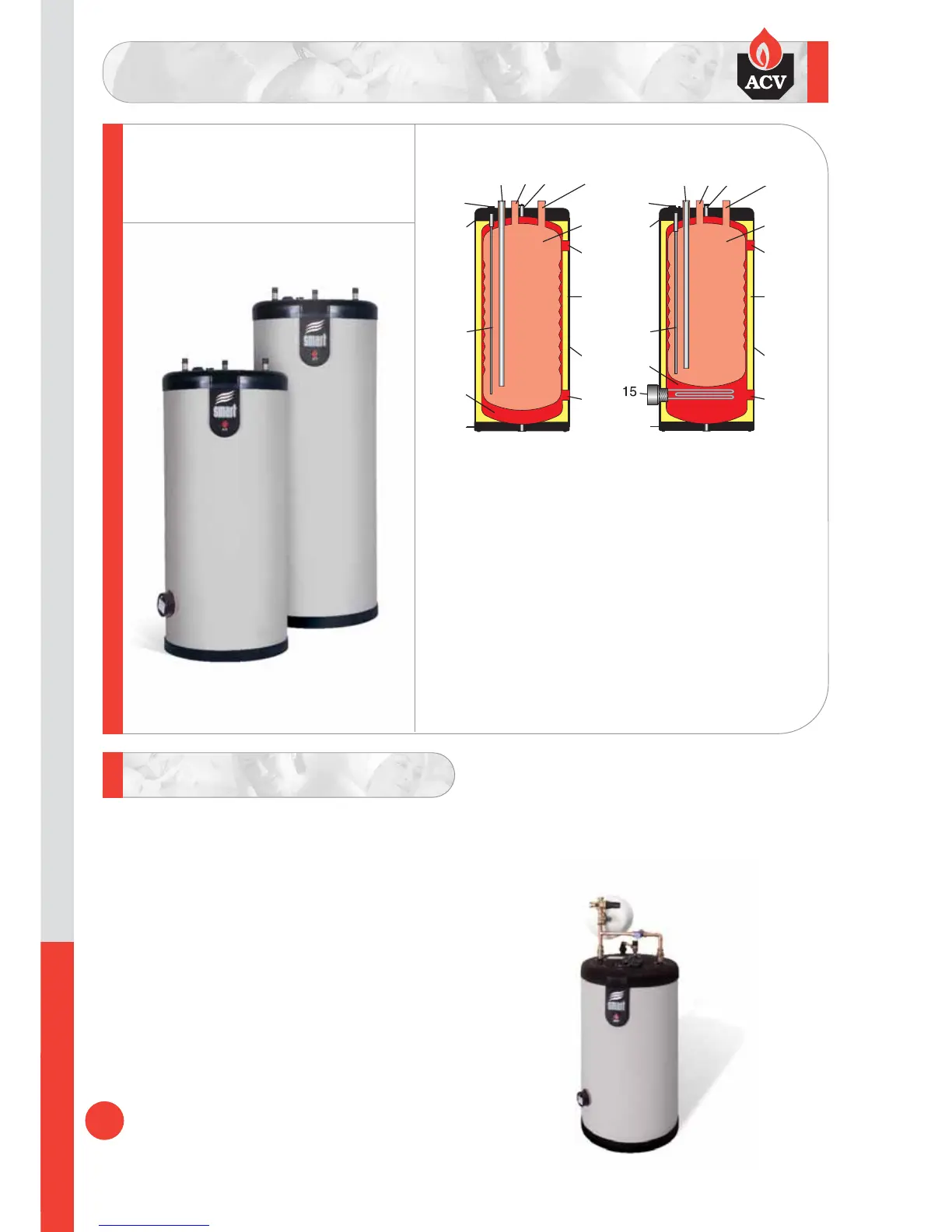

1. Control thermostat,high
limit thermostat and wiring
connection
2. Domestic cold water inlet
3. DHW recirculation or
temperature and pressure
relief valve connection
4. Primary air vent
5. Domestic hot water outlet
6. Stainless steel inner tank
7. Primary water flow
connection
8. 50mm polyurethane
insulation
9. Shock-proof, thick
polypropylene outer casing
10. Primary water return
connection
11. Rigid PVC base
12. Steel outer tank
13. Thermostat pocket
14. Rigid PVC top cover
15. Immersion heater
connection (SLE only)
SL SLE
1
2
3 4 5
7
8
9
10
14
13
11
12
1
14
13
12
11
6
SmartLine
5
432
6
7
8
9
10
