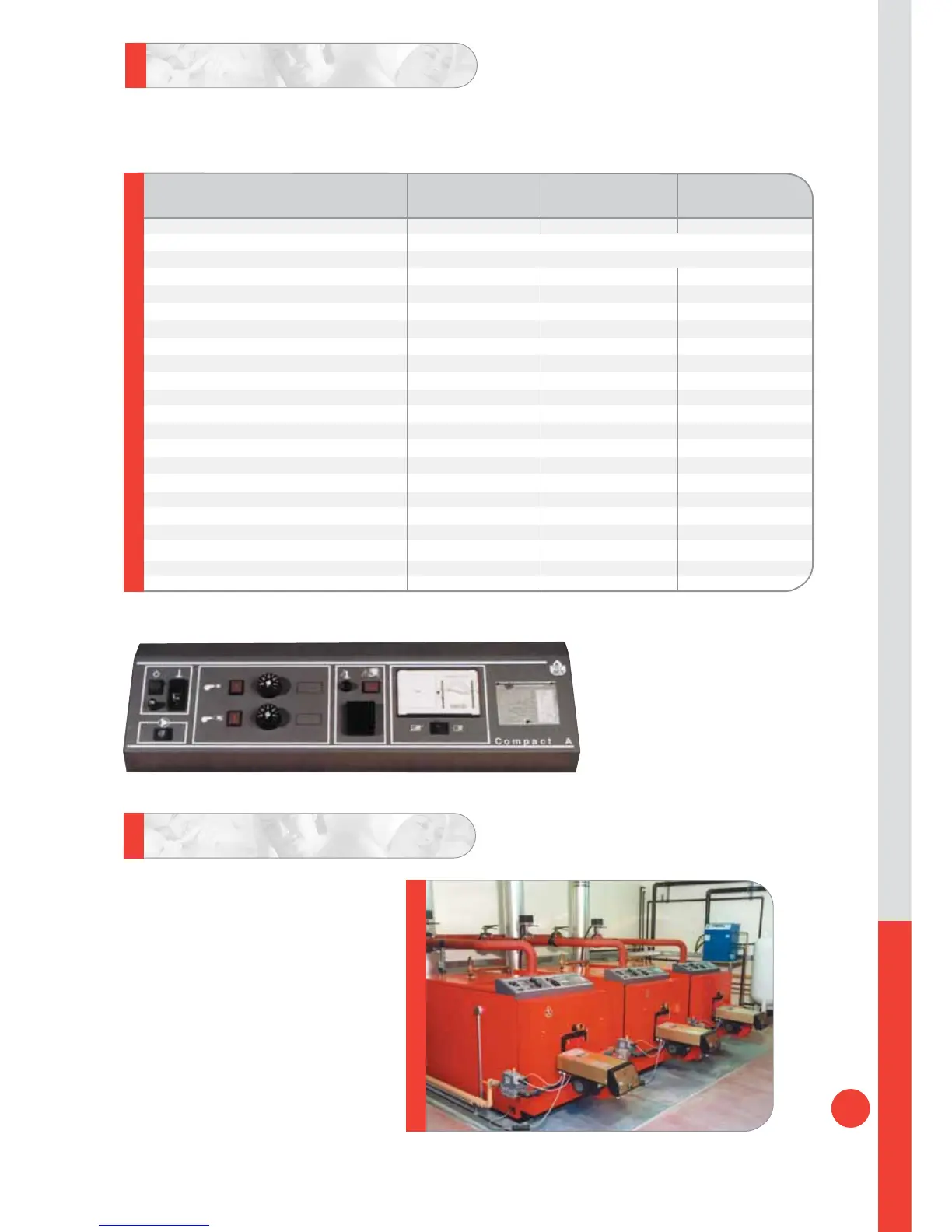

Technical Specifications
Maximum Operating Pressure
Primary: 5 bar
Factory Test Pressure
Primary: 7.5 bar
Maximum Operating Temperature
90°C
Code 04120101 04120201 04120301
Fuel Oil (28 sec or 35 sec) or Natural gas/LPG
Burner options Riello oil - Riello pressure jet natural gas/LPG
Minimum input kW 82 134 197
Maximum input kW 109 161 260
Minimum output kW 74 115 185
Maximum output kW 100 140 235
Mass rate of combustion products - gas Kg/h 189 254 451
Mass rate of combustion products – oil Kg/h 199 288 466
Total capacity L 102 122 150
Primary connections (flange) Ø DN50 DN50 DN65
Safety valve connection (female BSP) Ø 1” 1” 1”
Open vent connection (female BSP) Ø 1” 1” 1”
Primary pressure drop mbar 2 - 5 5 - 11 11 - 31
Flue circuit pressure drop mbar 0.22 – 0.48 0.68 – 0.96 1.83 – 2.5
Flue connection mm 200 200 200
Dimensions (excluding burner)
Length mm 1295 1495 1795
Height mm 1000 1000 1000
Width mm 796 796 796
Weight empty (excluding burner) Kg 315 380 470
Weight full (excluding burner) Kg 417 502 620
CA100 CA150 CA200
Control Panel
The control panel includes :
- On/off switch
- Thermometer
- High/Low thermostats
- High/Low indicator lamps
- High limit thermostat
- Door open warning lamp
Birley Secondary School,Sheffield
A temporary plantroom housed three CA200
boilers providing 705kW of heating for the
temporary teaching classrooms whilst the
school was rebuilt.The boilers were then
moved into their permanent home in a new
plantroom once the building was completed.
Compact A
Project Reference
