Technical Specifications
Maximum Operating Pressure
Primary: 3 bar
Secondary: 10 bar
Factory Test Pressure
Primary: 4.5 bar
Secondary: 13 bar
Maximum Operating Temperature
90°C
Power Supply
230v 50Hz
HM30 G HM30 GP
Peak flow 40°C L/10' 382 382
Peak flow 45°C L/10' 326 326
Peak flow 60°C L/10' 203 203
Peak flow 40°C L/60' 1187 1204
Peak flow 45°C L/60' 1016 1030
Peak flow 60°C L/60' 686 696
Continuous flow 40°C L/h 966 986
Continuous flow 45°C L/h 828 845
Continuous flow 60°C L/h 580 592
Reheat time to 90°C min 32 32
HM30 G HM30 GP
Code 02400101 03400101
Fuel Natural Gas LPG
Burner options type Atmospheric Atmospheric
Input kW 39.2 40
Maximum output kW 34.2 34.9
Primary capacity L 87.5 87.5
Total capacity L 163.5 163.5
Heating surface area
m
2
2.46 2.46
Primary circuit pressure drop mbar 29 29
DHW tank pressure drop mbar 20 20
Flue circuit pressure drop mbar Nil Nil
DHW connection (male BSP) Ø
3
/
4
”
3
/
4
”
Primary connection (female BSP) Ø 1
1
/
4
” 1
1
/
4
”
Flue connection (G) Ø mm 150 150
Flue connection options type B11 BS B11 BS
Dimensions A mm 1691 1691
B mm 1513 1513
C mm 538 538
D mm 801 801
E mm 540 540
F mm 390 390
H mm 898 898
J mm 286 286
Weight empty Kg 190 190
Weight full Kg 353.5 353.5
Minimum working gas pressure mbar 20 37
Burner pressure mbar 12.3 28.5
Gas flow rate m
3
/h 4.13 1.64
Domestic Hot Water Performances
• Burner design ensures a good flame
distribution in the combustion chamber
• Stainless steel provides a long working life
• Electronic ignition
• Gas burner preset in the factory
HM30 G – Natural gas HM30 GP – LPG
Note : The above performances are based on the hot
water being blended at point of use,with a boiler
temperature of 90°C and a domestic cold water
inlet of 10°C.
Atmospheric Gas Burners

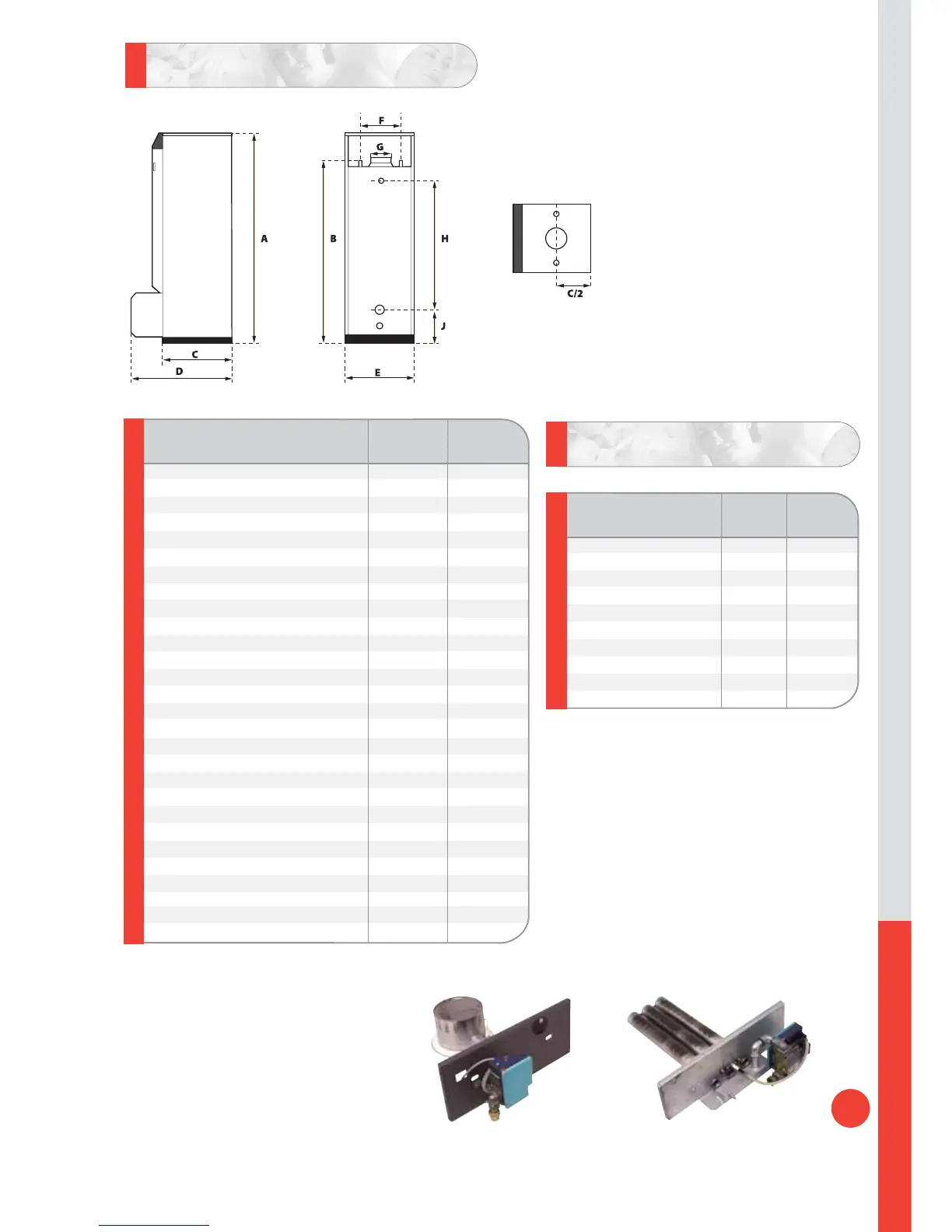

HeatMaster® 30

ACV 2004 Specifications
