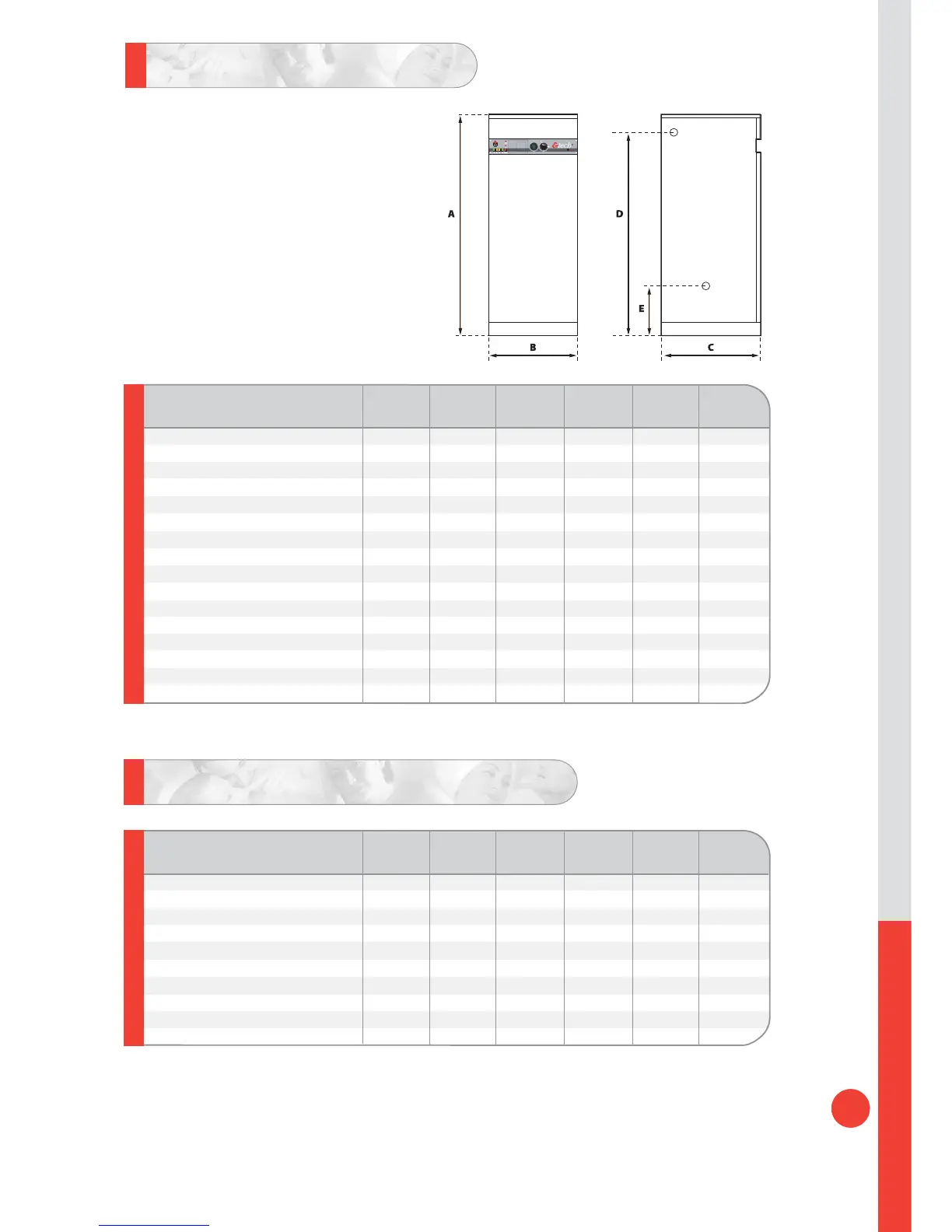

Technical Specifications
Maximum Operating Pressure
Primary: 3 bar
Secondary: 10 bar
Factory Test Pressure
Primary: 4.5 bar
Secondary: 13 bar
Maximum Operating Temperature
90°C
Note : The above performances are based on the hot water being blended at point of use,with a boiler
temperature of 85°C and a domestic cold water inlet of 10°C.
Domestic Hot Water Performances
E-Tech S E-Tech S E-Tech S E-Tech S E-Tech S E-Tech S
160 240 290 290 380 380
Single Phase Single Phase Single Phase Tri-Phase Single Phase Tri-Phase
Code
00601001 00601101 00601201 00601201 00601301 00601301
Maximum output kW 14.4 14.4 14.4 28.8 14.4 28.8
Nominal supply V 230 230 230 3 x 400 + N 230 3 x 400 + N
Nominal supply amps 63 63 63 3 x 42 63 3 x 42
Primary capacity L 55 68 97 97 127 127
Total capacity L 161 242 295 295 394 394
Heating surface area
m
2
1.26 1.87 2.0 2.0 2.6 2.6
DHW connection (male BSP) Ø
3
/
4
”
3
/
4
” 1” 1” 1
1
/
2
” 1
1
/
2
”
Primary connection (female BSP) Ø 1" 1" 1" 1" 1" 1"
Dimensions A mm 1432 1953 1784 1784 2134 2134
B mm 620 620 720 720 720 720
C mm 720 720 800 800 800 800
D mm 1282 1800 1627 1627 1985 1985
E mm 290 290 300 300 300 300
Weight empty Kg 115 155 202 202 230 230
Weight full Kg 276 397 497 497 524 524
E-Tech S E-Tech S E-Tech S E-Tech S E-Tech S E-Tech S
160 240 290 290 380 380
Single Phase Single Phase Single Phase Tri-Phase Single Phase Tri-Phase
Peak flow 40°C L/10' 310 532 645 660 855 870
Peak flow 45°C L/10' 250 452 548 561 725 739
Peak flow 60°C L/10' 168 294 356 365 468 472
Peak flow 40°C L/60' 690 880 990 1305 1200 1516
Peak flow 45°C L/60' 570 750 845 1090 1021 1270
Peak flow 60°C L/60' 375 465 527 625 636 752
Continuous flow 40°C L/h 413 413 413 826 413 826
Continuous flow 45°C L/h 354 354 354 708 354 708
Continuous flow 60°C L/h 248 248 248 415 248 448
Heat up time to 80°C min 61 93 113 91 150 120
