ACV 2004 User Manual

42
40

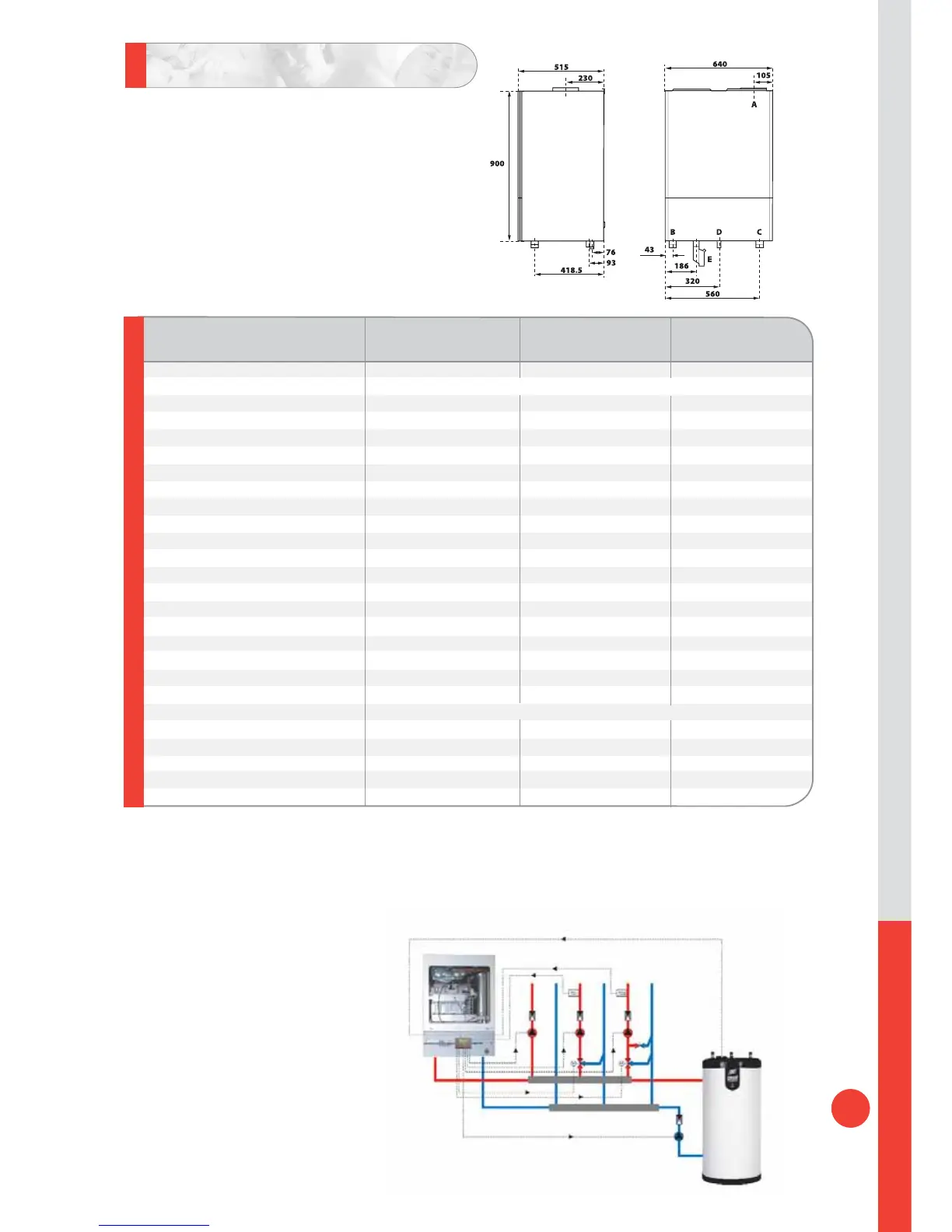

Technical Specifications
Maximum Operating Pressure
Primary: 4 bar
Factory Test Pressure
Primary: 6 bar
Maximum Operating Temperature
90°C
Power Supply
230v 50Hz
* 1 bend is equivalent in length to 1m of flue
Code 05602901 05603001 05603101
Fuel Natural gas / LPG
Maximum Input kW 45 60 80
Maximum output kW 13 13 20
Maximum output 80/60
o
C kW 43.7 58.9 78.2
Minimum output 80/60
o
C kW 12.6 12.6 19.5
Efficiency max output 80/60
o
C % 97 98.1 97.7
Efficiency min output 80/60
o
C % 96.7 96.7 97.5
Efficiency max output 50/30
o
C % 104.2 103.9 103.4
Efficiency min output 50/30
o
C % 107.3 107.3 106.8
CO emissions (RAL-UZ 61) mg/kWh 14 27 30
NOx emissions (RAL-UZ 61) mg/kWh 45 55 60
Mass rate of combustion products Kg/h 68 91 121
Flue circuit pressure drop mbar 1.0 1.4 1.5
Primary circuit pressure drop mbar 20 50 70
Flue gas temp 75/60
o
C
o
C58 64 64
Total capacity L 8 8 10
Primary connections (B flow,C return) Ø 1
1
/
4
” 1
1
/
4
” 1
1
/
4
”
Gas connection (D) Ø mm 22 22 22
Condense trap connection (E) Ø mm 25 25 25
Minimum working gas pressure mbar 20 (natural gas) / 37 (LPG)
Maximum gas flow rate m
3
/h 4.7 (NG) / 3.5 (LPG) 6.3 (NG) / 4.7 (LPG) 8.3 (NG) / 6 (LPG)
Flue connection (A) Ø mm 100/150 100/150 100/150
Maximum flue length * m 34 24 25
Weight empty Kg 87 88 101
Weight full Kg 95 96 111
Prestige 47
Prestige 64
Prestige 85
Prestige boilers can be combined with any
of the ACV range of hot water storage tanks,
in particular the SmartLine range of tanks,to
provide full DHW capabilities.ACV hot water
tanks are ideally suited for use with
condensing boilers because the large heat
exchange area means that the low return
temperatures required by the boiler can be
achieved.
Domestic Hot Water Requirement?
Prestige 47-64-85
