ACV 2004 User Manual

6

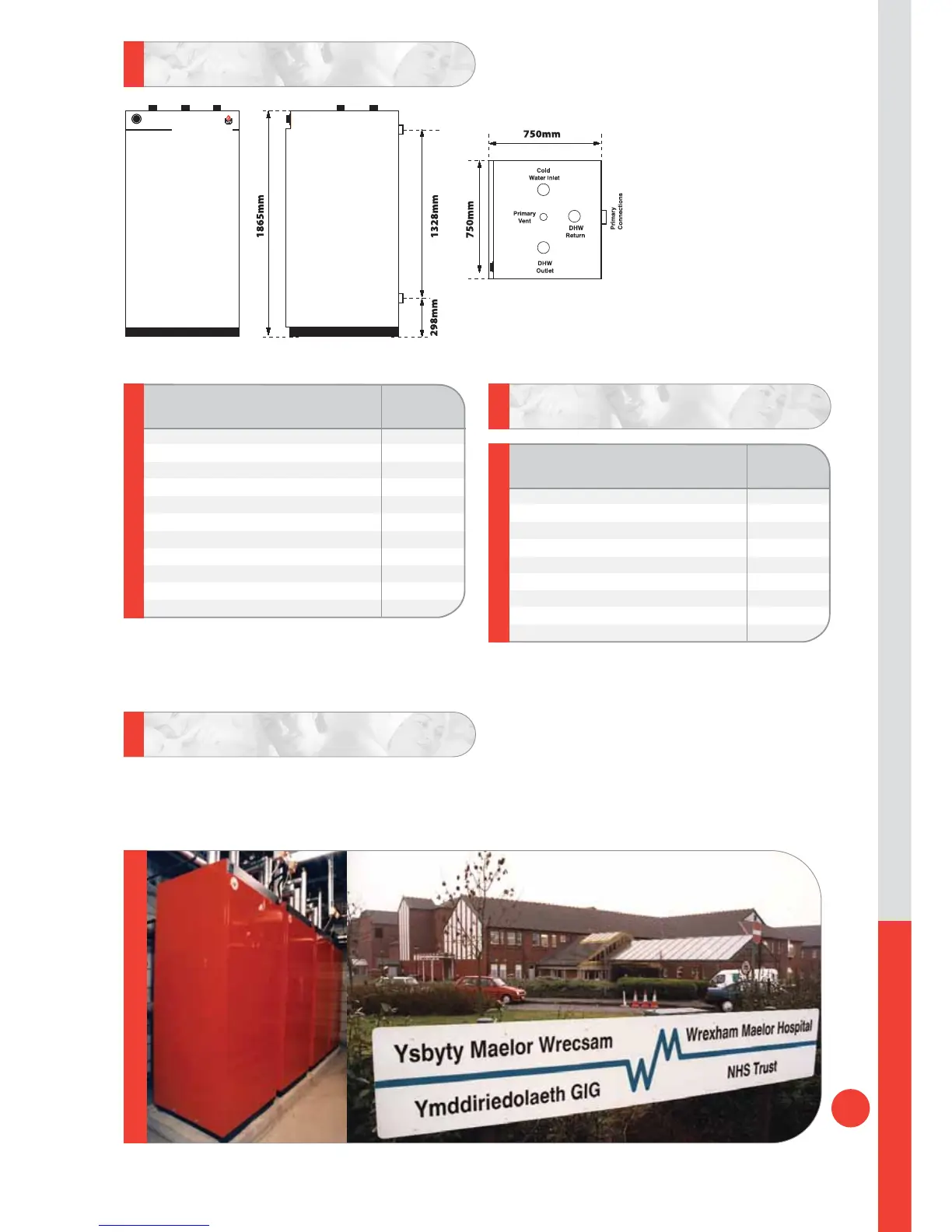

Right Hand Side
Top
Front
Maximum Operating Pressure
Primary: 5 bar
Secondary: 10 bar
Factory Test Pressure
Primary: 7.5 bar
Secondary: 13 bar
Maximum Operating Temperature
90°C
HR 601
Code 06204401
Total capacity L 606
Primary capacity L 161
Heating surface area m
2
3.58
Primary pressure drop mbar 92
Primary flow rate L/h 7200
Max.absorbed boiler output kW 88
Primary connections (female BSP) Ø 2"
Hot water connections (male BSP) Ø 1
1
/
2
"
Weight empty Kg 240
Weight full Kg 846
Wrexham Maelor Hospital,North Wales
Four HR601's installed in battery formation providing 2824 litres of hot water at 60°C in 10 minutes and a continuous
output of 4928 litres per hour for the new extension to this general hospital in North Wales.
Technical Specifications
HR 601
Peak flow 40°C L/10’ 1345
Peak flow 45°C L/10’ 1153
Peak flow 60°C L/10’ 706
Peak flow 1st hour 40°C L/60’ 3437
Peak flow 1st hour 45°C L/60’ 2946
Peak flow 1st hour 60°C L/60’ 1733
Continuous flow 40°C L/h 2511
Continuous flow 45°C L/h 2152
Continuous flow 60°C L/h 1232
HR 601
Note: The above performances are based on a primary flow temperature of 85°C and a domestic cold water inlet of 10°C,
without the use of a thermostatic mixing valve on the domestic hot water outlet.
Project Reference
Domestic Hot Water Performances
