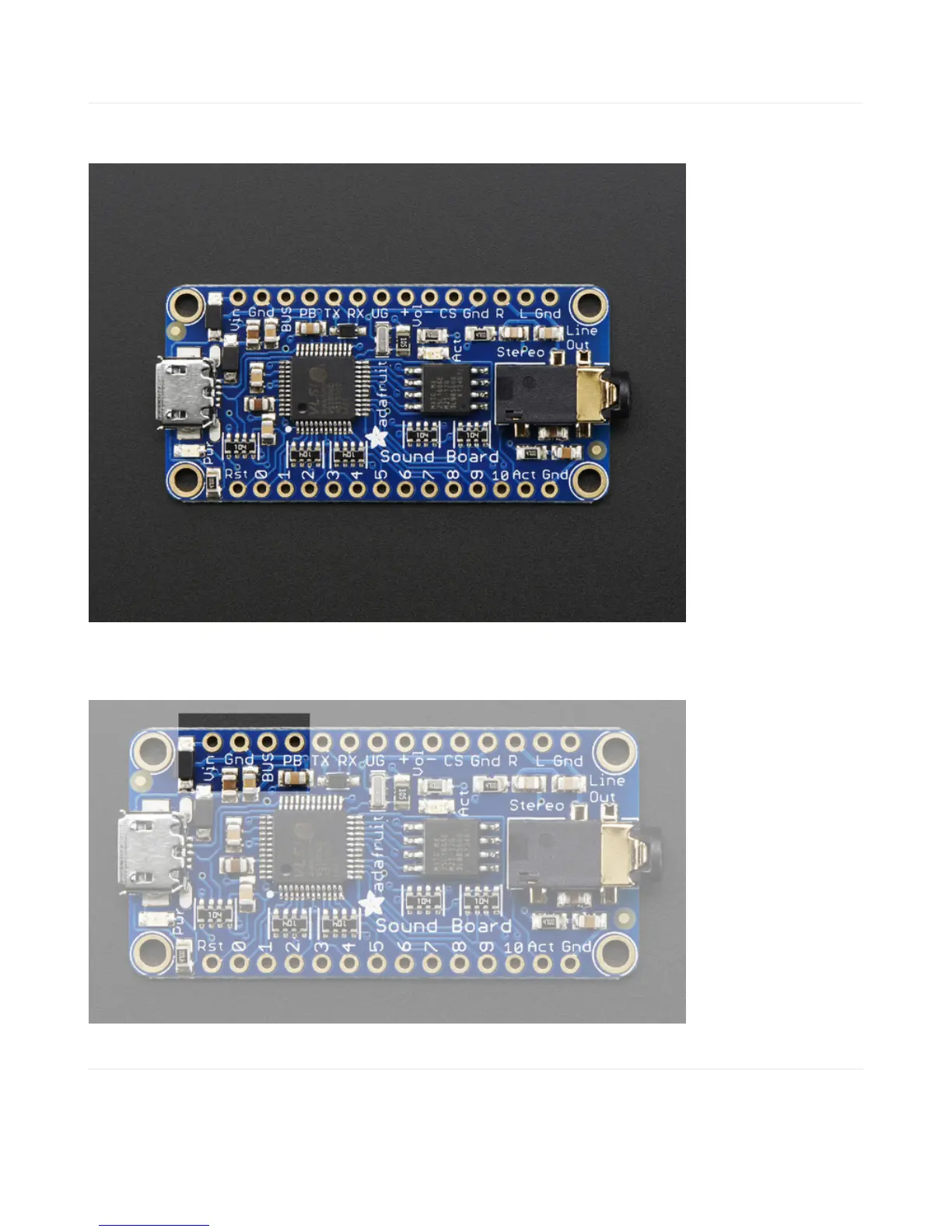

Pinouts
The top and bottom pin sets are the same for the headphone and amplifier out version of the sound board, we just use
the headphone version for the photos below
The Sound Board has a lot of pins, but we can group them into chunks, lets go through each kind of group in order to
understand all the stuff you can do.
Power Pins
There's a couple power pins in the top. This is what you'll use to power the Sound Board in your project.
© Adafruit Industries https://learn.adafruit.com/adafruit-audio-fx-sound-board Page 12 of 45
