you can store up to 15 minutes of quality compressed audio. Double that if you go with mono instead of stereo
Built in Mass Storage USB - Plug any micro USB cable into the Sound Board and your computer, you can drag
and drop your files right on as if it were a USB key
Compressed or Uncompressed audio - Go with compressed Ogg Vorbis files for longer audio files, or
uncompressed WAV files
High Quality Sound - You want 44.1KHz 16 bit stereo? Not a problem! The decoding hardware can handle any
bit/sample rate and mono or stereo
11 Triggers - Connect up to 11 buttons or switches, each one can trigger audio files to play
Stereo line out - There's a breakout for both left and right channels, at line level, so you can always hook up to
any kind of stereo or powered speaker
Five different trigger effects - by changing the name of the files, you can create five different types of triggers
which will cover a large range of projects
without
any programming

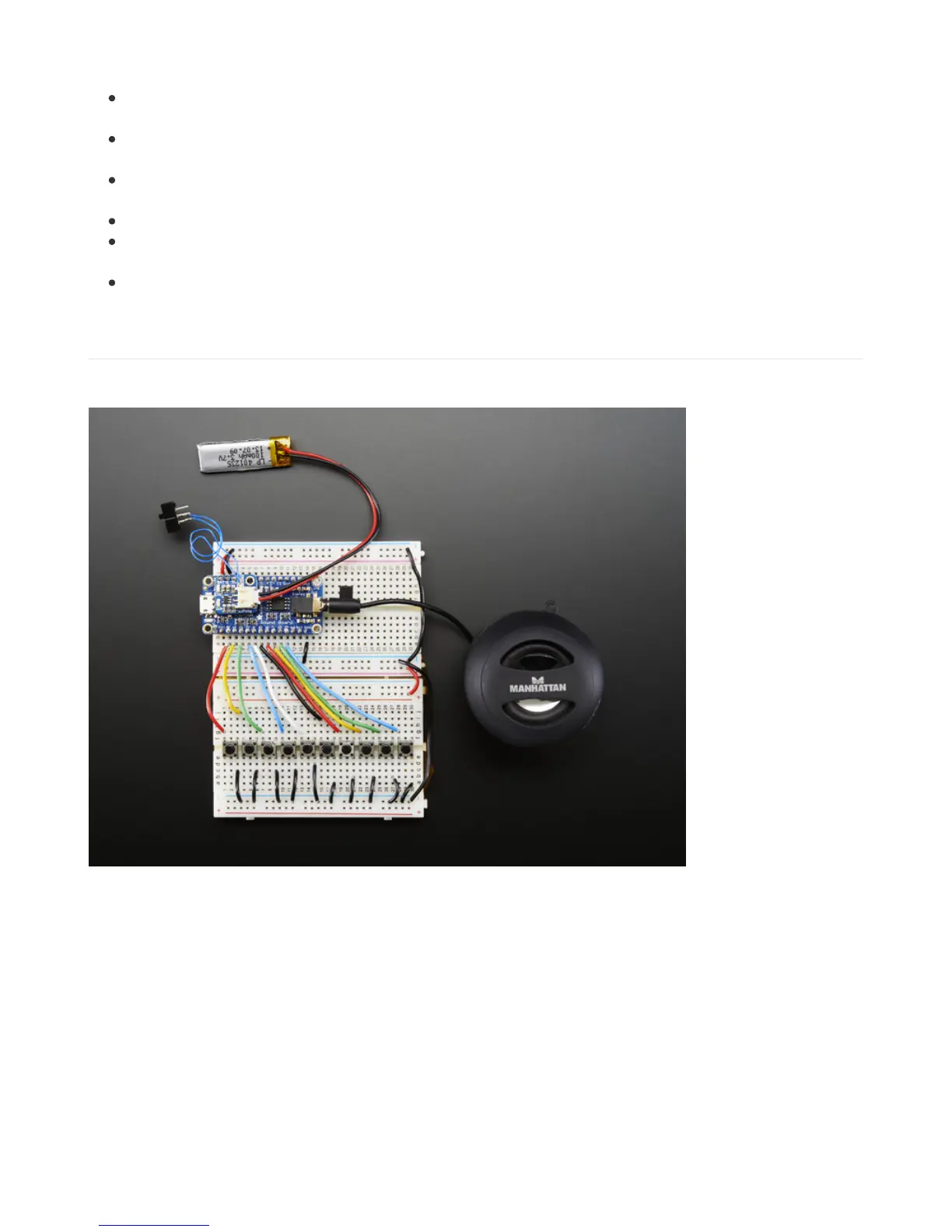

Amplifier or Headphone out
We have two versions, one with a headphone jack so you can connect to a stereo or powered speaker set
And a version with built in class D stereo amplifier, you can have 2 x 2.2W of output audio power, driving 4 or 8 ohm
speakers
© Adafruit Industries https://learn.adafruit.com/adafruit-audio-fx-sound-board Page 6 of 45
