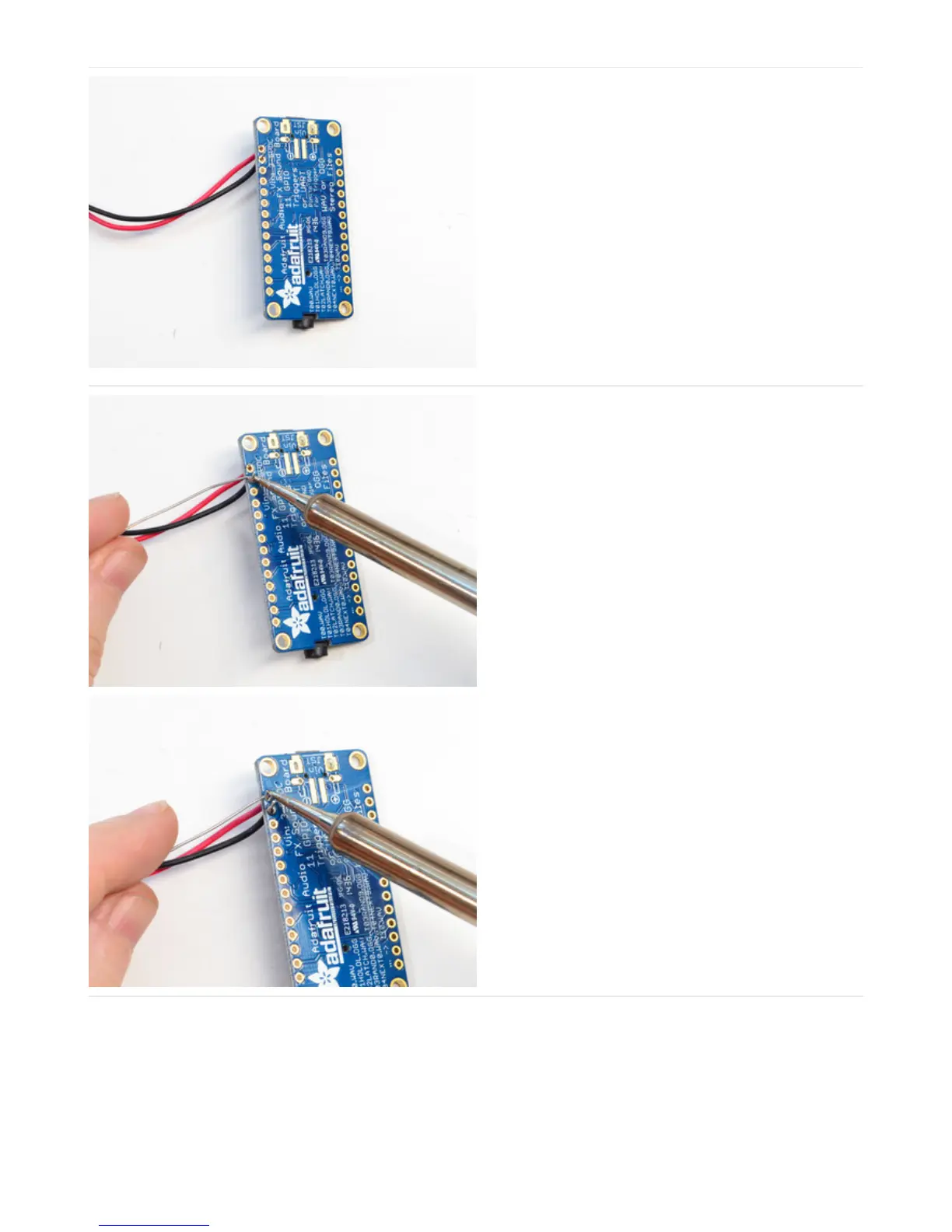

For most battery packs the red wire is the positive wire,

connect that to Vin. The black wire is ground, connect

that to GND.

Solder both wires securely. You cannot just twist the

wires into place!
