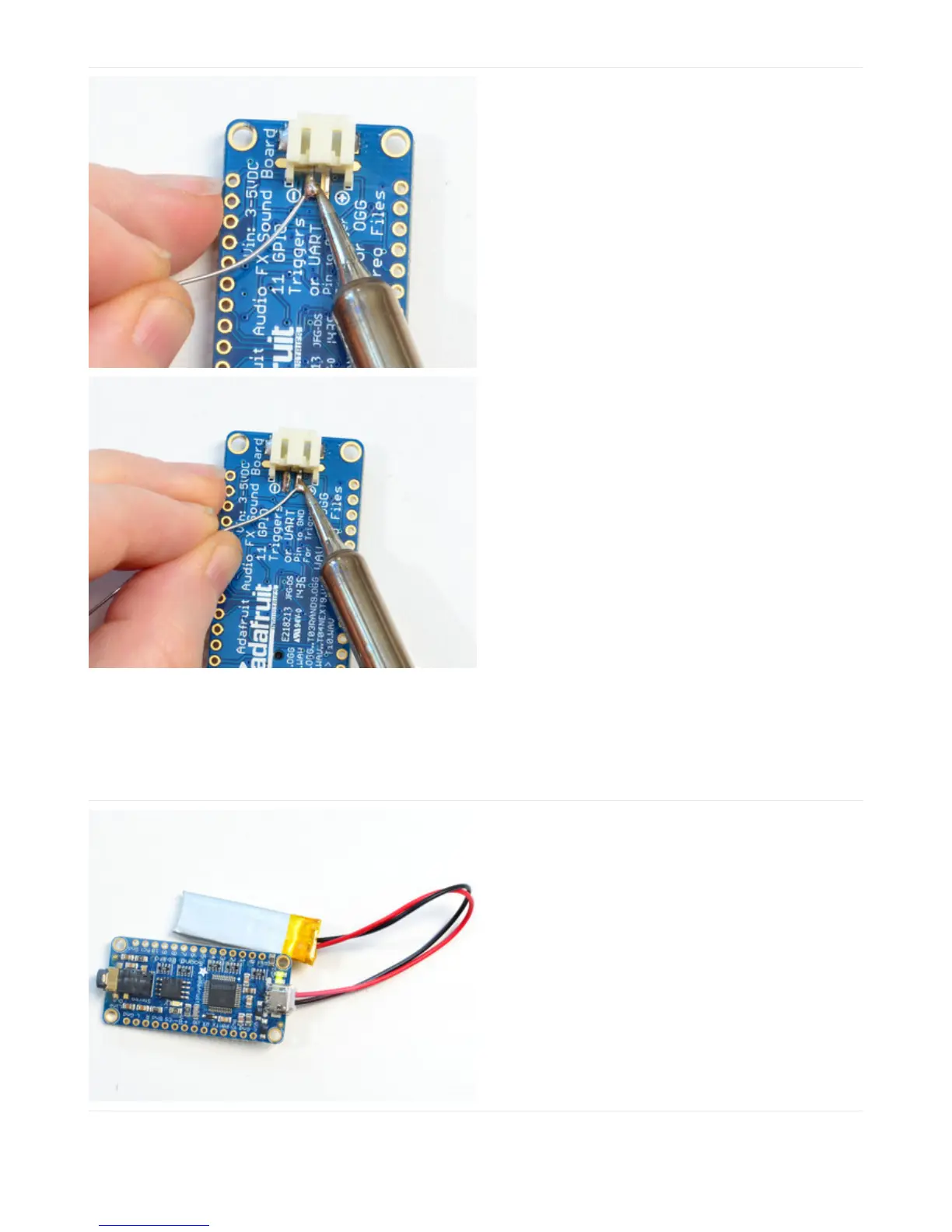

Solder all four pads - two mechanicals on the side, and
two power coming out the end.
Plug in your battery and look for the green light!
© Adafruit Industries https://learn.adafruit.com/adafruit-audio-fx-sound-board Page 22 of 45
