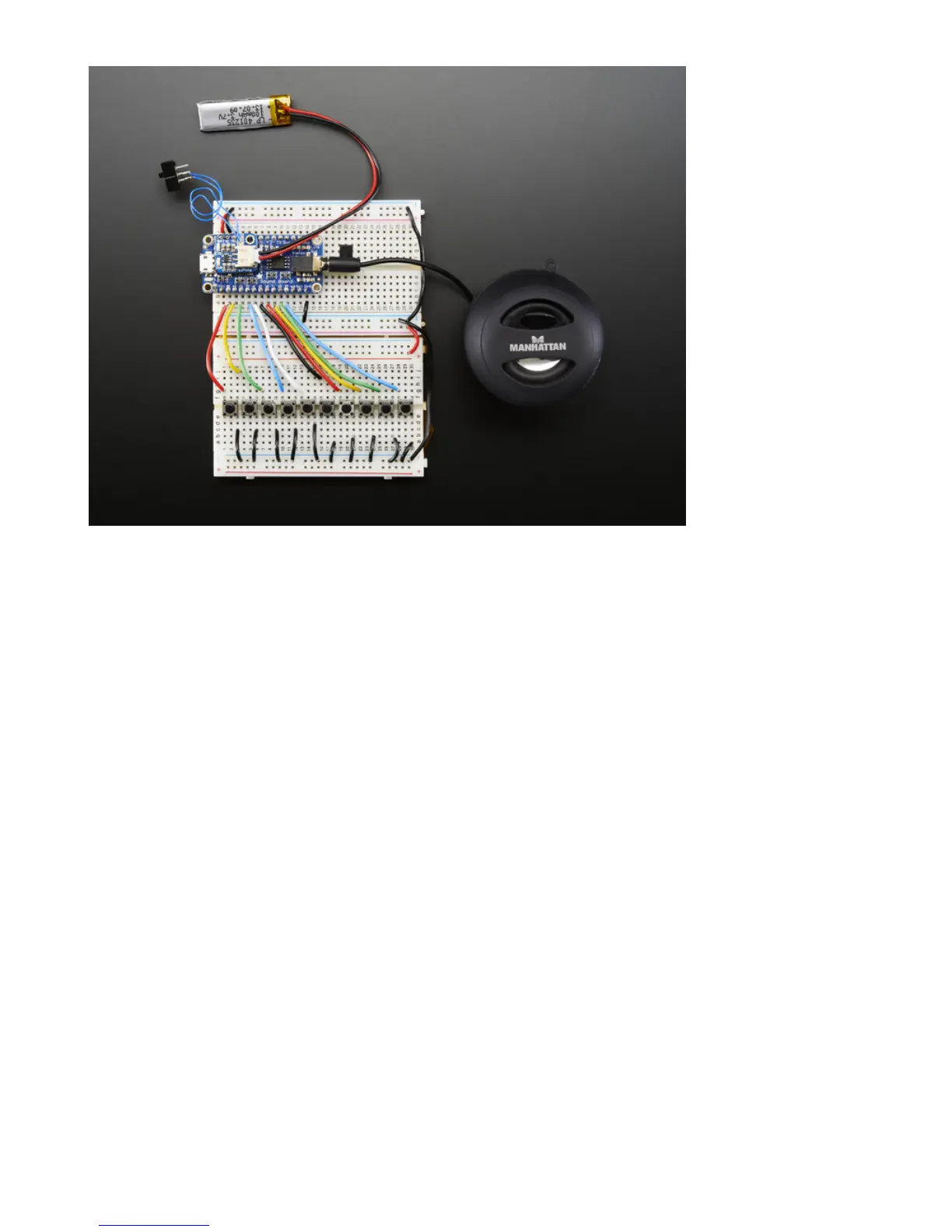

You can see each button connects to the trigger pin, and then the other side to ground. For this demo I'm using the

Lipoly backpack but you can power any other way. When buttons are pressed, the audio files on the board get

triggered!
