Adafruit Audio FX

To Next Page

To Previous Page

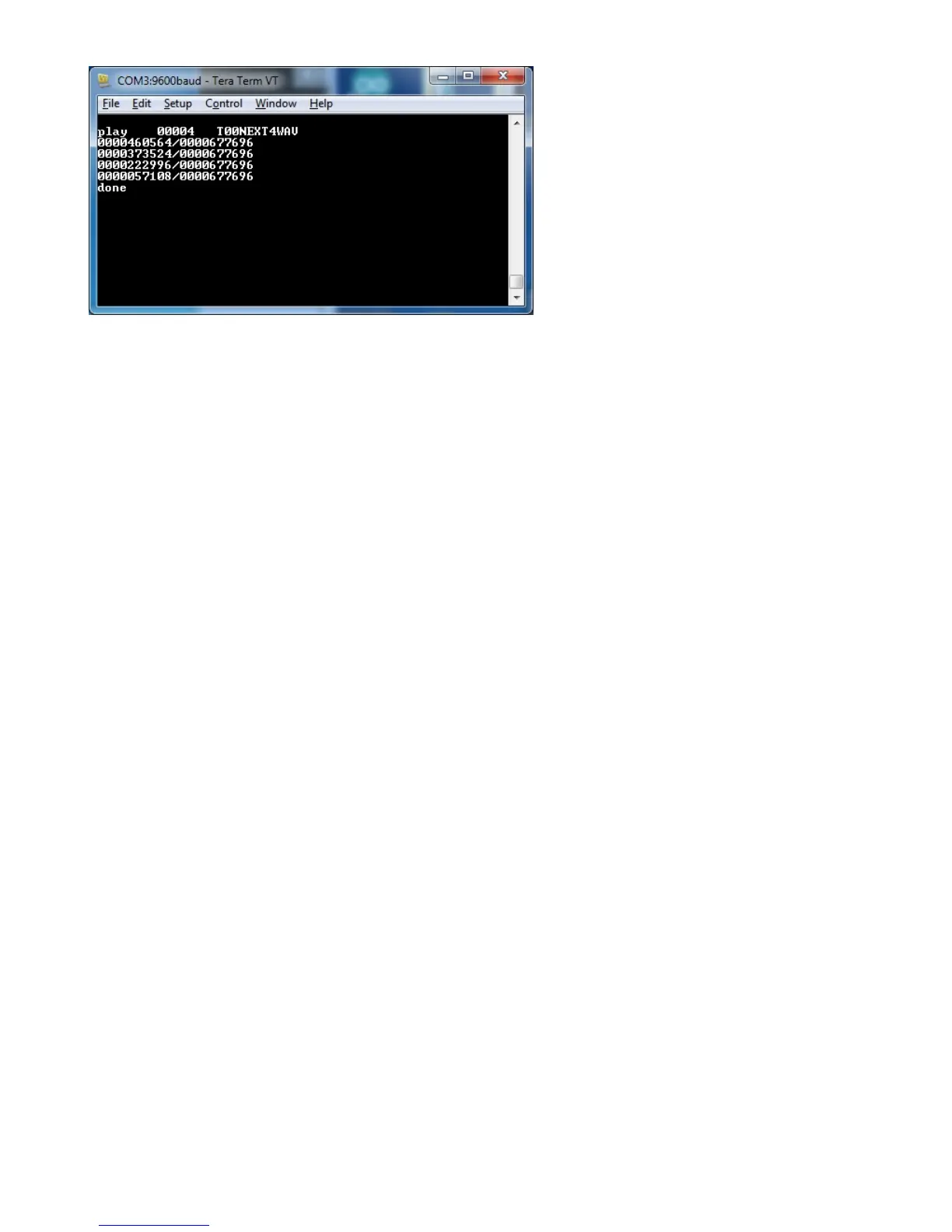

The sizes are reported in decimal bytes, 10 digits long seperated by a /

The first number is

remaining bytes

and the second number is total size.

Please note this is a blocking operation. Doing it too much/fast can cause your audio to stutter!
