Adept Lynx Platform User's Guide, Rev D
Page 27 of 126
Chapter 2: Setup

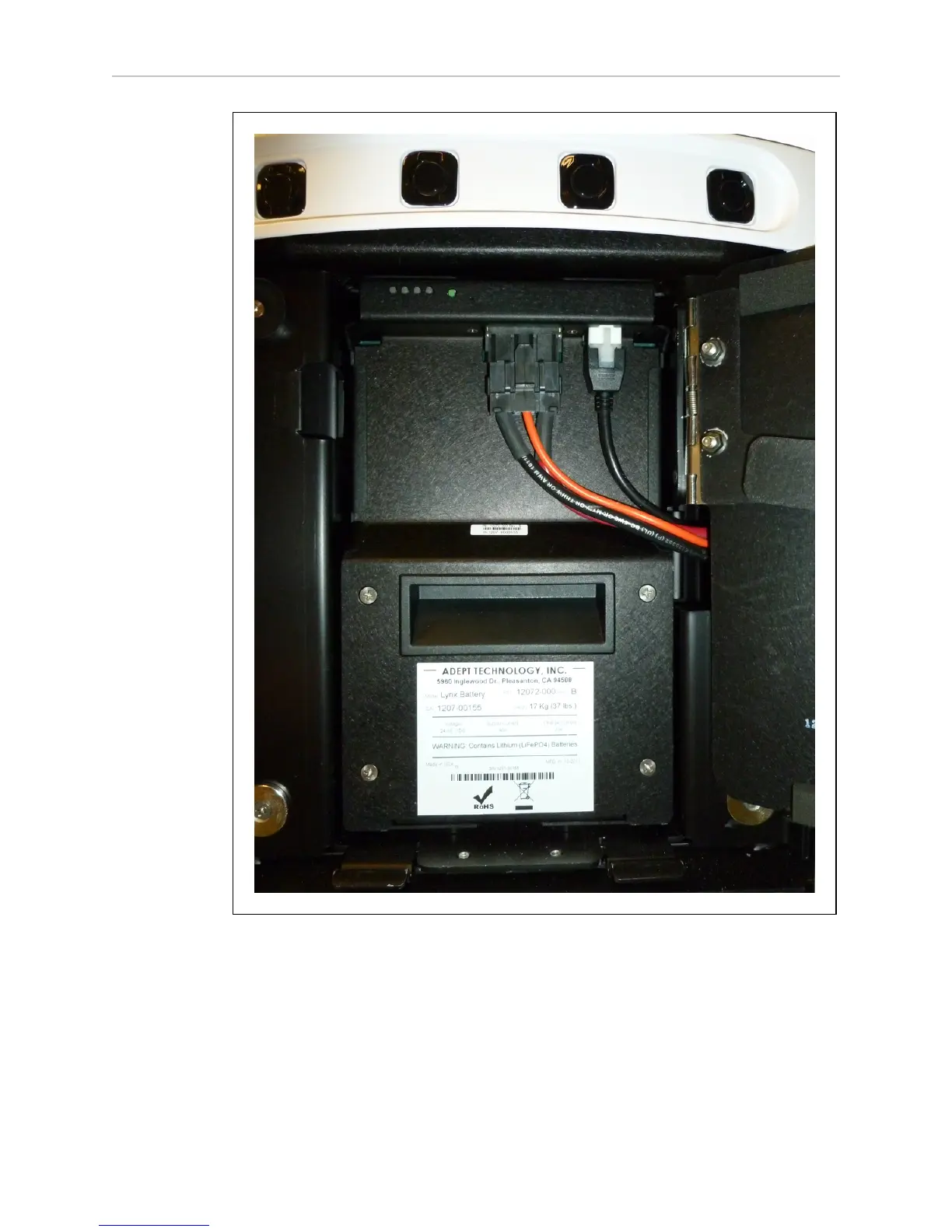

Figure 2-4. Battery Compartment, Connectors
3.
Lift and slide the new battery into the platform body.
The battery weighs 20 kg (44 lbs).
There are recesses at the front and the back of the battery, to aid in lifting it.
