Chapter 2: Setup

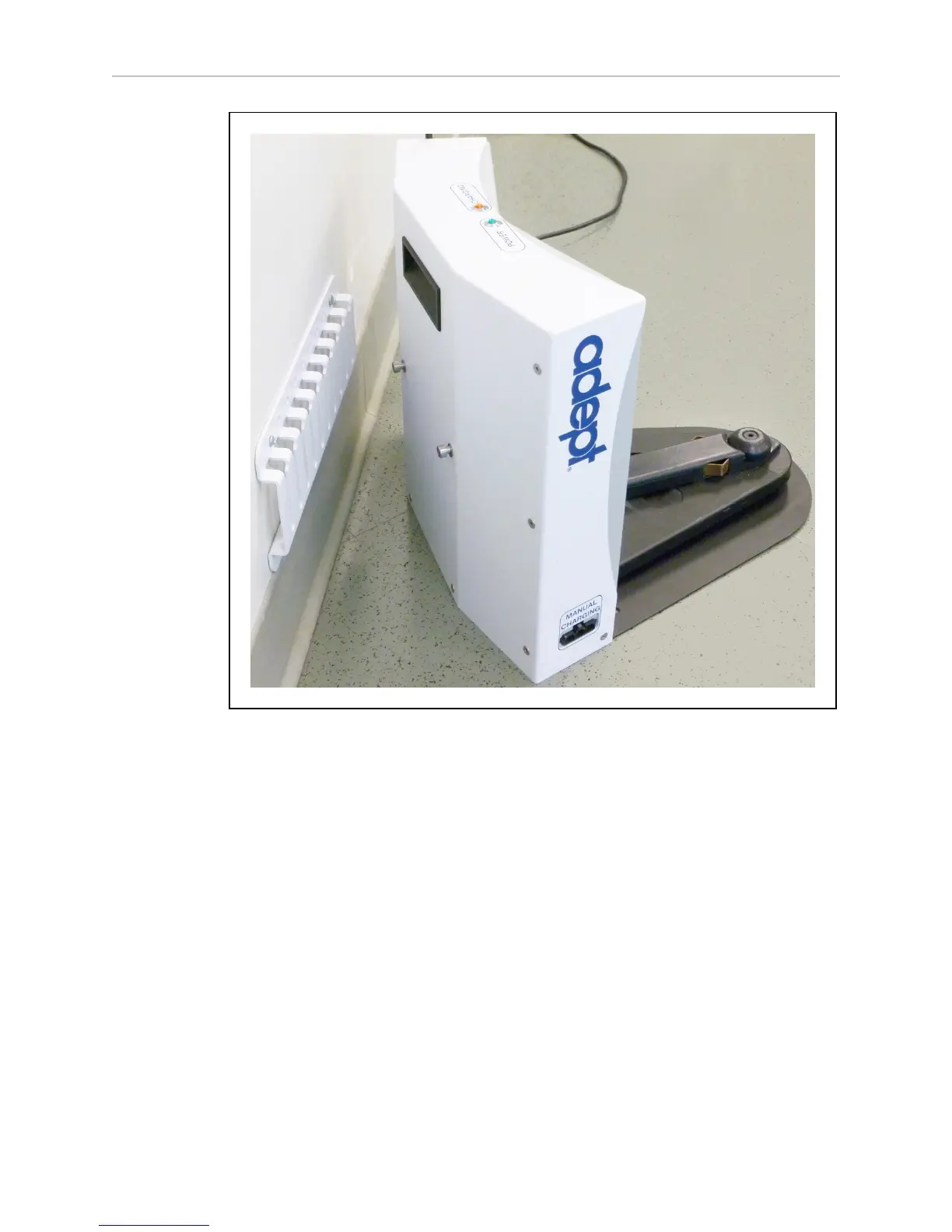

Figure 2-9. Rear View of Docking Station with Wall Bracket
3.
Lower the docking station down, so the two bolts on the back of the docking station
slide into the bracket, to secure the docking station to the wall.
Floor-mount, without Floor Plate
Screw the base of the docking station directly to the floor, using three user-supplied screws. For
dimensions of the available holes in the base, refer to Figure 2-8. Adept recommends M5 self-
tapping or M4 sheet rock screwsfor this.
Floor-mount, with Floor Plate
This mounting method uses the floor plate. The floor plate is not shipped attached to the dock-
ing station, so you must attach it for this type of mount. It will be in the crate with the plat-
form, right behind the docking station.
Attaching the Floor Plate
Refer to the following figures.
