Chapter 8: Maintenance
Refer to the following two figures.

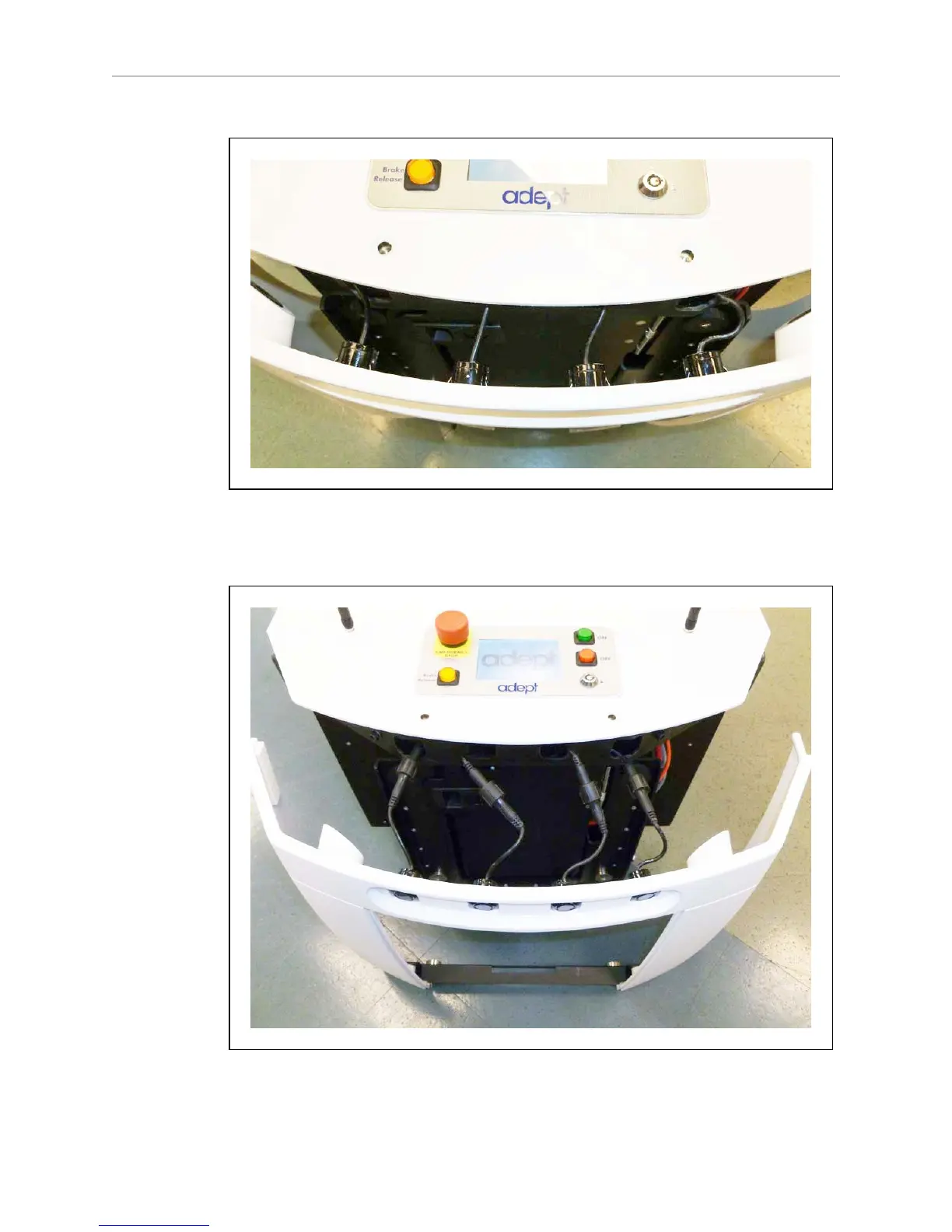

Figure 8-2. Sonar Leads, with Connectors Still in Chassis
3.
Unscrew all four sonar connectors.
Ensure that both sides of all connectors are labeled, and match. If not, label them.
Figure 8-3. Sonar Connectors, with Connectors Exposed
