7. Terminals and wiring

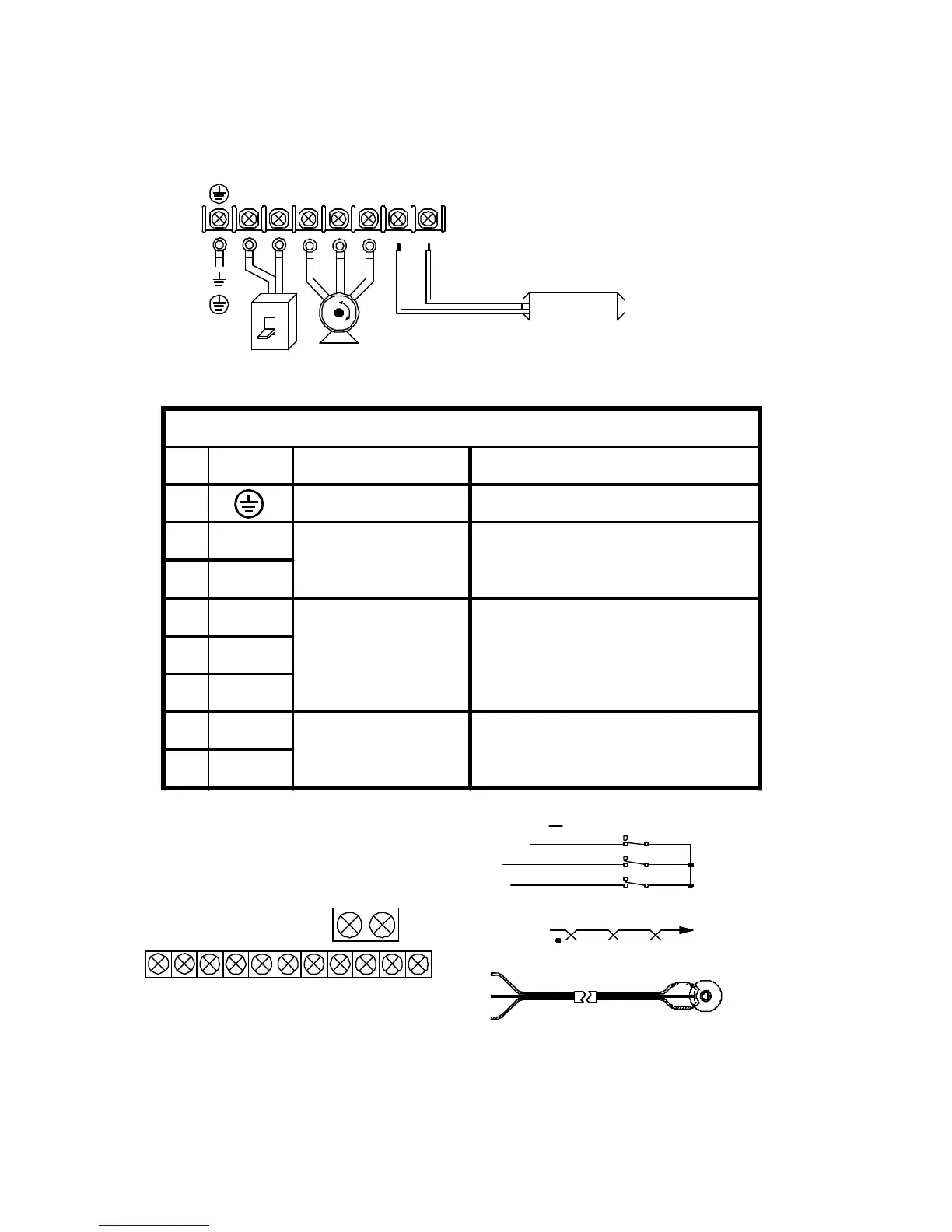

7-1 Main power circuit terminals
7-2 Control terminals
17
L1 L2 U V W PRP
Motor
Power
Ground
External braking resistor
Refer to the appendix
Source
OUT
SPEED
H M A/BL C CW
CF
CCW EXG 24V
MB+
MB-
+24 EXTERNAL POWER INPUT
SPEED SELECTION
CW. Input
CCW. Input
SPEED OUTPUT
OFF
ON
ON
OFF
OFF
ON
11 INPUT COM
6 CF
7 CW
8 CCW
4 A/B
9 SPEED OUT
5 C
1 H
2 M
3 L
EXG
3
2
1 3
2
1
SPEED KNOB(OPTIONS)
EXG
EXG
Main circuit terminal
No. Symbol Terminal name Description
1 Ground Ground (Earth) Terminal
2 L1
Connect power
supply
(L1, L2) Single Phase
3 L2
4 U
Driver output
Terminal connecting to motor
U(red), V(white), W(black)
wrong UVW connection can
damage motor driver
5 V
6 W
7 P
Dynamic brake
resistor
See appendix for braking
resistor selection
8 PR
