Adleepower BL2-104 - Jumper Settings and Connectors

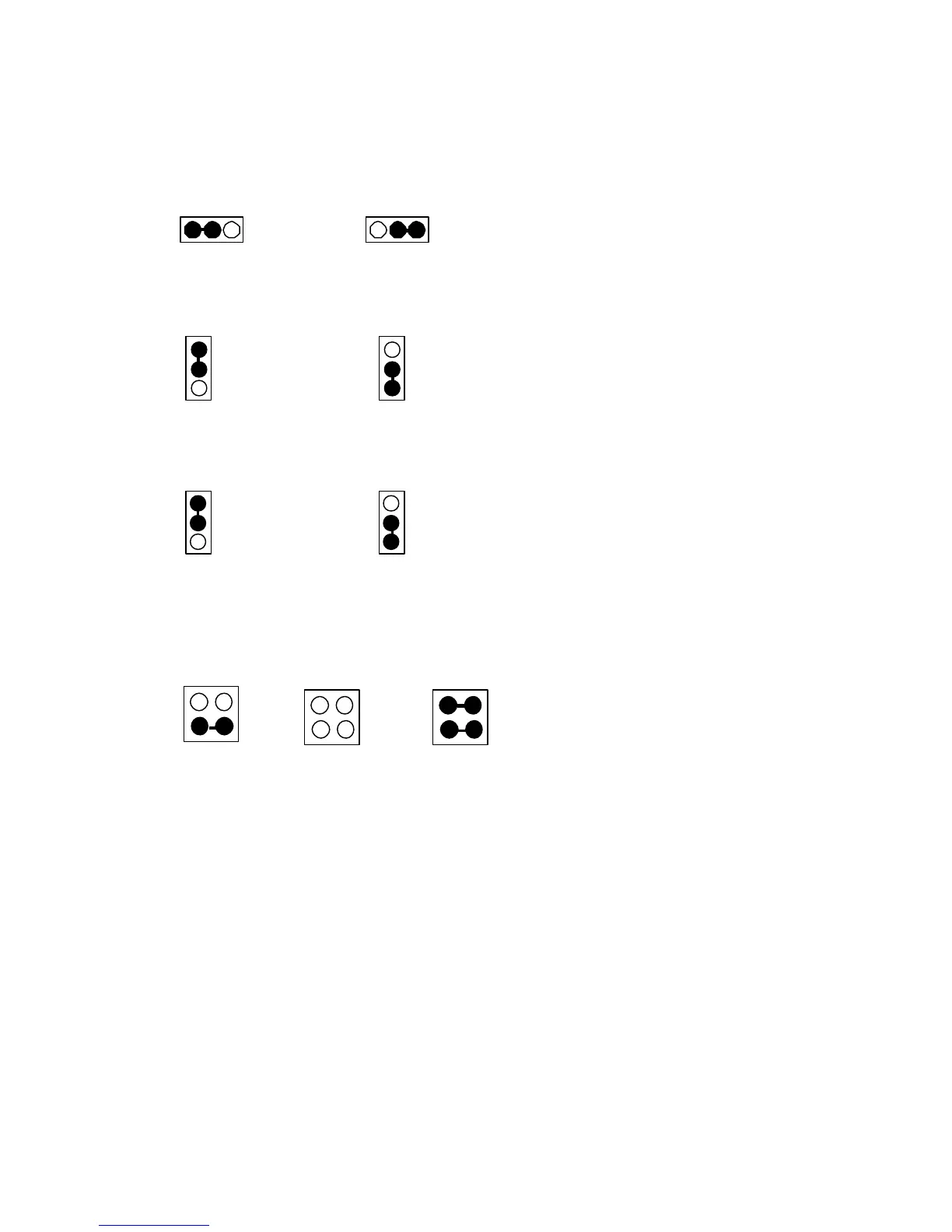

7-4 Jumpers
a. S161 for internal / external reference voltage input
(Default value is internal reference voltage input)
b. J5 for panel VR or F306 VR(Default value is panel VR)
c. J4 for fault alarm A (normal open) or B (normal close)
(Default value is fault alarm A.
d. J6 for H M L input signal selection
(Default value is 0~10V)
Internal
External
Panel VR
19
F306 VR
Fault alarm A Fault alarm B
0~5V
0~10V 4~20mA
