Adleepower BL2-104 - Wiring Diagrams and Equipment

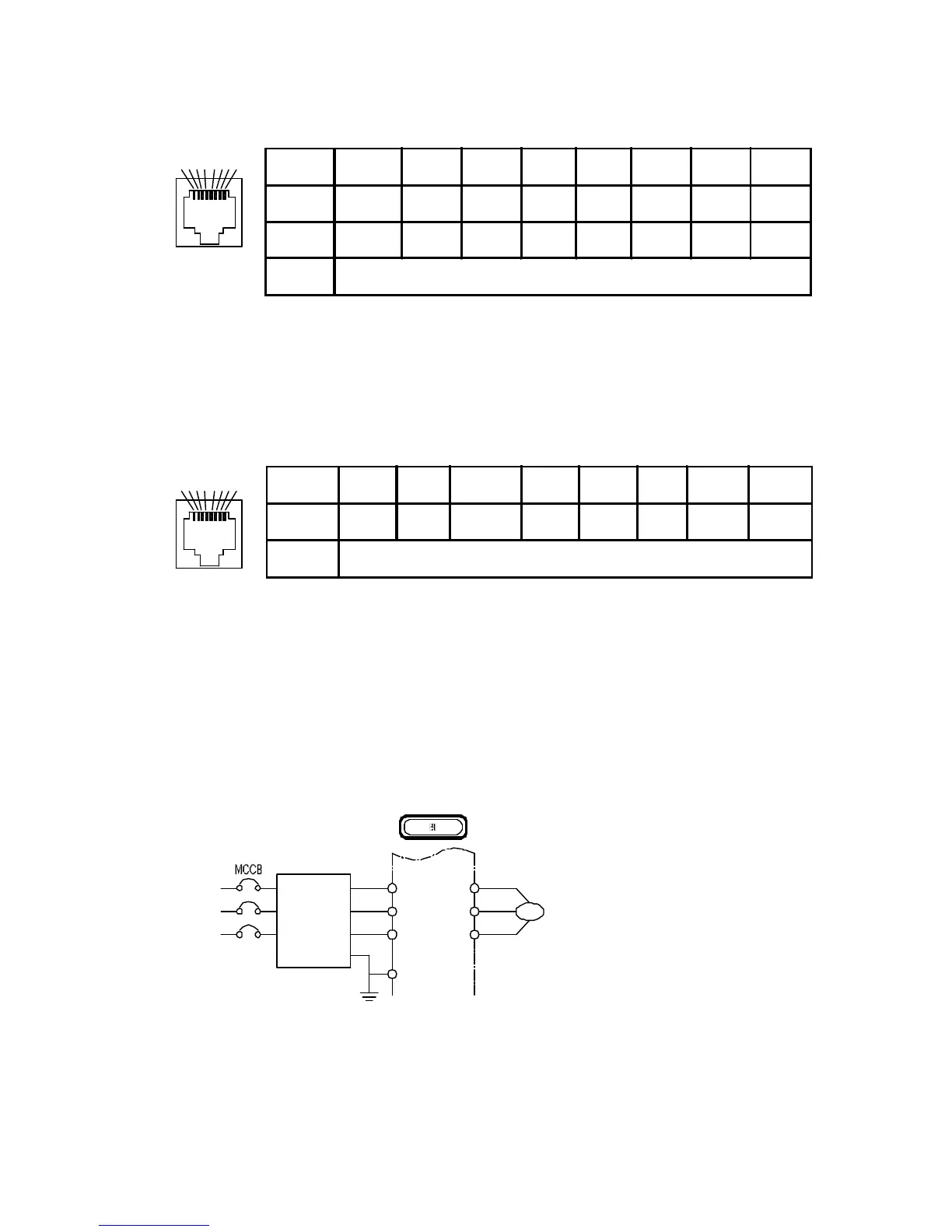

7-5 Hall sensor connector
7-6 RS485 connector
7-7 Wiring
7-7-1 Wiring for main circuit
8765 4321
8765 4321
This connector is for both F306 and RS485. Set
CD02 for selection.
※
20
L1
L2
E
U
V
W
Filter
IM
L3
NO 8 7 6 5 4 3 2 1
Color Orange Purple Brown Yellow Green Blue Red Black
Symbol GND VCC HC HB HA TH2 TH1
Connect to Hall sensor / NTC
NO 8 7 6 5 4 3 2 1
Symbol GND VCC GND A RFA0 B 3.3V
Connect to F306 or RS485
